Product Overview

Bar Feeder Installation & Tooling Kits

The Haas 12’ (3.6m) Bar Feeder Installation Kits are required when installing or changing to a different work size envelope for the new Haas Bar Feeder 12. Available in 6 different size ranges, each kit is engineered to match a specific work size envelope to ensure optimal bar support, feed stability, and production performance.


Each Installation Kit provides essential workholding components necessary to properly configure the Haas Bar Feeder 12 for a new material work size envelope. Each work size envelope is outlined in the Installation Kit chart provided. Each Installation kit includes a perspective sized Guide Channel set, Push Rod set, and Front tube.


The Haas 12’ (3.6m) Tooling Kits are a quick and easy way to streamline production of a desired work size envelope as well as configure your machine; the Haas 12’ Tooling Kit is a all-in-one kits which includes the corresponding sized Haas 12’ Bar Feeder Installation Kits as well as necessary tooling to streamline production for a respective Haas machine.


Each Tooling Kit provides all essential workholding components necessary to streamline production of a work size envelope; this includes the Installation kit, various-sized Collet Pushers, Shorten Liner Adapter and Spindle Liner for respective work size envelope and Haas machine.


Lathe Barfeeder Tooling Kit Machine Compatibility

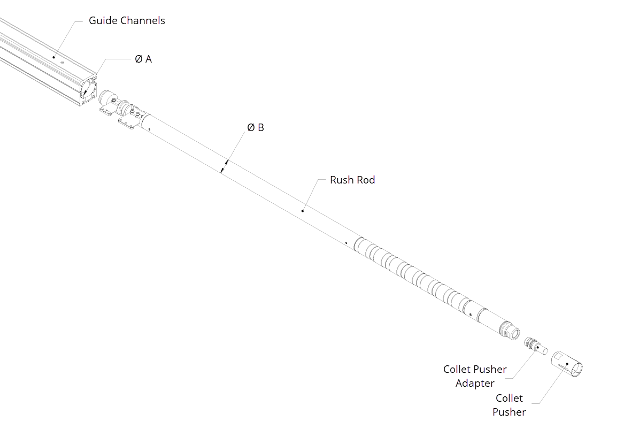

Installation Kit Size Guide

Part Number
Bar Feeder Installation Kit Size
Bar Stock Size
Guide Channel ØA
Push Rod ØB
Front Tube Ø
05-09150.787" \ 20.0mm0.375" to 0.625" \ 10.0mm to 16.0mm0.826" \ 21.0mm0.787" \ 20.0mm0.846" \ 21.5mm
05-09161.024" \ 26.0mm0.75" to 0.825" \ 18.0mm to 20.0mm1.063" \ 27.0mm1.024" \ 26.0mm1.083" \ 27.5mm
05-09171.339" \ 34.0mm1.0" to 1.125" \ 25.0mm to 30.0mm1.377" \ 35.0mm1.339" \ 34.0mm1.004" \ 25.5mm
05-09181.496" \ 38.0mm1.25" to 1.375" \ 32.0mm to 35.0mm1.535 " \ 39.0mm1.496" \ 38.0mm1.555" \ 39.5mm
05-09191.772" \ 45.0mm1.5" to 1.625" \ 38.0mm to 40.0mm1.811" \ 46.0mm1.772" \ 45.0mm1.830" \ 45.5mm
05-09202.205" \ 56.0mm1.75" to 2.0" \ 45.0mm to 50.0mm2.244" \ 57.0mm2.204" \ 56.0mm2.264" \ 57.5mm

Machine Range

Part Number
Bar Feeder Installation Kit Size
Bar Stock Range
Part Desc.
Haas Machines
05-09150.787" \ 20.0mm0.375" to 0.625" \ 10.0mm to 16.0mm20MM\0.787" 12FT BF INSTALL KITST-10~30
05-09161.024" \ 26.0mm0.75" to 0.825" \ 18.0mm to 20.0mm26MM\1.024" 12FT BF INSTALL KITST-10~30
05-09171.339" \ 34.0mm1.0" to 1.125" \ 25.0mm to 30.0mm34MM\1.339" 12FT BF INSTALL KITST-10~30
05-09181.496" \ 38.0mm1.25" to 1.375" \ 32.0mm to 35.0mm38MM\1.496" 12FT BF INSTALL KITST-10~30
05-09191.772" \ 45.0mm1.5" to 1.625" \ 38.0mm to 40.0mm45MM\1.772" 12FT BF INSTALL KITST-15~30
05-09202.205" \ 56.0mm1.75" to 2.0" \ 45.0mm to 50.0mm56MM\2.205" 12FT BF INSTALL KITST-15~30

Run 12 Foot Bars on the New Haas Bar Feeder 12!

Bhop gives us the rundown on the new Haas Bar Feeder 12, which uses a hydrodynamic oil bath system to stabilize bars up to 12' long throughout the feeding process – delivering quieter operation, smoother feeding, and improved part finish.
