Comparative Measuring Gauges

When precision and accuracy are essential, comparative measuring gauges ensure quality and efficiency. Haas Tooling offers a wide and versatile range of all types of comparative gauges that allow for quick comparisons and measuring such as radii, angles, threads, small bores, and thicknesses. By providing a direct comparison between standards and measured parts, the need for complex calculations and multiple measurements is eliminated, streamlining inspections without compromising quality.

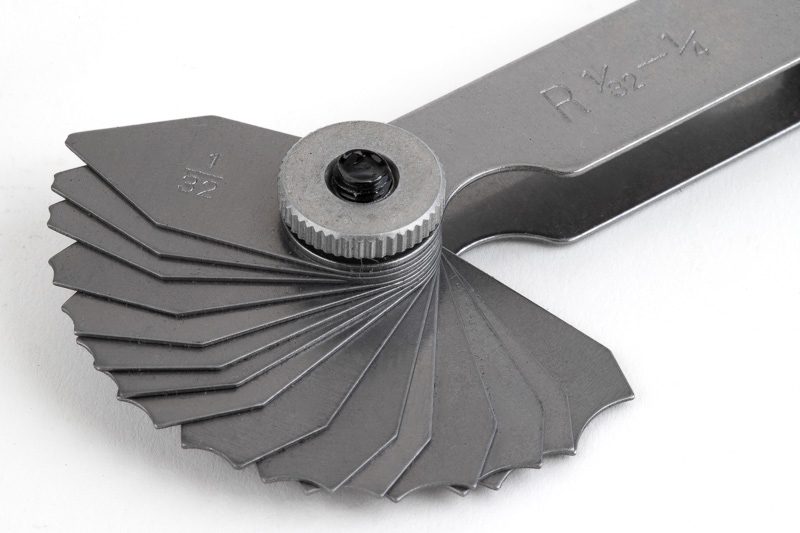

Radius Gauges



  • Inch (U.S. Only) and metric versions available
  • Verify the radius of curved or rounded features
  • Ensures accuracy in various applications like machining, woodworking, and metalworking
  • Both convex and concave blades
  • Radius size is noted on each blade

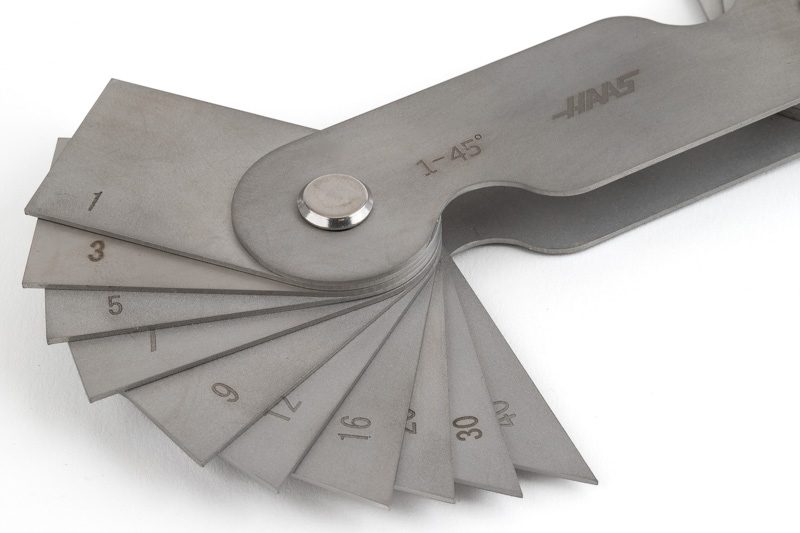

Angle Gauges



  • Used to measure, transfer, and replicate angles, allowing you to work with precision and maintain efficiency
  • Made from hardened stainless steel
  • Finely machined edges and beveled at various angles

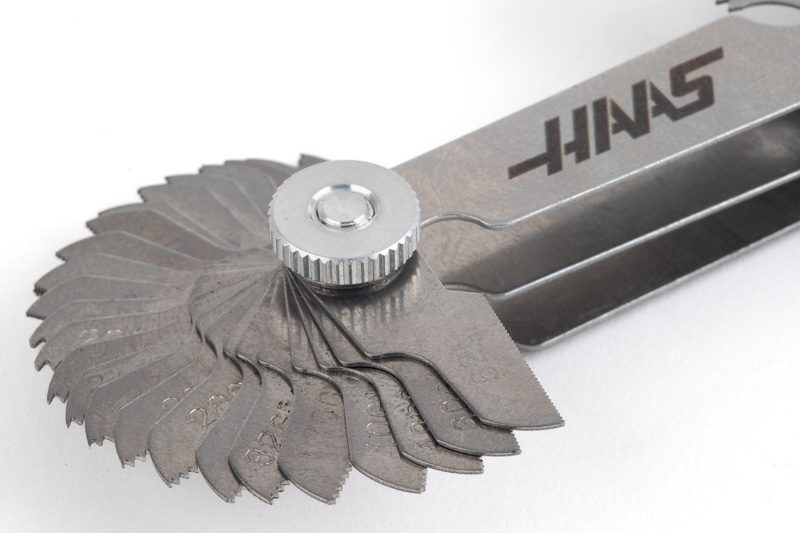

Thread Pitch Gauges



  • Quickly identify the pitch of threads on screws, bolts, and nuts, ensuring the compatibility of threaded components
  • precision ground and made of premium stainless steel blades
  • Thread pitch marked on each blade
  • Narrow-designed blades for additional clearance when measuring internal and external screw threads
  • Locking nut at each end helps secure blades

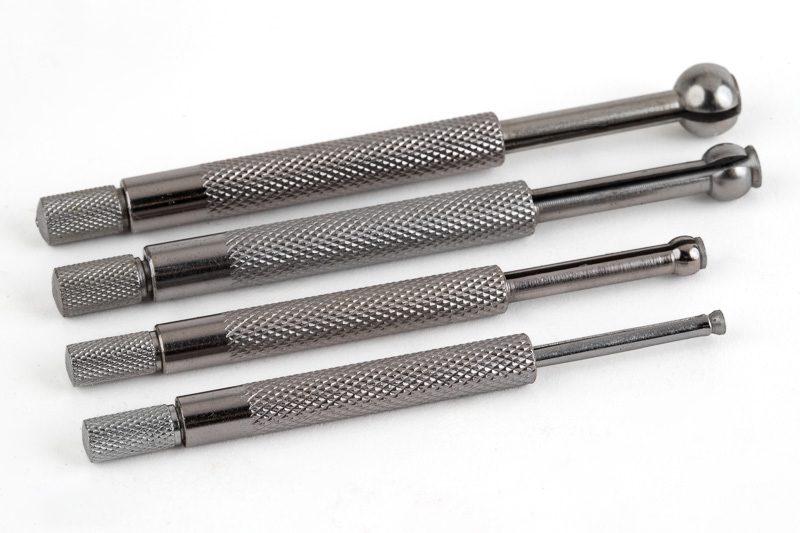

Small Bore Gauges



  • Designed to accurately measure the diameters of small holes, bores, and cylindrical recesses
  • Used with a micrometer to inspect small inside diameters
  • Hardened gauging surface for longer service life
  • Extra-long for gauging deep or shallow holes and slots

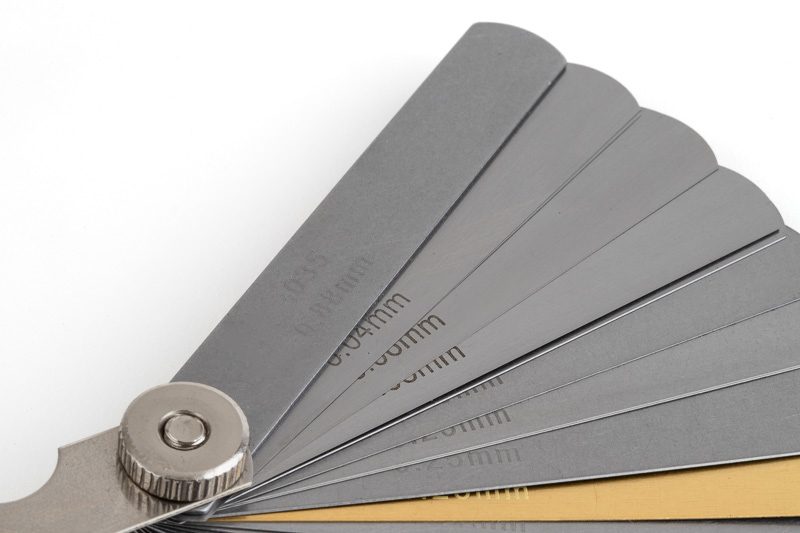

Feeler Gauge



  • Useful for measuring small gaps, clearances, and tolerances in mechanical systems and components
  • Great for manufacturing, automotive, precision machinery, metal parts, and other applications
  • Made to DIN 2275 standard
  • Size is etched on each blade

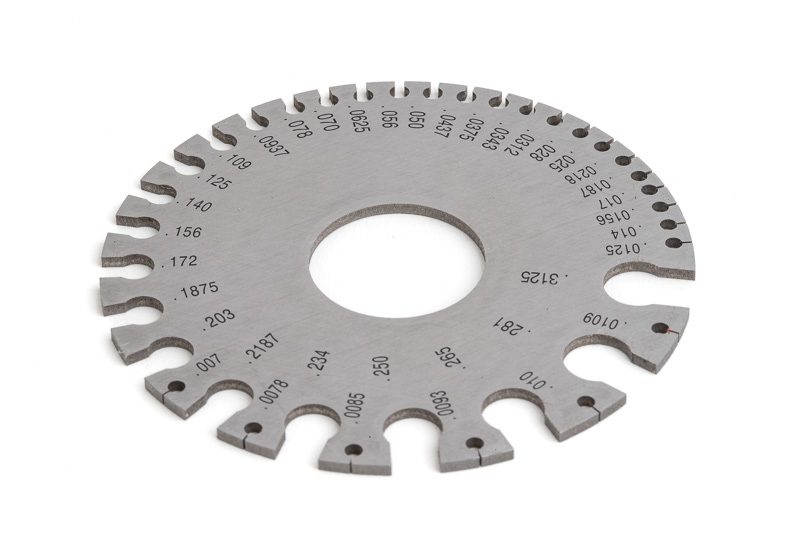

Wire & Sheet Metal Gauges



  • Designed for measuring wire, sheet metal, and other thin materials
  • American standard 0-36 gauge
  • Features a matte finish with sheet metal gauge values on one side and decimal equivalents on the other side

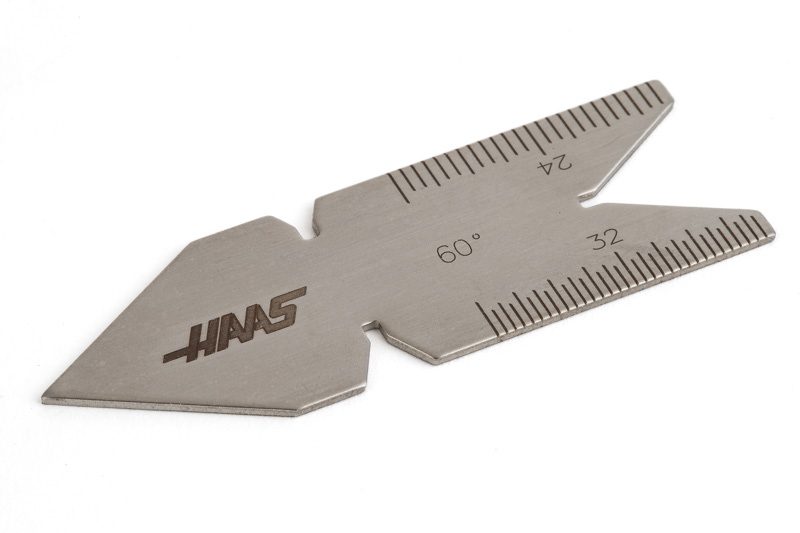

Thread Center Gauge

  • Used to check tool angles while machining threads on a lathe
  • Made from stainless steel
  • Available in Whitworth 55°, metric 60°, and unified 60°

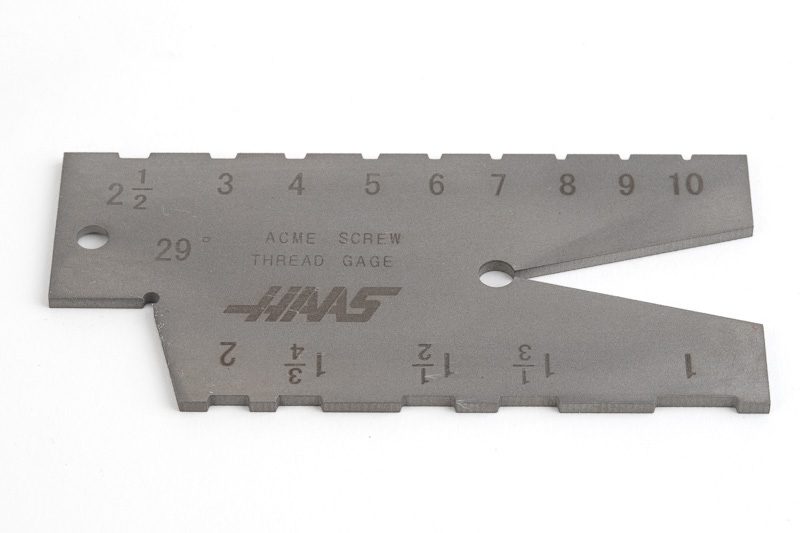

Acme Screw Thread Gauge



  • Used as the standard when measuring Acme threads
  • Hardened and precision ground angles and edges
  • Acme thread inclination: 14-1/2 degree (29-degree inclined angle)

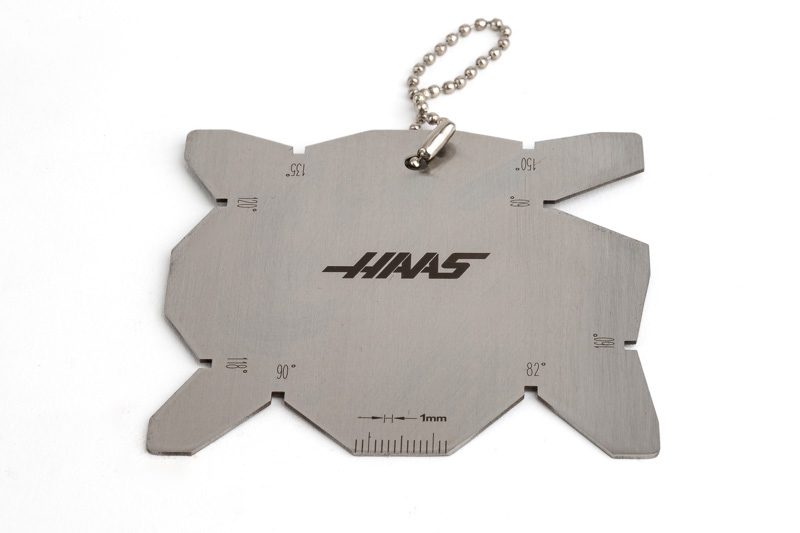

Drill Angle Gauge



  • Designed to measure the angle of a cutter or drill
  • Gauges are able to measure 8 different angles - 60°, 82°, 90°, 118°, 130,° 135°,
    150°, 160°
