Product Overview

Test Indicators Overview

Get a complete look at the dial test indicator lineup from Haas in this video. Dial test indicators are offered in various ranges for multiple applications. Watch as John takes you through the fundamentals of test indicators.

Test Indicators Details

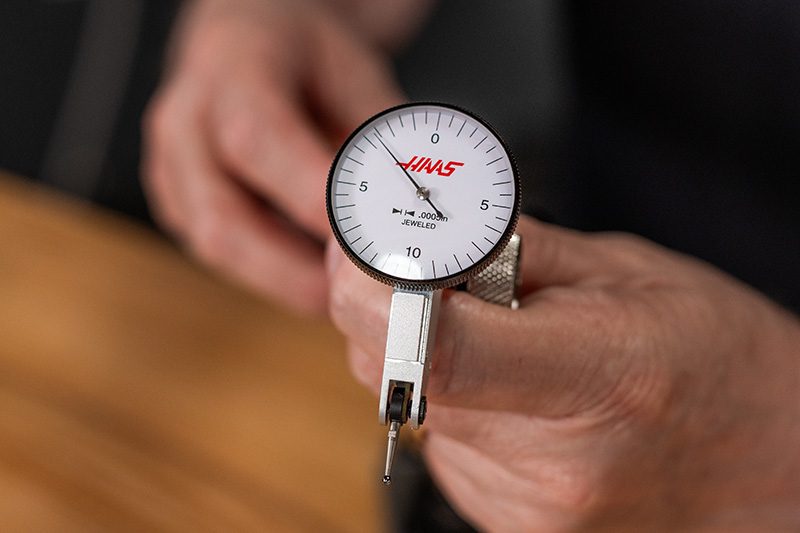

Dial Test Indicators are a valuable piece of measuring equipment in any shop. These indicators are meant for precise comparisons on surfaces, machines, and part tolerance, or to check the runout on cutting tools. Haas dial test indicators have a magnitude of applications and are especially helpful during setup to ensure that a vise is square or to indicate other parts.



  • Offered in inch (U.S. only) and metric versions
  • 1mm, 2mm, 3mm tip diameters offered
  • Available with ruby tips
  • Long stylus options for tight and hard-to-reach areas
  • Different dial position options for different viewing angles
  • Large dial options available
  • 2x range options for extended travel
  • Metric versions manufactured to DIN2270 standard
  • Inch versions manufactured to ASME B89.1.10M-2001 standard

Indicator Videos

Dial Drop Indicators

Explore shockproof dial drop indicators with jeweled bearings, inch and metric measuring ranges, lug-back mounting, and matched calibration certificates.

Large Measuring Range Indicators

Compare large-range travel indicators for direct dimensional measurements, including inch and metric options, jeweled bearings, and lug-back mounting.

Workhorse Dial Indicators

Compare Haas Workhorse dial indicators and digital travel indicators, with a look at their measuring ranges, graduations, and digital inch-to-metric conversion.

Dial Test Indicators

Explore Haas dial test indicator styles, measuring ranges, and resolutions, along with shockproof gearing, jeweled bearings, and calibration certificates.

Twice-Range Test Indicators

See how a secondary dial tracks the extended travel of twice-range test indicators, and compare horizontal, vertical, inch, and metric versions.

Indicator Kits

Explore test indicator kits with universal holders and height-gauge mounting bars, plus bidirectional indicator kits supplied with a magnetic base.

Getting Accurate Test Indicator Readings

In this video John Nelson takes a close look at properly setting up your test indicator to take the most precise readings possible. This is an excerpt from our long form "Indicator How-to" video where John covers taking measurements with travel and test indicators in a variety of setup scenarios.

Travel & Test Indicator Differences

Compare the measuring range and needle movement of travel indicators, standard test indicators, and twice-range test indicators.

Properly Mounting a Travel Indicator

Learn to choose stem or lug-back mounting, check the contact tip, and align a travel indicator with the measurement axis to avoid cosine error.

Set a Travel Indicator to Measure a Dimension

Learn to set a travel indicator with gauge blocks, check repeatability, position tolerance markers, and measure a part against nominal dimensions.
