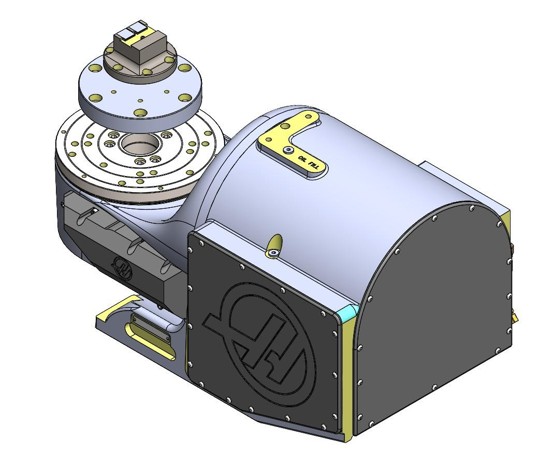

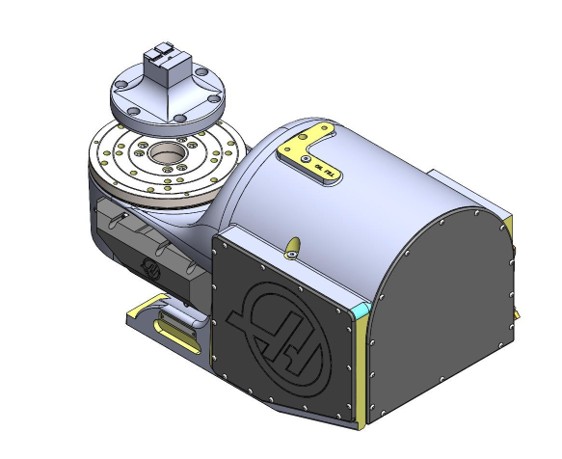

Dovetail fixtures provide one of the most secure, repeatable, and compact work holding solutions, especially for 4 and 5-axis machining.

Minimal Clamping Material

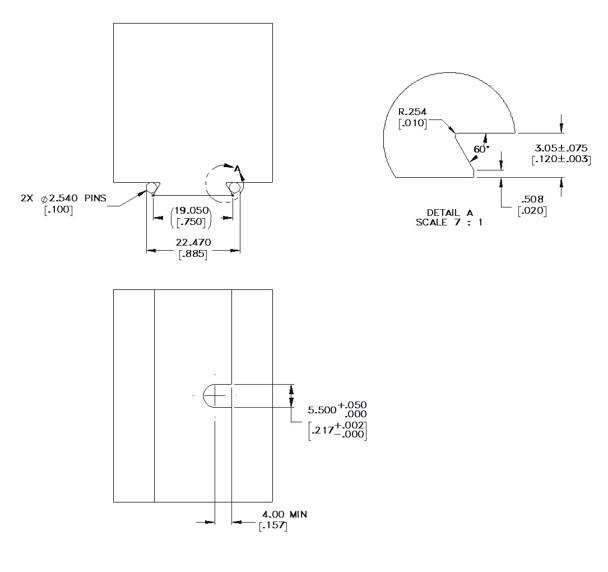

These fixtures require less than 1/8” [3mm] of material to hold on to

Rigid and Stable

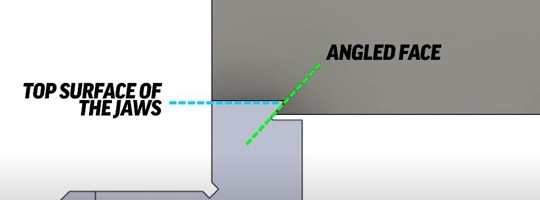

The 60-degree dovetail prevents lifting under cutting forces and is stronger than a 45-degree dovetail. The fixture is made from 4140 and built to last

Excellent Repeatability

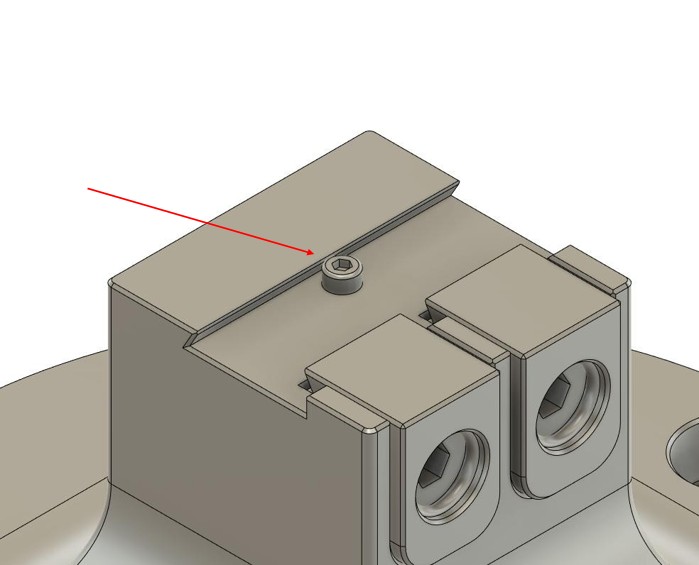

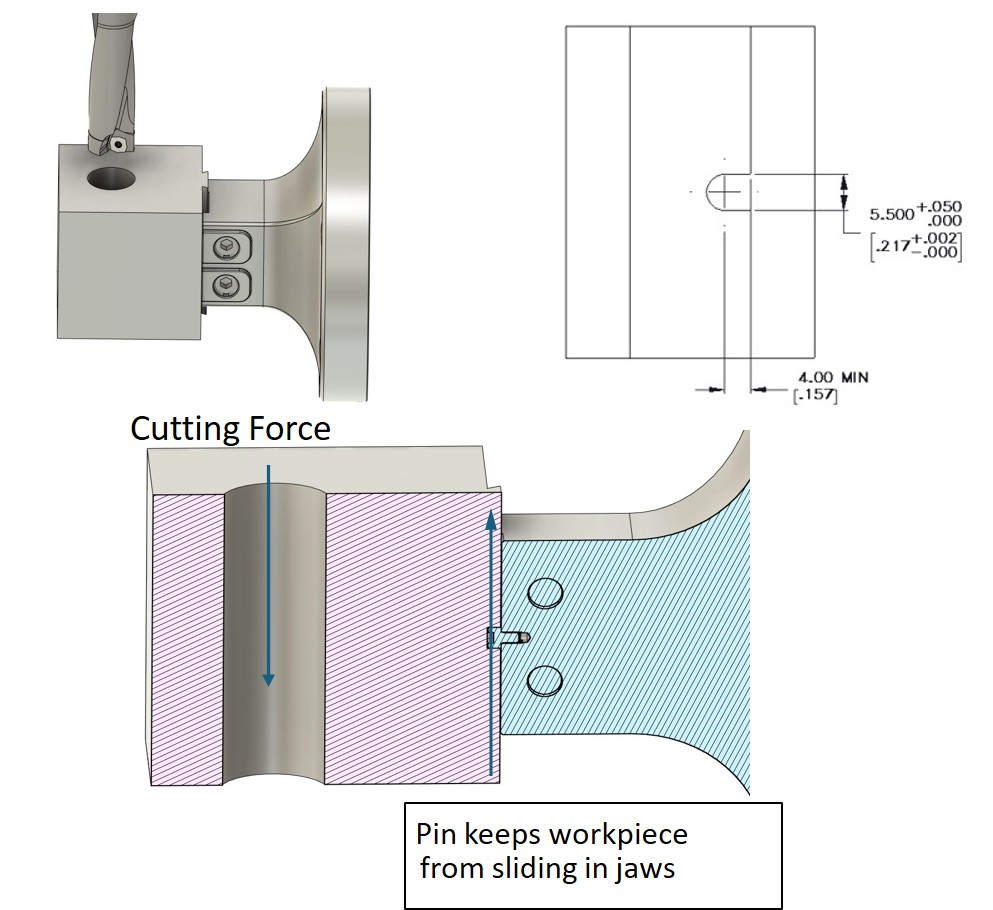

The locating pin locates raw material perfectly each time, without the need for a bulky external part stop. Clamping forces pull the workpiece into the fixture and eliminate effects like jaw lift or deflection

Access to 5 sides
Compact design provides more tool clearance to reach more features of a part in one set up
