Product Overview
Drop Indicators Overview
Get a complete look at the drop indicator lineup from Haas in this video. Drop indicators are offered in various ranges for multiple applications. Watch as John takes you through the fundamentals of drop indicators.

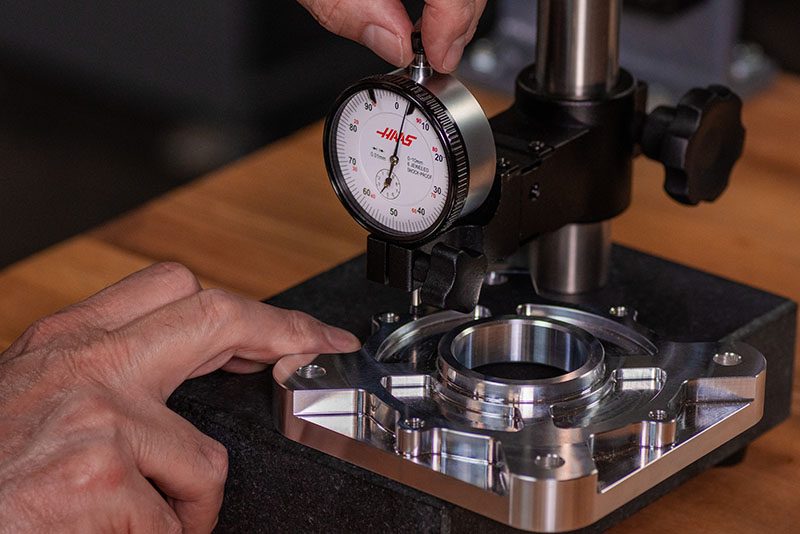

Drop Indicators Details
Haas Tooling offers a full lineup of drop indicators for improving setups and calibrations. Drop indicators allow operators to quickly measure runout, height, flatness, and distance in multiple applications. These indicators feature a dial or digital face fixed to a stem with a plunger-typer contact point.
- Offered in inch (U.S. Only) and metric versions
- Strictly made in accordance with DIN878
- Jeweled bearings provide the lowest possible bearing friction providing higher sensitivity and quick response ability
- Sleeved measuring rod reduces side-to-side play and maintains smooth movement

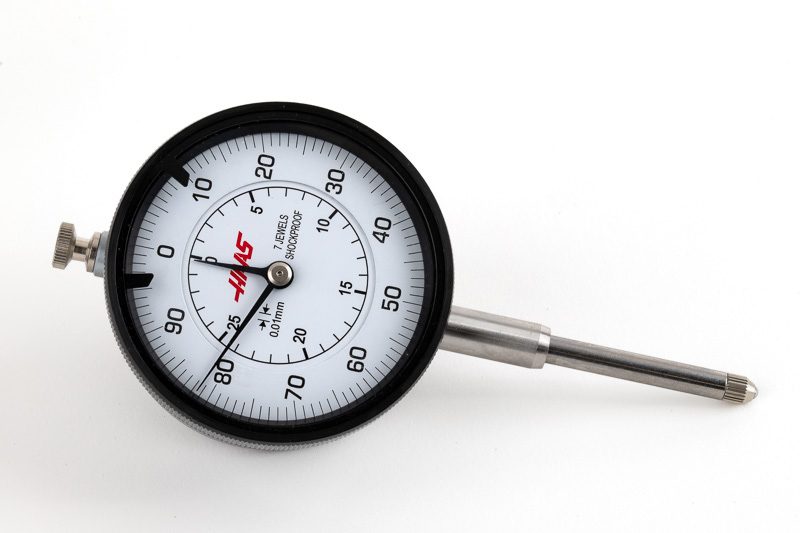

Dial Drop Indicators
- Offered in inch (U.S. only) and metric versions
- Bidirectional dial allows for easy readings in positive and negative directions
- Available with jeweled bearings
- Shockproof versions for resistance to impacts and vibration
- Made to DIN878 standards
Inch Range (U.S. Only): 0.5 - 2”
Inch Graduatations: 0.001” or 0.0005"
Metric Range: 10 - 100 mm
Metric Graduation: 0.01 mm
Accuracy: ± 0.00075 - ± 0.002 in \ ± 0.017 - ± 0.05 mm

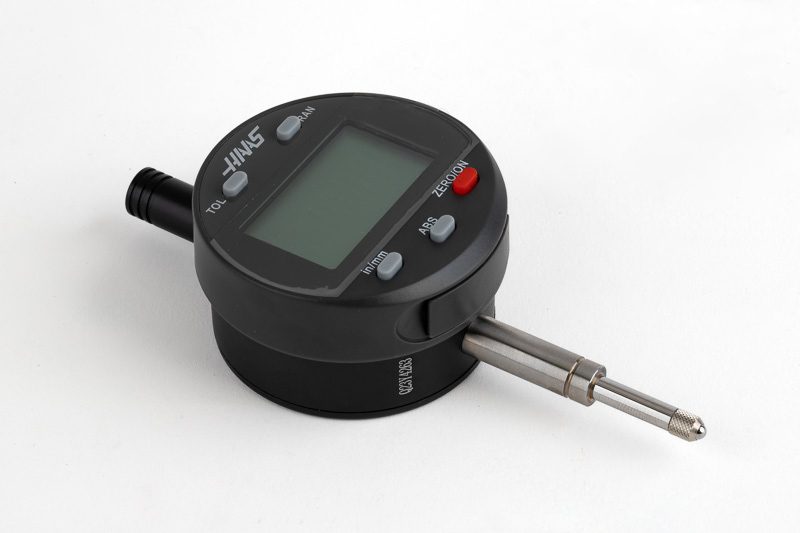

Digital Drop Indicators
- Large, easy-to-read display
- Instant switching between metric and inch measurements
- Battery Type: CR2032
- Includes certificate of calibration
Range: 0.5 - 2" \ 12 - 50 mm
Resolution: 0005 in \ 0.01 mm
Accuracy: ± 0.004 - ± 0.006 mm
