Edge & Center Finders
Accurately locating the position of your workpiece is a critical step in any machining process. If your mill doesn’t have a built-in probing system, Haas Tooling offers different options to cover your edge finding needs – choose from the traditional mechanical, electronic, or the modern Haimer 3D-Sensor style.
The Haimer 3D Sensor. Meet your new favorite tool! It doesn’t just do the job of an indicator and an edge finder – it does the job better.
Universal Haimer 3D sensors from Haas are the perfect complimentary tool for all CNC shops, big and small. They are engineered to provide precise measurements and allow for the edge to be found on the first attempt. The sensor eliminates problems with calculations, creating fewer errors and reducing setup time, optimizing your spindle time.
The Haimer sensor can be equipped with a long or short probe tip. They can be changed out with no re-calibration of the unit. Offered individually or in packs of 3 at a low price, these probe tips are compatible with all Haimer 3D sensors. Haas top-quality tools provide the accuracy you need, at prices that won’t break the bank.
DIRECT REPLACEMENT 3D SENSOR PROBE TIP
Features & Benefits:
- Quick & easy to install on your Haimer 3D sensor
- High-quality tools at an affordable price
- Accurately & precisely locate your parts
- Direct replacement for Haimer 3D sensor probe tip
Our direct replacement probe tip for your Haimer 3D sensor can be quickly and easily installed to prevent any downtime when setting up. Probe tips are available in various lengths and diameters to best fit your application. Available individually or in a pack of 3.

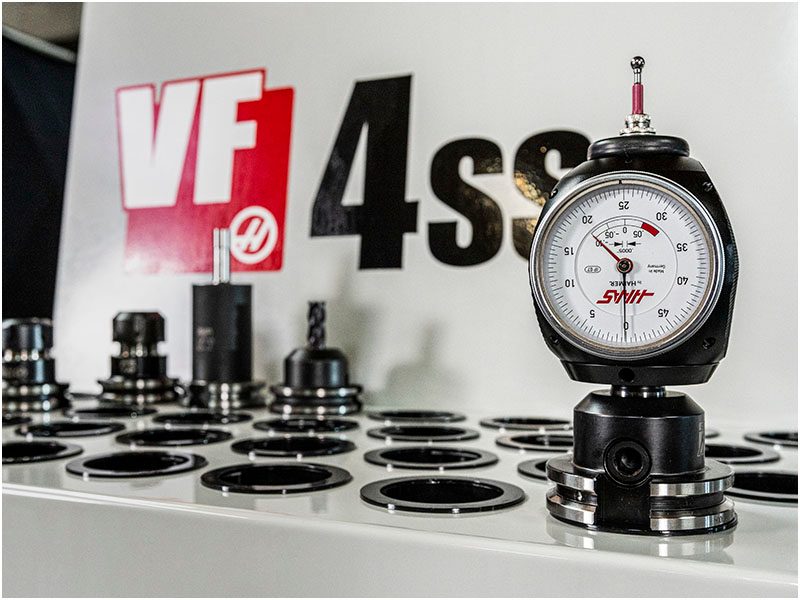

Haas Universal 3D Sensor, by Haimer
Meet your new favorite tool! It doesn’t just do the job of an indicator and an edge finder – it does the job better.

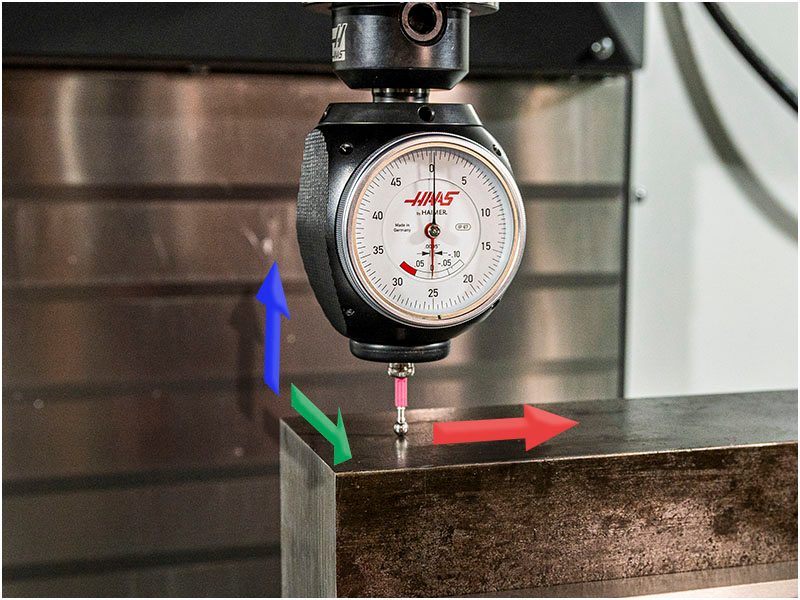

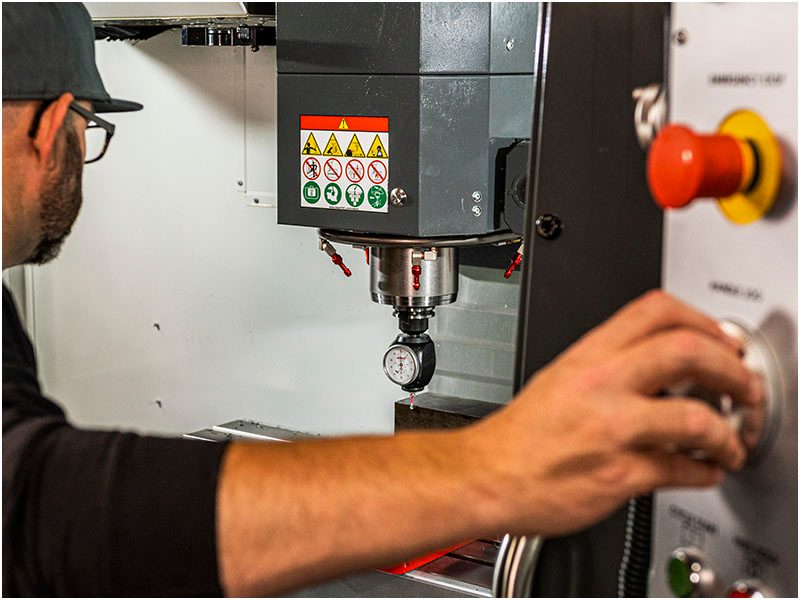

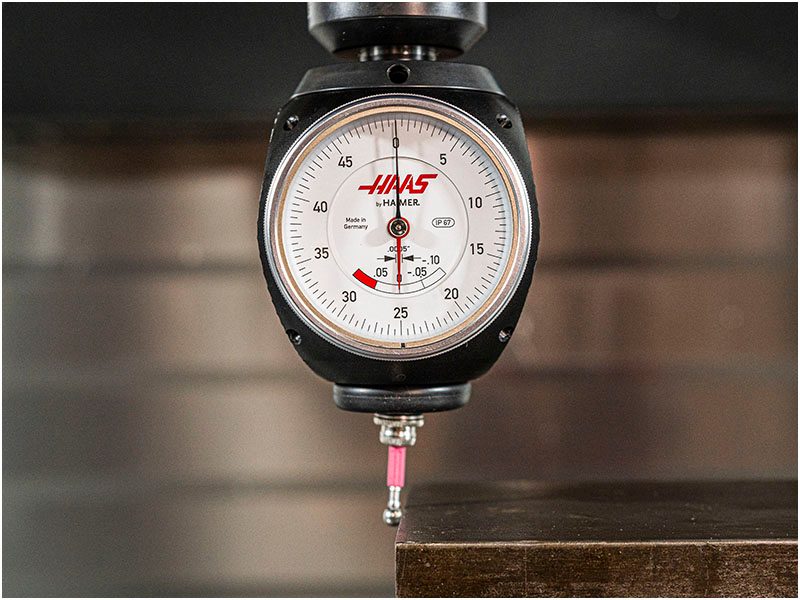

Finding edges, corners, and hole centers has never been easier than with the Haas Universal 3D Sensor, by Haimer. This 3-dimensional edge finder allows you to locate and tram-in surfaces quickly, easily, and more accurately – on the first attempt. No more touch-and-feel with a piece of paper or a spinning edge finder. No more adding or subtracting half the diameter of the probe tip. Simply zero the sensor on the part and then zero the machine. Zero on the sensor = zero on the part! And, because you don’t have to run the spindle, like you do with a traditional edge-finder, you can use the Haas Universal 3D Sensor with the machine doors open.

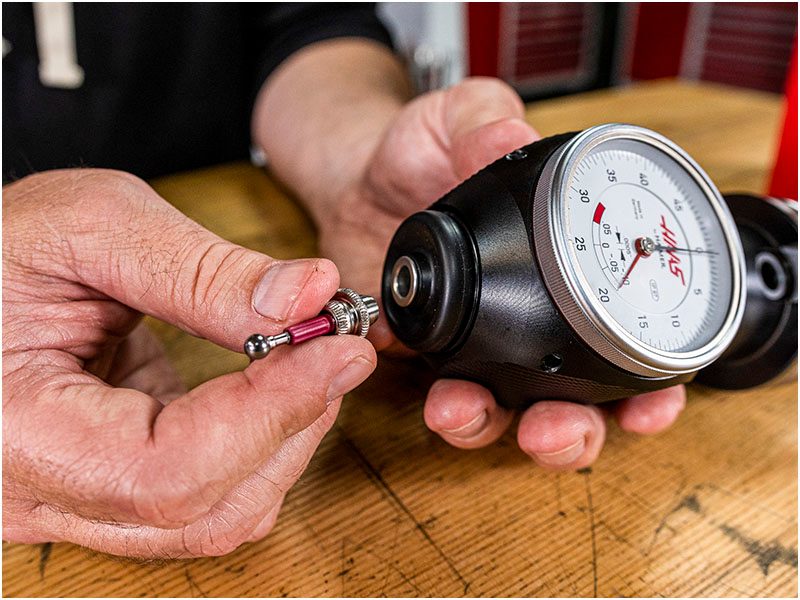

And don’t worry about over-traveling while touching off. The sensor has a large travel range, and the ceramic probe tip is designed to fracture if over-traveled, to avoid damaging the sensor itself. Simply unscrew and replace the broken probe tip and you’re back on the job. No tools necessary.
Features:

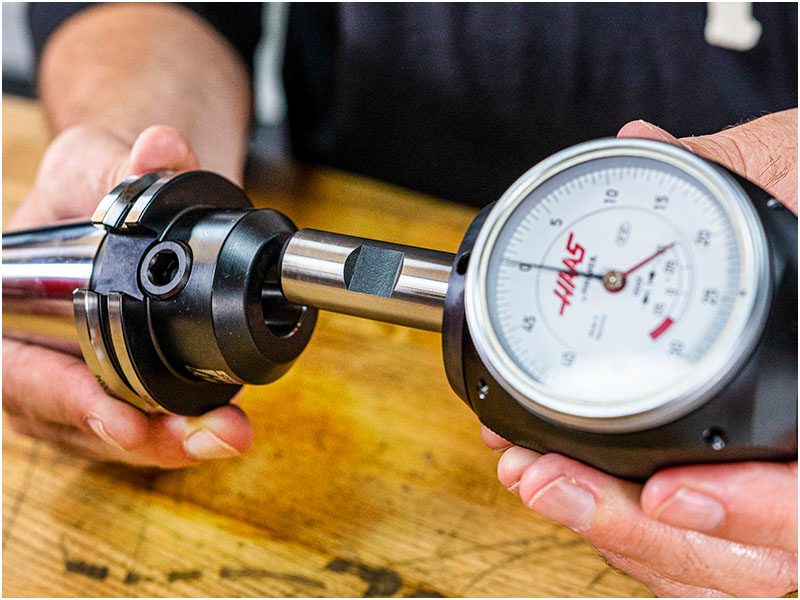

- Clamps into mill spindle
- Measures in 3 axes
- Replaceable sensor probes, without tools
- Large overrun distance and preset breaking points
- Radial runout compensation
- IP67 waterproof
Applications:
- 3-dimensional edge finder locates in X, Y, and Z axis

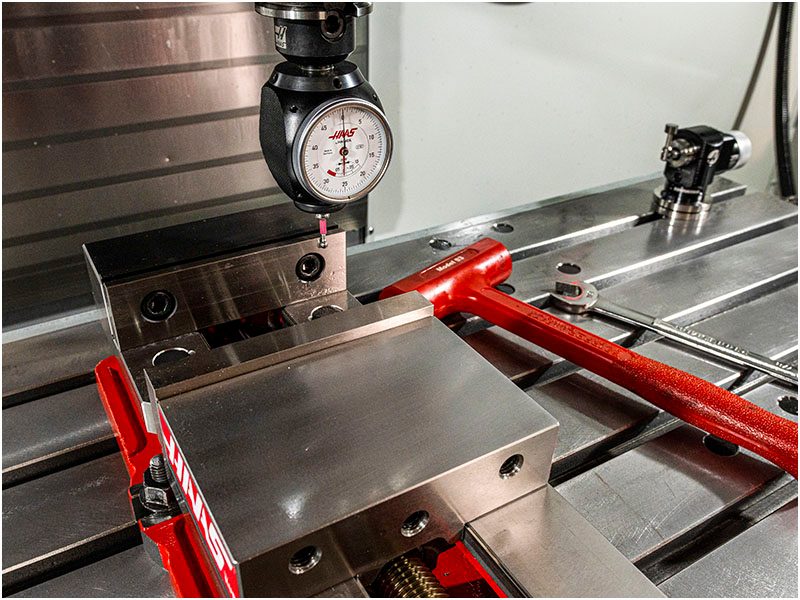

- Locate edges of workpieces and fixtures
- Measure surface flatness
- Measure workpiece dimensions

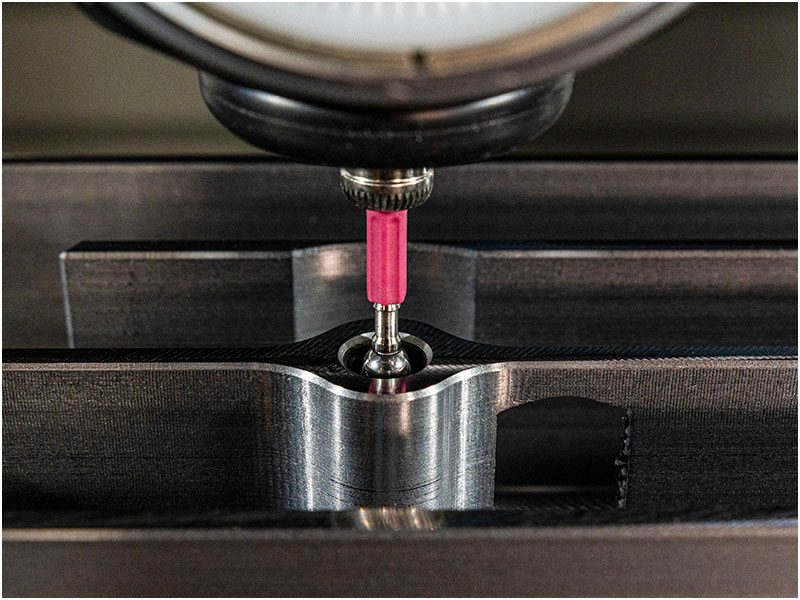

- Accurately locate centers of holes and shafts
- Use with machine doors open
