Haas Smart Height Gauges
Do you need advanced part measurement capability but aren’t ready to move up to a CMM?
Then check out this video, where Sergio, one of our Tooling Engineers, provides a full overview of the specifications and capabilities of the Haas Smart Height Gauges.
Dial & Digital Height Gauge Overview

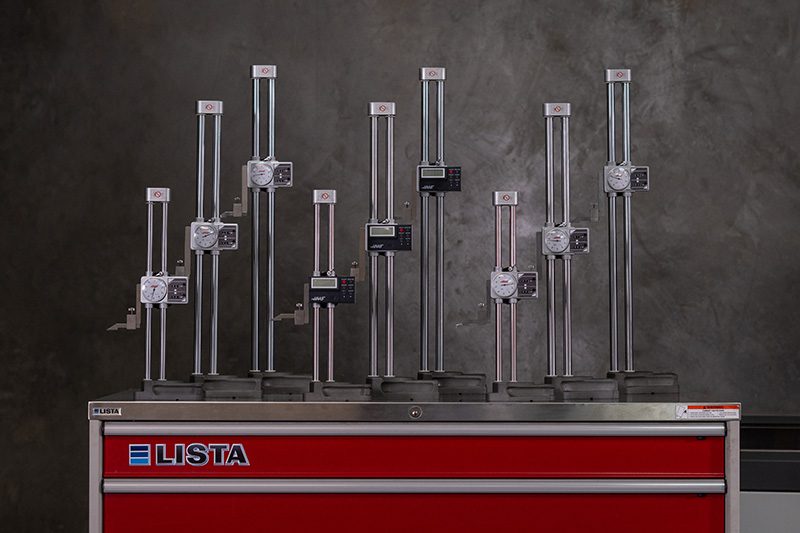

High-Accuracy Height Gauges
Height gauges are precision instruments for measuring and scribing vertical distances or heights between reference points. The Haas height gauge line features a heavy-duty double-column design, offering better rigidity and accuracy than single-column types. Included is a carbide tipped scriber that can be swapped for other accessories such as indicator holders, depth gauge attachments, and center masters. Large handwheel on the slider allows for smooth and easy adjustment of heights. The base is hardened, ground, and lapped for maximum flatness.
- Offered in dial and digital versions
- Available in 12" (300mm), 20" (500mm), or 24" (600mm) ranges
- Metric and inch (U.S. Only) versions available

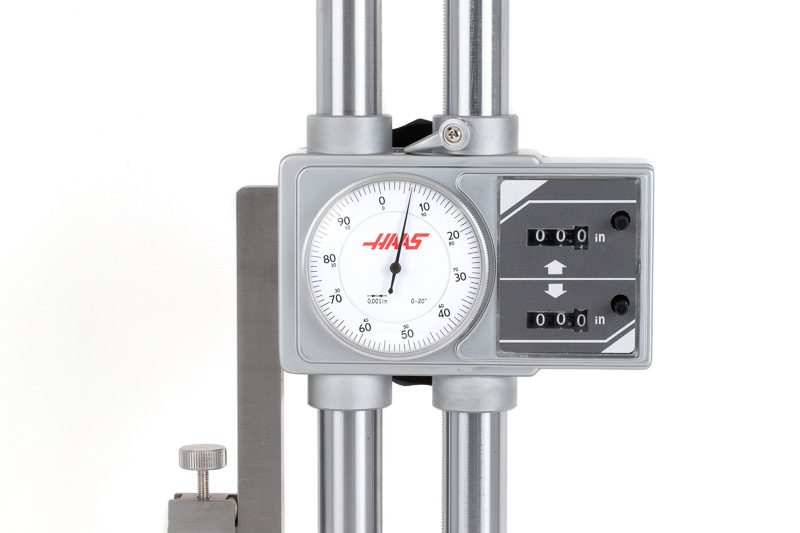

Dial Height Gauges
- Large, easy-to-read dial
- Offered in inch (U.S. only) and metric versions
- Two counters – one counting in the plus direction and the other counting in the minus direction
- Counters can be zeroed at any position for taking comparative measurements
Range: 12" (300mm), 20" (500mm), or 24" (600mm)
Graduations: .001 in \ 0.01mm
Accuracy: ± 0.0015 - ± 0.002 in \ ± 0.04 - ± 0.05 mm

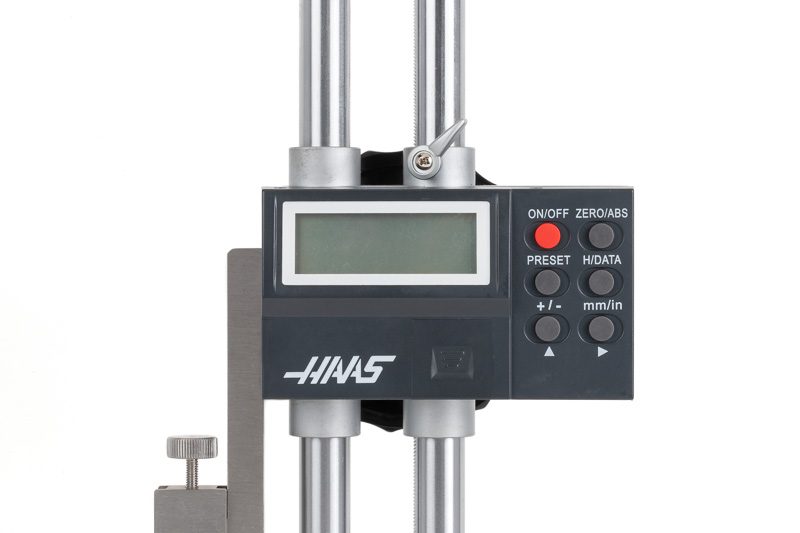

Digital Height Gauges
- Large, easy-to-read display
- Instant switching between metric and inch measurements
- Quickly switch between positive and negative reading directions
- Absolute mode for taking direct measurements from a fixed zero point
- Incremental mode for taking comparative measurements from a variable reference point
Range: 12" (300mm), 20" (500mm), or 24" (600mm)
Resolution: .0005 in \ 0.01mm
Accuracy: ± 0.0015 - ± 0.002 in \ ± 0.04 - ± 0.05 mm

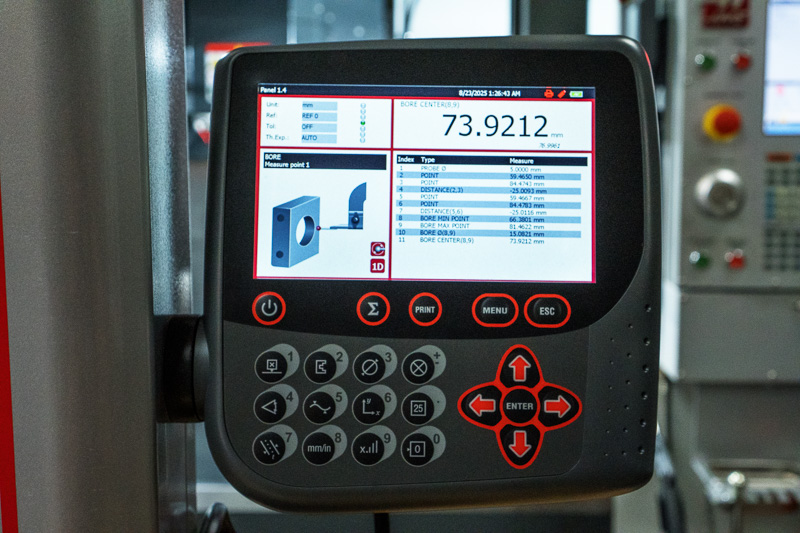

- Motorized drive system
- Air bearing base
- Upper and lower probe support for extended range
- Detect highest/lowest points for flatness, roundness, or runout checks
- Measure and verify against user-specified tolerances
- Create 2D schematics, calculate distances and angles, and perform functions such as best-fitting circles, lines, and other geometric elements
Lower \ Upper Probe Range Max: 12" (300mm) - 22.4" (570mm) \ 24" (600mm) - 34.3" (870mm)
Resolution (mm): 0.01mm \ 0.001mm \ 0.0001mm
Resolution (in): 0.001" \ 0.0001" \ 0.00001"
Height Gauge Videos
