HL-50E Vs. HL-50E-XT Laser Markers
Haas Tooling Engineer Brayan is back with a quick overview of the differences and similarities between the HL-50E Laser Marker and it's new bigger brother the HL-50E-XT.
Fiber Laser Marking Machines
Laser Mark Your Parts Easily! - The Haas HL-50E Laser Marking Machine
Laser marking machines utilize advanced photonics to offer precise laser marking and engraving capabilities to your production line. Fiber laser marking machines are equipped with an optical fiber cable instead of the typical series of lenses to concentrate and amplify the high-output, diode-generated light through a converging lens. The resulting laser beam is straighter, smaller, and more precise than other types of laser marking machines, with greater electrical efficiency and comparatively low operating costs.
These machines are generally suitable for most metallic materials and alloys, such as steel, stainless steel, brass, aluminum, silver, and iron, as well as some non-metallic materials, allowing it to be applicable across a wide range of industries – ideal for small and large manufacturing operations alike.
The HL50E is a complete fiber laser marking solution that includes everything you need to etch and mark materials in your shop – all in a mobile, easy-to-setup package. Includes a lifetime license to LightBurn Software.
ATTENTION! Haas laser marking machines are equipped with an integrated fume extractor designed to remove harmful fumes and particulates generated during laser operation. Additionally, the machines feature laser safety windows to filter hazardous light rays. Operating the machine without the factory-provided fume extractor or with the laser safety windows unlocked and open may pose serious health and safety risks due to exposure to fumes, particulates, and/or harmful light rays.
Features
- Q-Switch Pump Source – efficiently emits light in rapid bursts/pulses, for better thermal control
- Laser Pointers – ensures marker is in focus once calibrated
- Integrated Fume Extractor – automatically extracts harmful fumes produced by lasering
- 450 x 350mm Standard Fixture Plate
- Laser Light-Safe Windows
- Power and Manual Laser Head Height Adjustment
- Foot Switch
- Integrated Windows 11 PC
- Includes a lifetime license to LightBurn Software
- Includes a 12-month warranty from ship date supported by your local Haas Factory Outlet
- (2) Laser Lenses Included:
- F160 Lens: 110 x 110mm (~4" x 4") working area, 160mm focal length (default)
- F290 Lens: 200 x 200mm (~8" x 8" working area, 290mm focal length

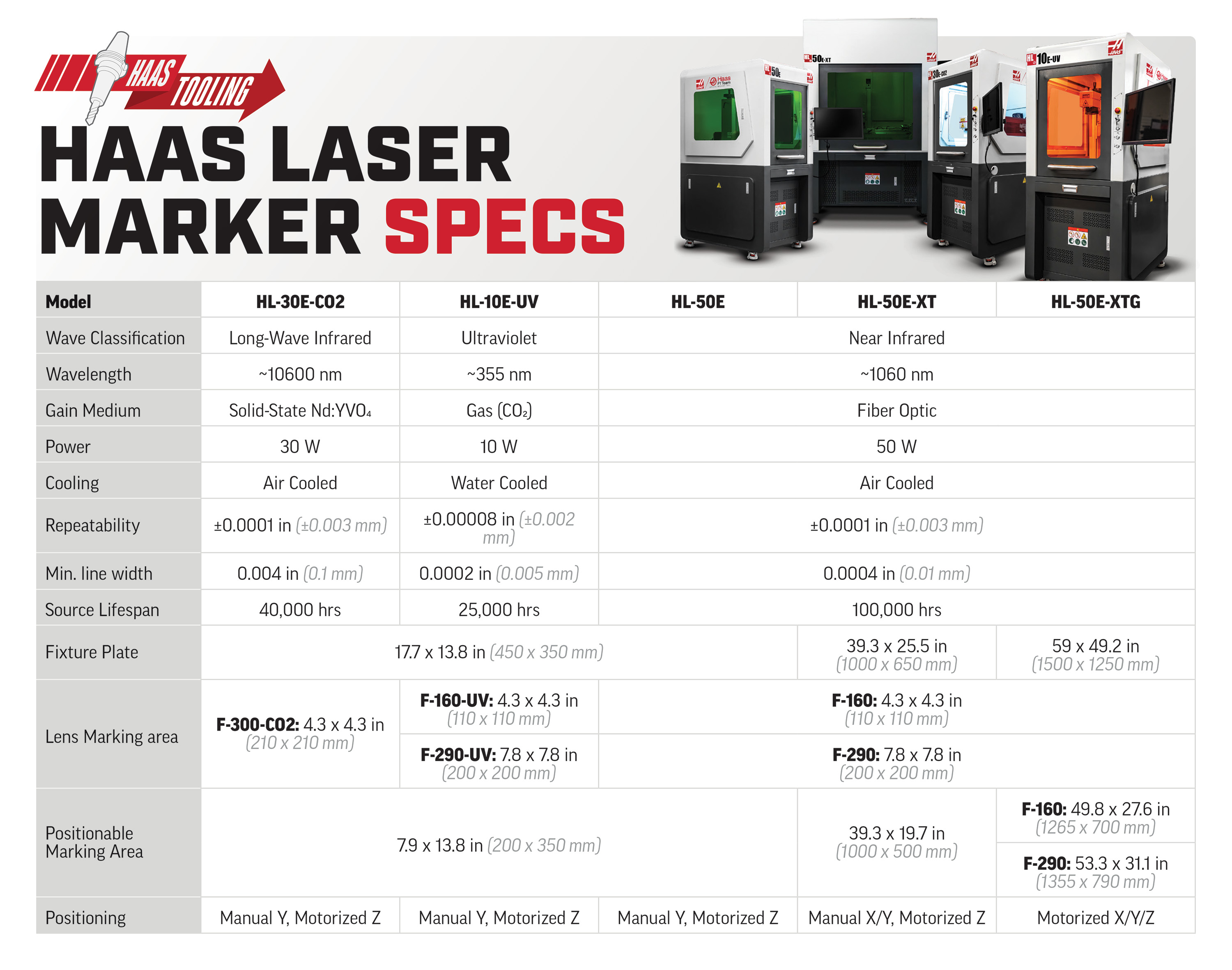

PICKING THE RIGHT TOOL FOR THE JOB
The best laser for your shop depends on what youʼre marking. Haas laser markers come in three distinct types, each optimized for a different family of materials. Choose the one that fits your application, or combine them to cover every job in your shop.
Metal Marking

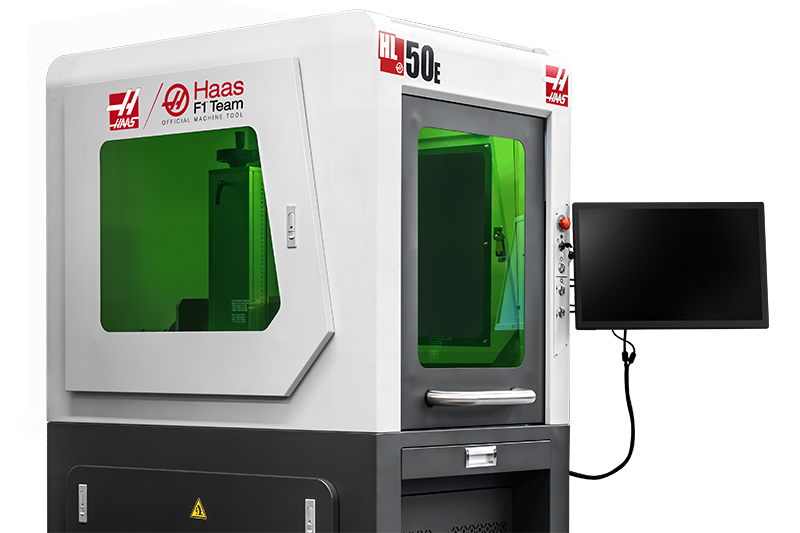

HL-50E Series
A fiber laser is the workhorse of metal shops. A near-infrared beam delivers fast, high-contrast marks on bare and coated metals with high repeatability.
Ideal Use-Cases:
Industrial marking, serialization, QR codes, anodized aluminum,
and tooling identification.
Keep in mind:
Non-metallic, plastic, or organic materials with low thermal
conductivity may not mark cleanly and may melt or burn.
Mixed-Use Marking

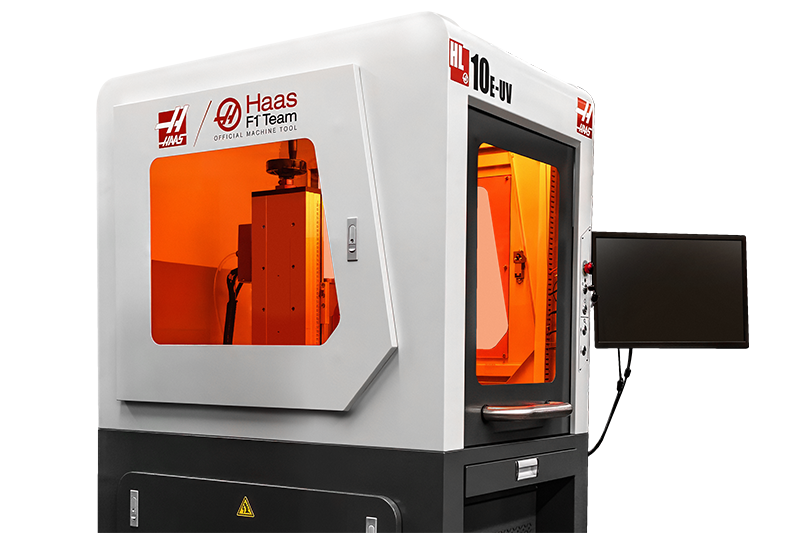

HL-10E-UV
A UV laser is designed for delicately marking a wide variety of materials. The short, ultraviolet wavelength produces an extremely fine line width, with minimal heat.
Ideal Use-Cases:
Glass and ceramics, plastic components, heat-sensitive
substrates, and fine detail work.
Keep in mind:
Quality and material sensitivity come at the cost of speed.
Organic Materials Marking

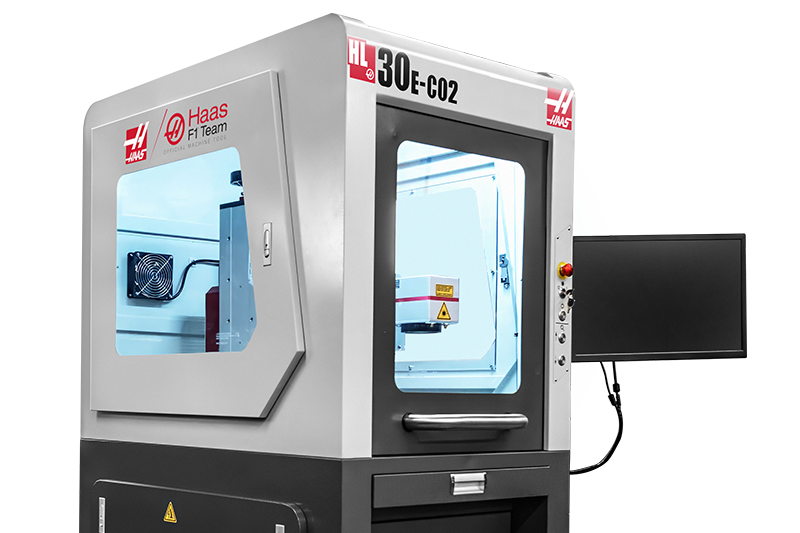

HL-30E-CO2
A CO2 laserʼs long-wave infrared beam is absorbed naturally by non-metallic and soft materials, producing rich, high-contrast marks at high speed.
Ideal Use-Cases:
Wood products and furniture, leather goods, denim, acrylic
signage, and packaging.
Keep in mind:
The CO2 lasers cannot mark bare metals well.

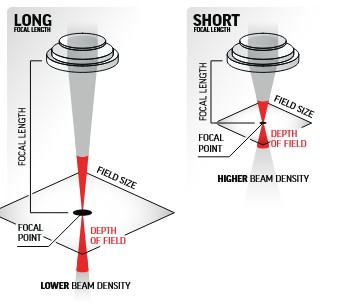

Choosing Your Lens
Haas laser markers use a galvanometer-driven F-Theta lens system to direct the beam across the marking field. Some models have two lenses available, each optimized for a different type of work.
Long focal length
A wider depth of field and larger field size makes it better suited for larger marking areas and parts with uneven surfaces.
Short focal length
A smaller field with a finer focal point and higher beam density makes it ideal for detailed work and precise marks.
Lightburn
Customize your creative assets
Artwork, graphics, and decals can be imported in a variety of formats.
Total control of the machine
Laser power, frequency, speed, number of passes, and more can be easily adjusted.
Ready to run
LightBurn is preinstalled on the integrated desktop, and each purchase includes a lifetime license.
