Product Overview
Pitbull® Clamps
Pitbull® low-profile steel clamps bite and pull down on the workpiece to create high vertical and horizontal clamping forces. Machinable clamps are also available, complete with set-up pins to aid in the machining of the workpiece profile.
Features
- Usable on flat or round workpieces
- Low profile clamp for maximum tool access
- Positive down force clamping
- Various sizes available
- Machinable versions are also available
Different Edges for Different Purposes
- Knife Edge is designed for biting and pushing down on workpieces to secure them for heavy material removal, best for first operations.
- Blunt Edge is designed for general-purpose machining and is less likely to leave marks on the workpiece; great for second operations.
- Machinable Edge is made of A2 tool steel heat treated to 43RC and can be machined to match the profile of a complex workpiece to increase clamping area; great for second operations and profile parts.
Knife Edge

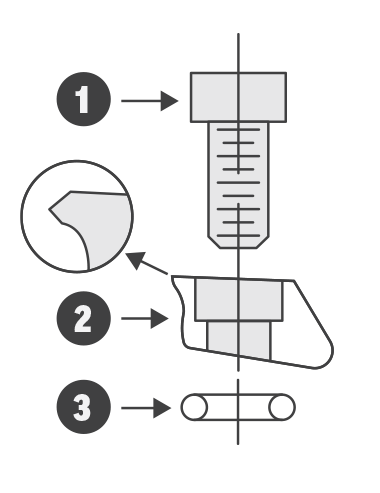

1. Cap Screw | 2. Clamp | 3. O-Ring
Blunt Edge

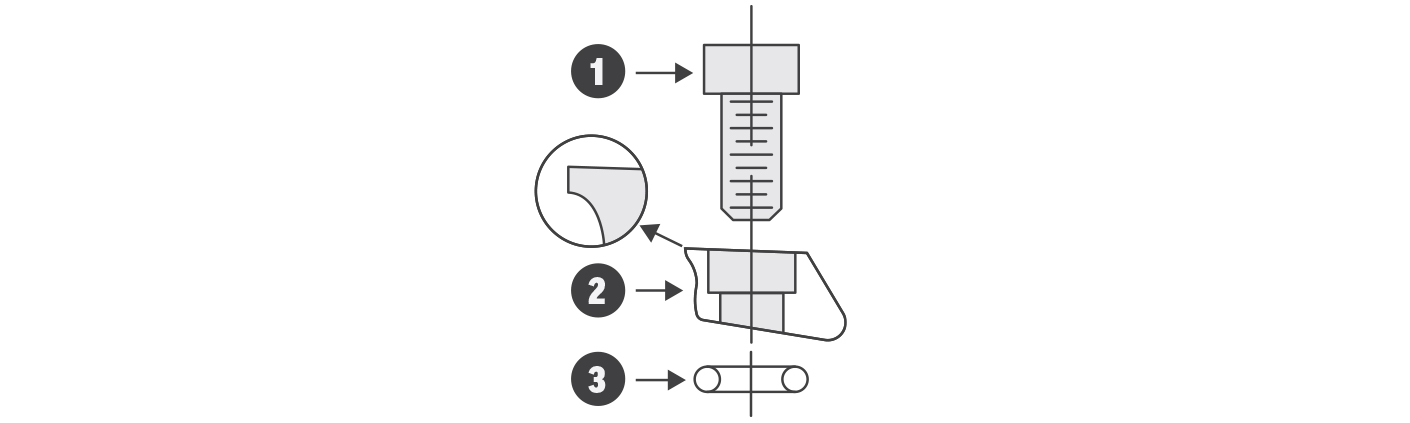

1. Cap Screw | 2. Clamp | 3. O-Ring
Machinable Edge

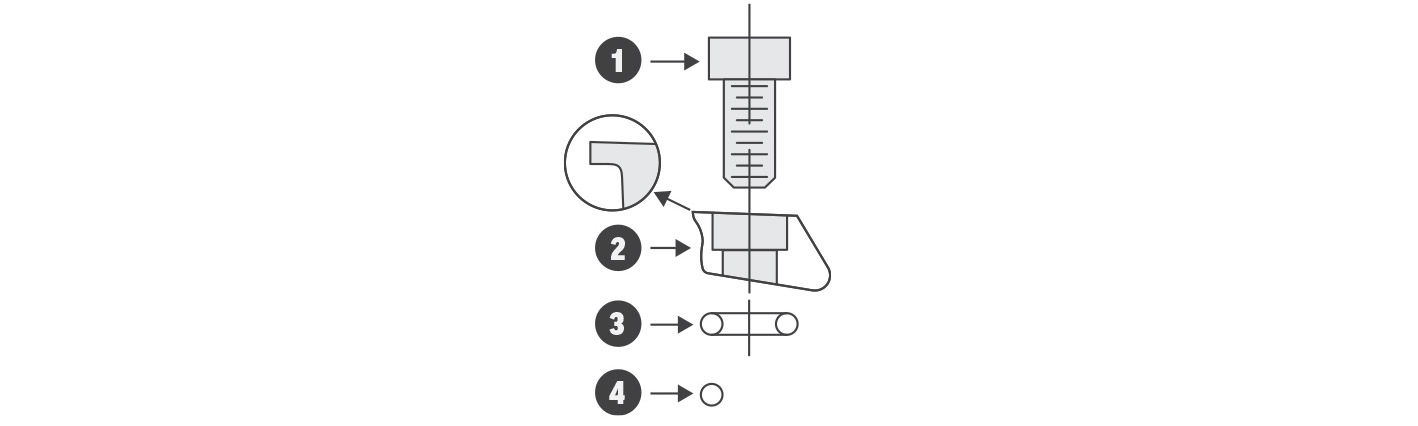

1. Cap Screw | 2. Clamp | 3. O-Ring | 4. Machining Dowel Pin
Application Examples
Clamp the workpiece with a single clamp or use multiple clamps on different sides. Check out below for some examples of how to use these clamps.
Example A:

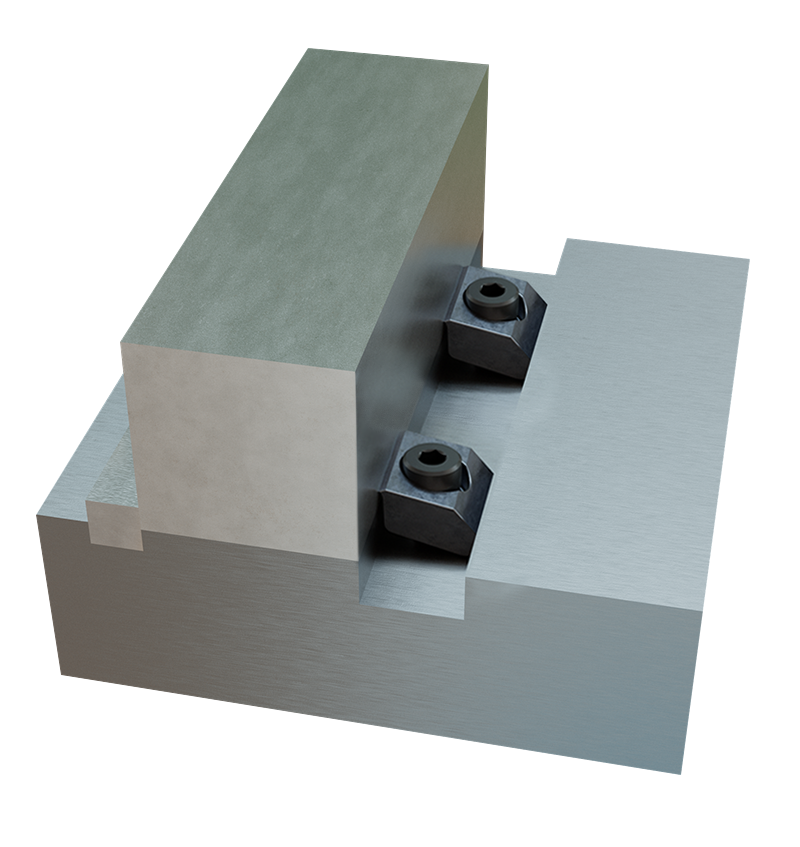

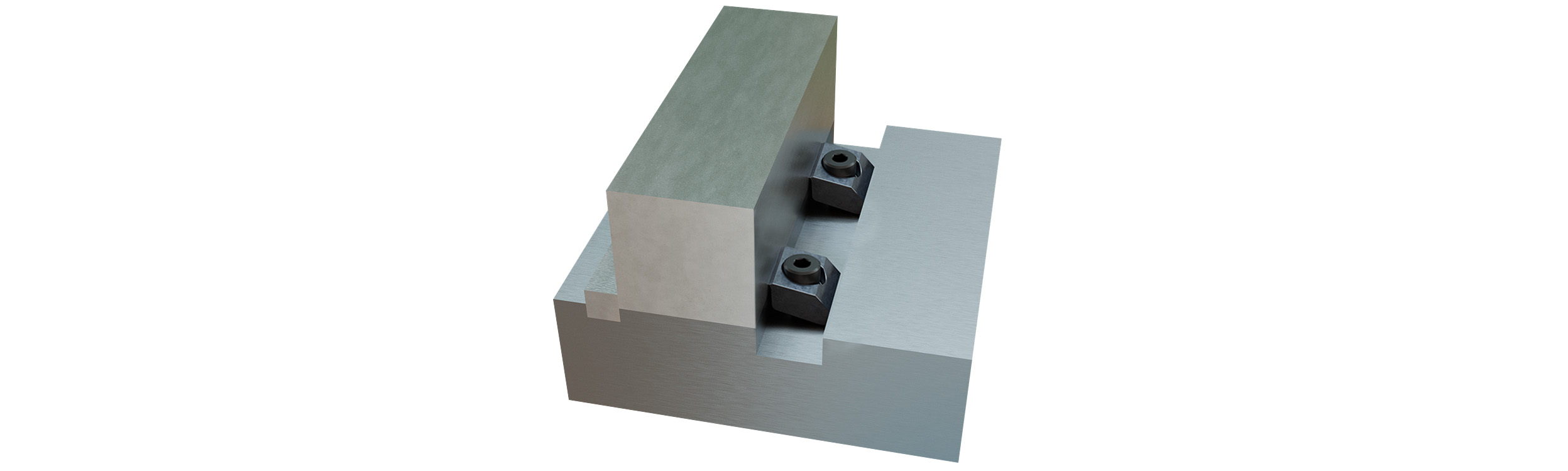

Clamping a Part Against a Work Stop
Example B:

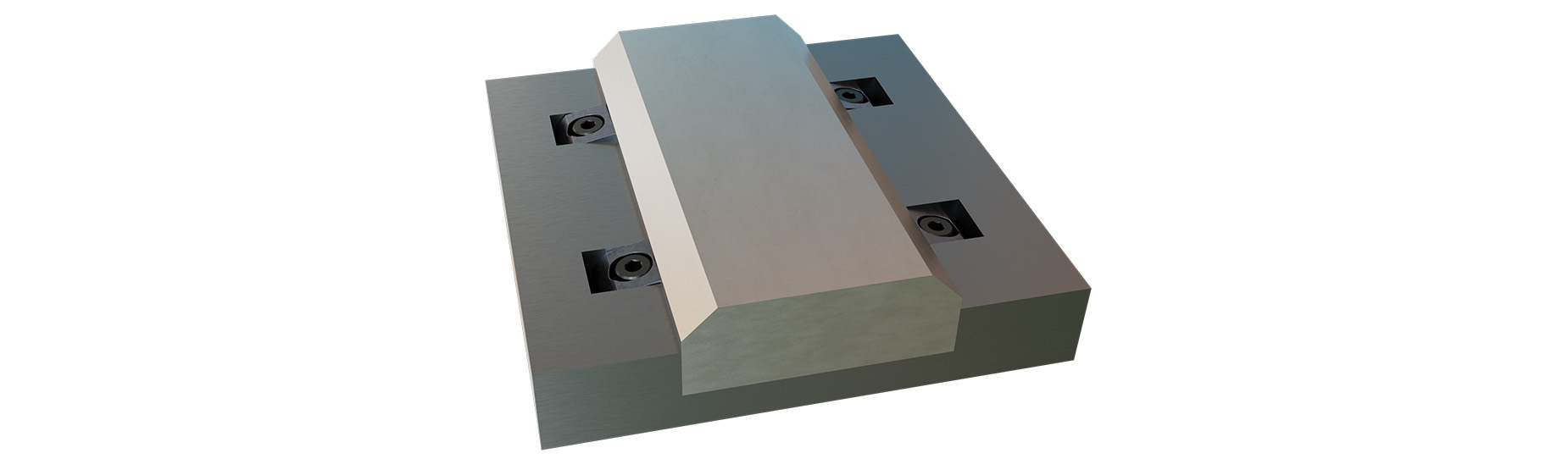

Clamping a Part on Multiple Sides
Example C:

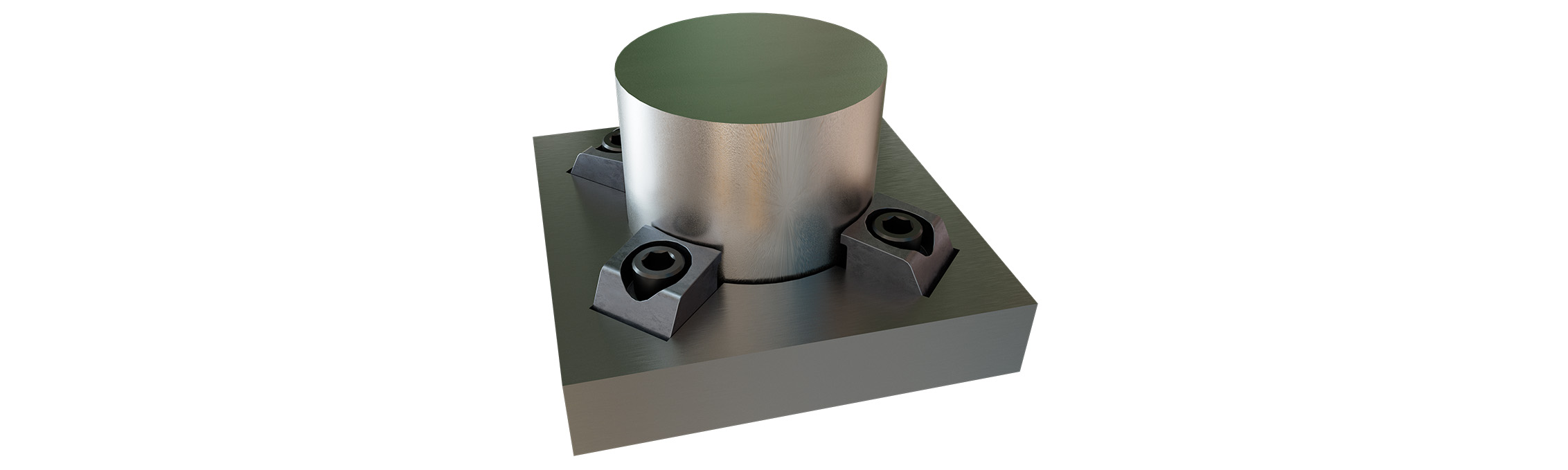

Clamping Profile Parts on Multiple Sides
