Product Overview

TOOLPATH TYPE

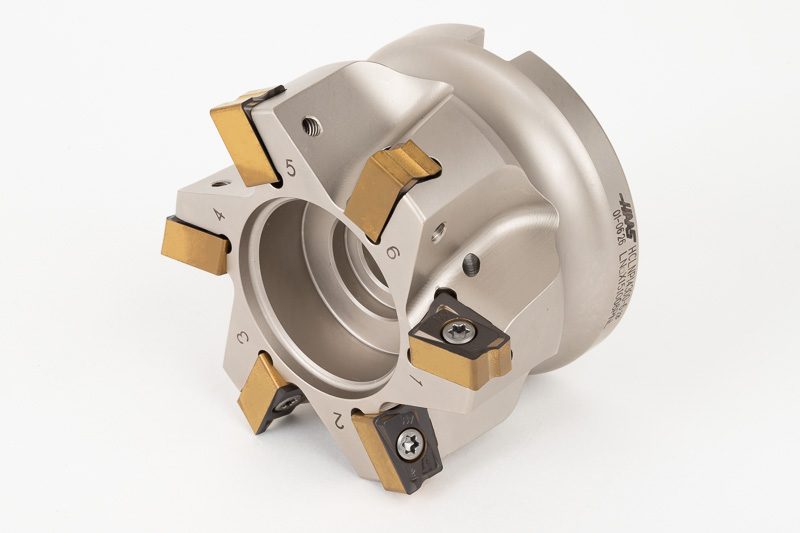

Shell Mill Bodies

ISO MATERIAL TYPE

 P - STEEL     M - STAINLESS STEEL   K - CAST IRON    N - ALUMINUM / NON-FERROUS  S - HIGH-TEMP ALLOYS   H - HARDENED METALS

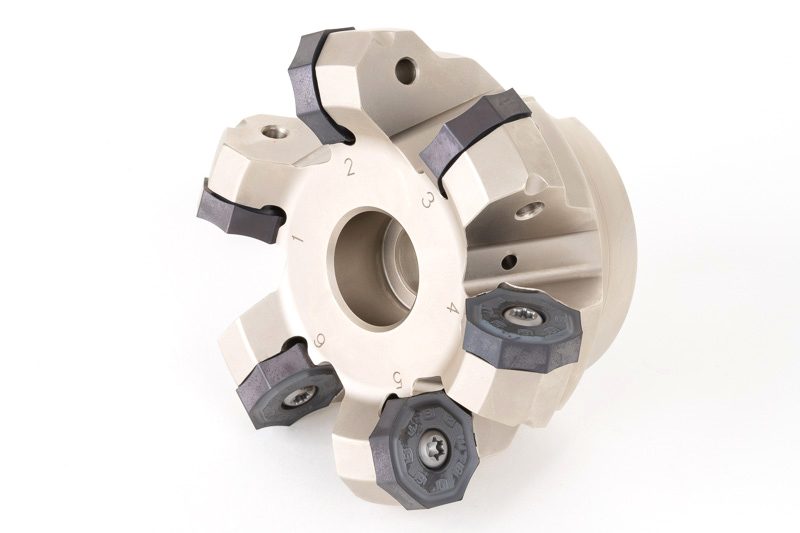

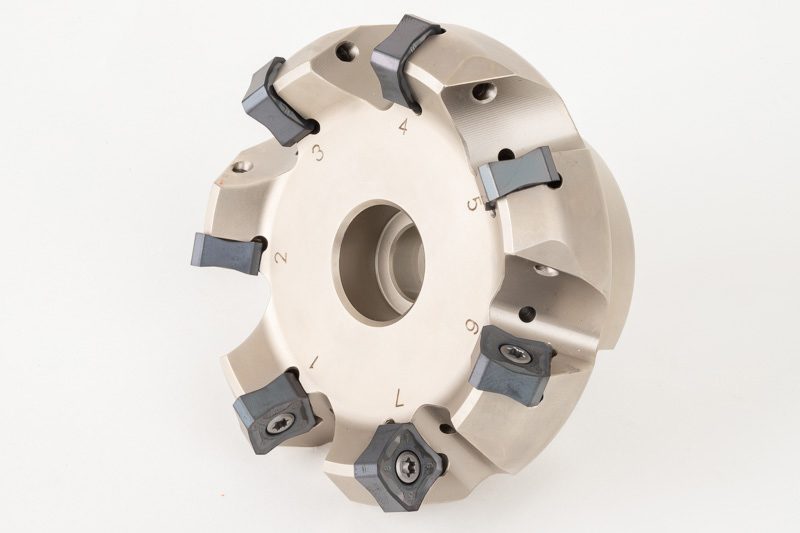

HOP – Haas Octagon Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .138" (3.50mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes: 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P      M       K     N

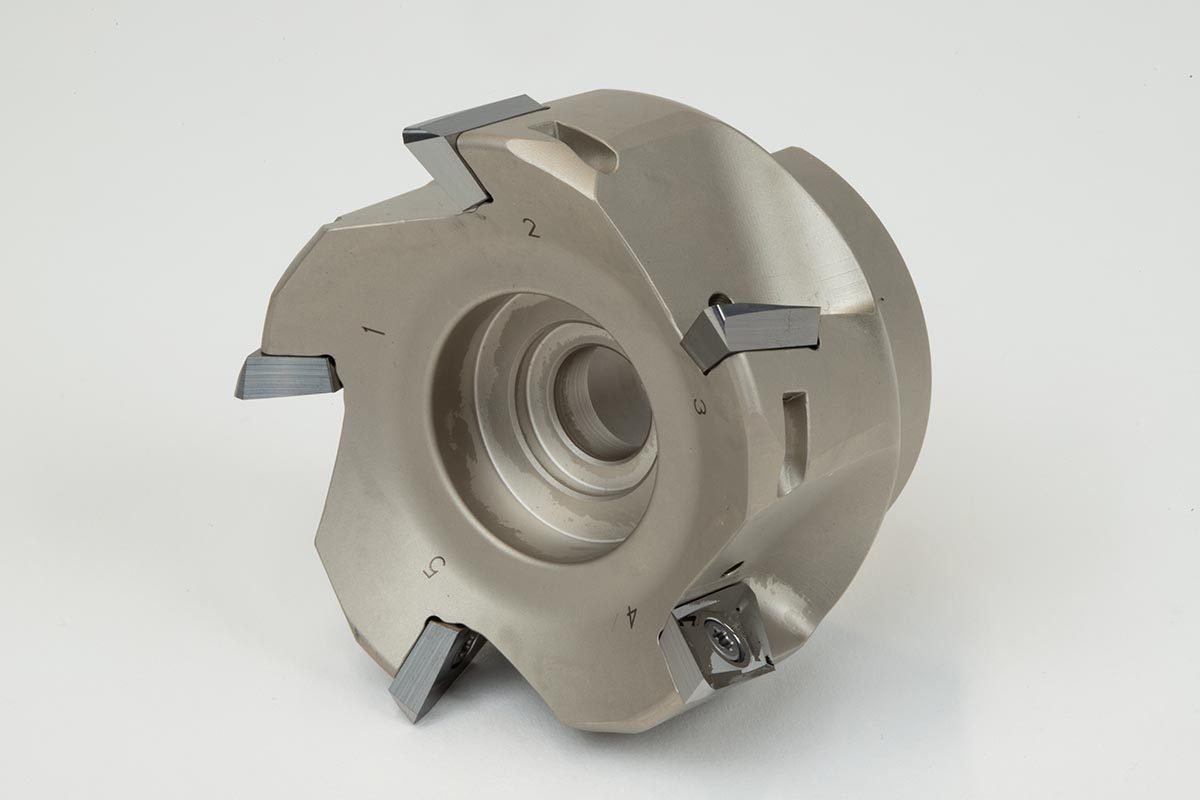

HSNP – Haas Square Negative Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .275" (6.99mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P     M      K

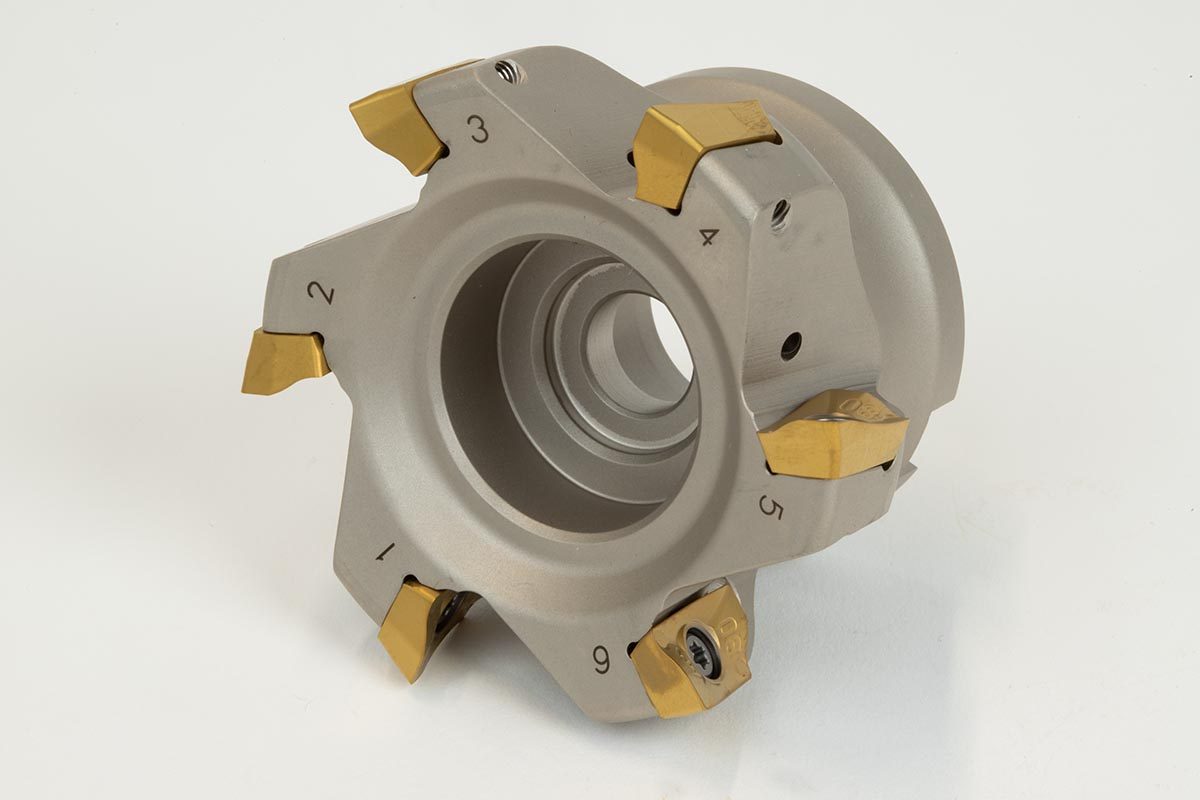

HRNP – Haas Rectangle Negative Positive



Toolpath Type: Face Milling, Shoulder Milling



90° cutting edge | D.O.C. max. .571" (14.50mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P    M      K     N



*Maximum RPM may be limited for smaller diameter tools.

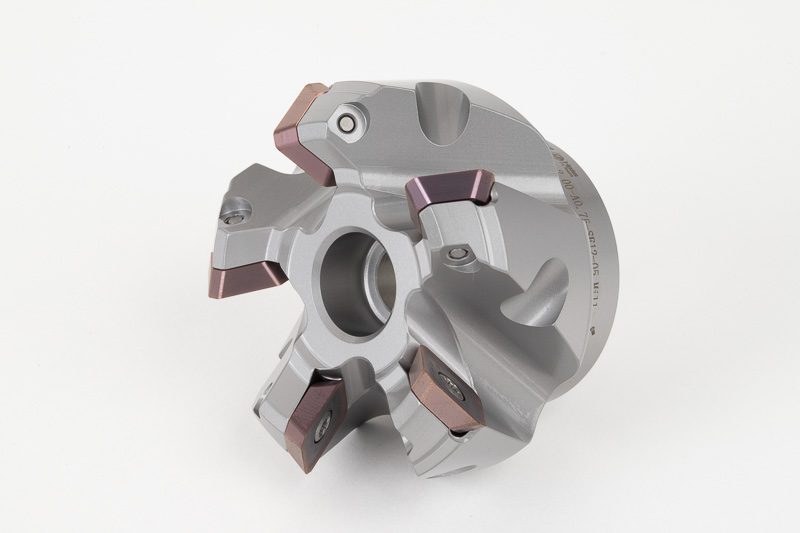

HPP – Haas Positive Positive



Toolpath Type: Face Milling, Shoulder Milling



90° cutting edge | D.O.C. max. .591" (15.00mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P     M     K

HSHF – Haas Square High Feed



Toolpath Type: Face Milling, Slotting, Ramping, Helical Milling, Copy Milling, Axial Plunge Milling



15° cutting edge | D.O.C. max. .071" (1.80mm)

  • Positive axial rake, negative radial rake
  • Inch sizes 2.0" and 3.0"
  • Metric sizes 50mm and 80mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35



APPLICABLE WORKPIECE MATERIALS

   P      M

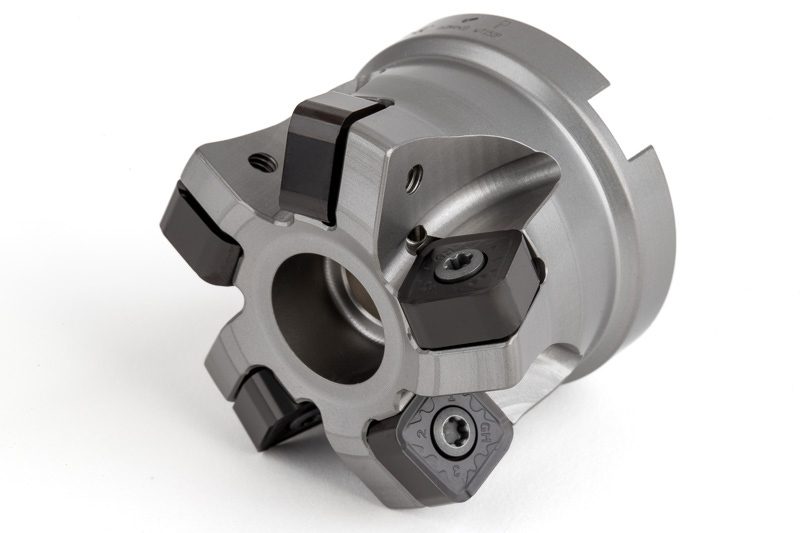

HS6NP – Haas Sq Shoulder 6 Negative Positive



Toolpath Type: Face Milling, Shoulder Milling, Slotting



90° cutting edge | D.O.C. max. .303" (7.70mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

    P       M      K      N



*Maximum RPM may be limited for smaller diameter tools.

HPAL – Haas High Positive for Aluminum



Toolpath Type: Face Milling, Shoulder Milling, Slotting, Ramping, Helical Milling, Copy Milling



90° cutting edge | D.O.C. max. .670" (17.00mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0" and 3.0"
  • Metric sizes 50mm and 80mm



AVAILABLE HAAS GRADES

  • HN25



APPLICABLE WORKPIECE MATERIALS

   N

HPSM – Haas High Positive Shell Mill



Toolpath Type: Face Milling, Shoulder Milling, Slotting, Ramping, Helical Milling, Copy Milling



90° cutting edge | D.O.C. max. .649" (16.48mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", and 3"
  • Metric sizes 40mm, 50mm, 63mm, and 80mm



AVAILABLE HAAS GRADES

  • HU30
  • HP25
  • MKP30



APPLICABLE WORKPIECE MATERIALS

   P     M      K



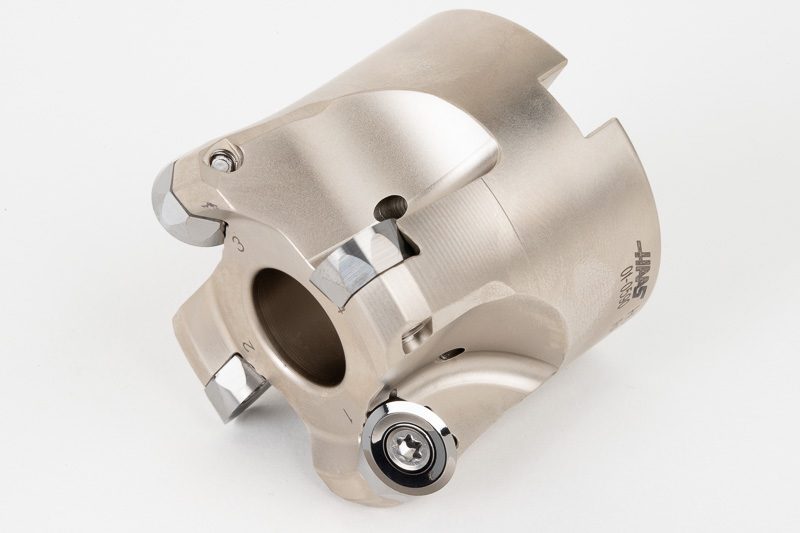

HRPP – Haas Round Positive Positive



Toolpath Type: Face Milling, Shoulder Milling, Slotting, Ramping, Helical Milling, Copy Milling



Round edge | D.O.C. max. .236" (5.99mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", and 3.0"
  • Metric sizes 50mm, 63mm, and 80mm



AVAILABLE HAAS GRADES

  • HU30
  • HU40
  • HP25
  • HN25A
  • HH10



APPLICABLE WORKPIECE MATERIALS

   P    M    K     N

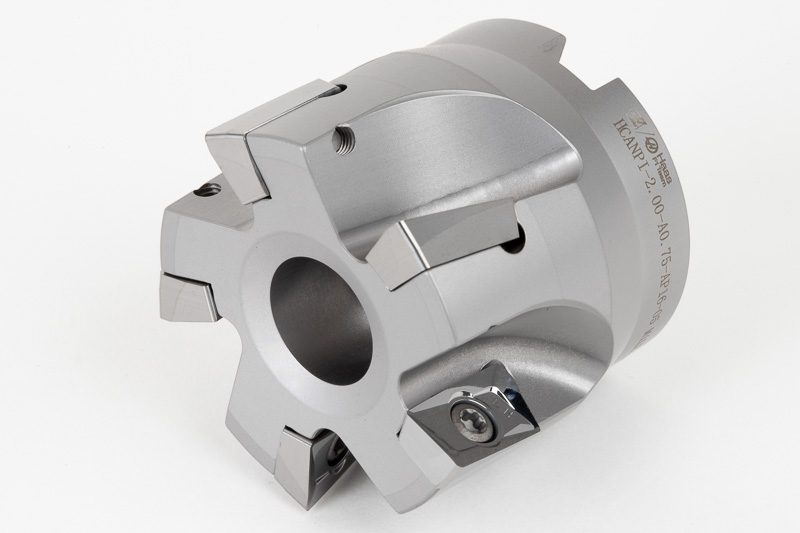

HAPN – Parallelogram Positive Negative



Toolpath Type: Face Milling, Shoulder Milling



90° cutting edge | D.O.C. max. .630" (16.00mm)

  • Positive axial rake, negative radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, and 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HN25



APPLICABLE WORKPIECE MATERIALS

   P    M     N

HSPP – Haas Square Positive Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .236" (5.99mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, and 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HN25



APPLICABLE WORKPIECE MATERIALS

   P     M      N

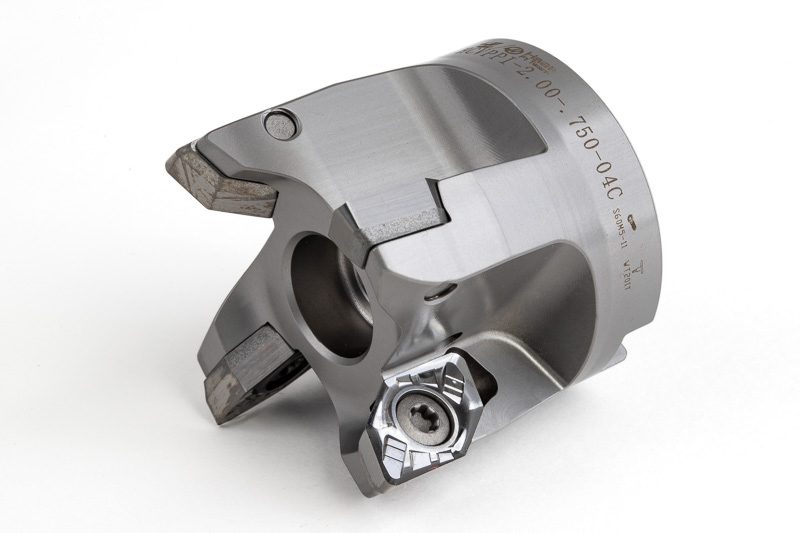

HLNP – Haas Rectangle Negative Positive



Toolpath Type: Face Milling, Shoulder Milling, Slotting, Helical Milling, Axial Plunge Milling



90° cutting edge | D.O.C. max. .059"/.098" (1.5/2.5mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 1.5", 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 40mm, 50mm, 63mm, 80mm, and 100mm



AVAILABLE HAAS GRADES

  • HU30
  • HMK15
  • HMP40C



APPLICABLE WORKPIECE MATERIALS

   P     M     K      S     H

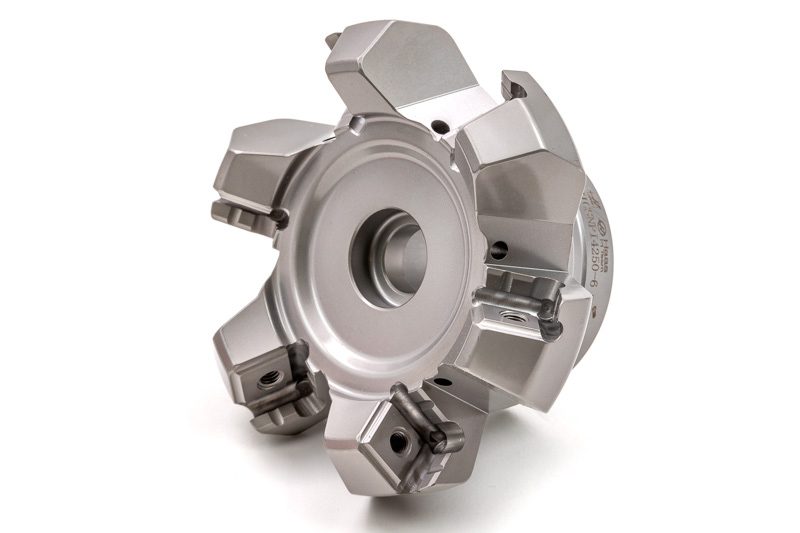

HCSNP – Haas C Square Negative Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .236" (5.99mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HU30
  • HU40
  • HN25A
  • MKP30
  • HMP40C



APPLICABLE WORKPIECE MATERIALS

   P     M      K     N

HONP – Haas Octagon Negative Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .216" (5.50mm)

  • Negative axial rake, positive radial rake
  • Inch sizes: 2.5", 3.0", and 4.0"
  • Metric sizes: 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HU30
  • HU40
  • HN25A
  • MKP30
  • HMP40C



APPLICABLE WORKPIECE MATERIALS

   P     M      K     N

HVPP – Haas 35° Rhombic (V) Positive Positive



Toolpath Type: Ramping, Shoulder Milling, Axial Plunge Milling



90° cutting edge | D.O.C. max. .0.394" (10mm)

  • Positive axial rake, positive radial rake
  • Inch sizes: 2.0", 2..5", 2.0", and 3.0"
  • Metric sizes: 40mm, 50mm, 63mm, and 80mm



AVAILABLE HAAS GRADES

  • HN25



APPLICABLE WORKPIECE MATERIALS

   N

HCSHF – Haas Double Square High Feed



Toolpath Type: Face Milling, Ramping, Helical Milling, Copy Milling, Axial Plunge Milling



17.23° cutting edge | D.O.C. max. .07" (1.8mm)

  • Negative axial rake, negative radial rake
  • Inch sizes: 2.0", 2..5", and 3.0"



AVAILABLE HAAS GRADES

  • HMP20
  • HMP35



APPLICABLE WORKPIECE MATERIALS

   P    M

HPAL2 – Haas Positive for Aluminum



Toolpath Type: Face Milling, Shoulder Milling, Slotting, Ramping, Helical Milling, Copy Milling



90° cutting edge | D.O.C. max. .860” (21.9 mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0”, 2.5”, 3.0” and 4.0”
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HN25



APPLICABLE WORKPIECE MATERIALS

  N

HCSNP2 – Haas C Square Negative Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .256" (6.5mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"



AVAILABLE HAAS GRADES

  • HN25
  • HMP20
  • HMP35
  • HK25



APPLICABLE WORKPIECE MATERIALS

  P    M    K    N

RayGinn Manufacturing Customer Testimonial

"We received several shell mills with our new Haas and they are the most high-quality shell mills I've seen. We're running them in several of our machines."

- Don Coffin, RayGinn Manufacturing

2" Shell Mill Cutting Demo

Watch as this 2" shell mill with through-spindle coolant capabilities goes to work cutting both steel and aluminum.
