Product Overview
1. Select Your Milling Cutter Series:

HOP – Haas Octagon Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .138" (3.50mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes: 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P      M       K     N

HSNP – Haas Square Negative Positive



Toolpath Type: Face Milling



45° cutting edge | D.O.C. max. .275" (6.99mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P     M      K

HRNP – Haas Rectangle Negative Positive



Toolpath Type: Face Milling, Shoulder Milling



90° cutting edge | D.O.C. max. .571" (14.50mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P    M      K     N



*Maximum RPM may be limited for smaller diameter tools.

HPP – Haas Positive Positive



Toolpath Type: Face Milling, Shoulder Milling



90° cutting edge | D.O.C. max. .591" (15.00mm)

  • Positive axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 50mm, 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HK25



APPLICABLE WORKPIECE MATERIALS

   P     M     K

HSHF – Haas Square High Feed



Toolpath Type: Face Milling, Slotting, Ramping, Helical Milling, Copy Milling, Axial Plunge Milling



15° cutting edge | D.O.C. max. .071" (1.80mm)

  • Positive axial rake, negative radial rake
  • Inch sizes 2.0" and 3.0"
  • Metric sizes 50mm and 80mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35



APPLICABLE WORKPIECE MATERIALS

   P      M

HS6NP – Haas Sq Shoulder 6 Negative Positive



Toolpath Type: Face Milling, Shoulder Milling, Slotting



90° cutting edge | D.O.C. max. .303" (7.70mm)

  • Negative axial rake, positive radial rake
  • Inch sizes 2.0", 2.5", 3.0", and 4.0"
  • Metric sizes 63mm, 80mm, 100mm



AVAILABLE HAAS GRADES

  • HP30
  • HMP20
  • HMP35
  • HN25
  • HK25



APPLICABLE WORKPIECE MATERIALS

    P       M      K      N



*Maximum RPM may be limited for smaller diameter tools.

2. Select Your Application Material



                                            P - STEEL

                                   M - STAINLESS STEEL

                                      K - CAST IRON

                       N - ALUMINUM / NON-FERROUS

                             S - HIGH-TEMP ALLOYS

                           H - HARDENED METALS


3. Select Your Cutting Diameter

Choose the cutter size that best matches your application.



4. Select Your Tool Taper and Gage Length

We offer milling kits in a variety of tool tapers, with several gage lengths to meet your needs.

Cutter Series Videos

COMPLETE GENERAL-PURPOSE SHELL MILL KIT

This general-purpose CT40 Shell Mill Kit includes everything you need for surfacing and shoulder milling a variety of materials, including steels, stainless steels, and aluminum alloys. Includes toolholders, 45-degree and 90-degree face mills, pull studs, and a variety of inserts for cutting different materials. No need to order individual parts or go to multiple vendors, everything is in the box – just assemble and go.

READY2RUN SHELL MILL KITS

No more searching for individual tooling components for your shell mills, we provide everything you need in one spot, with our Ready2Run kits. With these kits, you get everything from pull stud to cutting tip, so you can spend less time searching, and more time making chips.

Video Guides

HOP – Haas Octagon Positive
HSNP – Haas Square Negative Positive

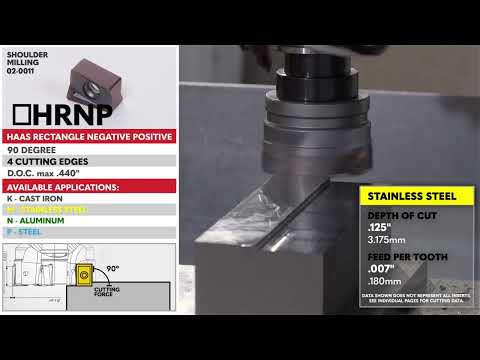

HRNP – Haas Rectangle Negative Positive

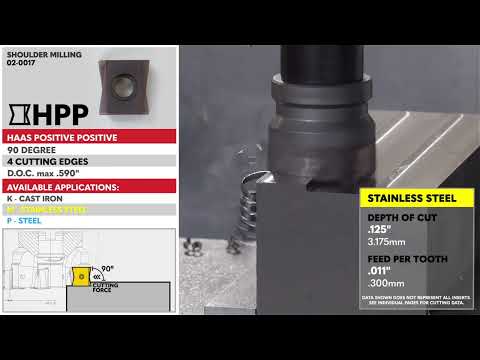

HPP – Haas Positive Positive
HSHF – Haas Square High Feed
HS6NP – Haas Sq Shoulder 6 Negative Positive
