Low-Profile Spring Clamps
Low-Profile Spring Clamps are a combination of a steel wedge and spring-loaded base designed to quickly clamp workpieces to fixture plates. Capable of clamping one or two workpieces with one clamp.
Features
- Low-profile clamp for maximum tool access
- Capable of clamping one or two parts using one clamp
- Various sizes and edge types available
- Quick to set up and customize
Different Edges for Different Purposes
- Flat Edge is designed to reduce marks on the workpiece while still possessing a high clamp force; best for second operations.
- Serrated Edge digs into the workpiece material for heavy-duty cutting; best for first operations.
- Hole Edge has threaded holes on the clamping faces to add compatible spacers to the spring clamp. This edge allows for parts of various dimensions to be clamped with the same fixture plate by interchanging the spacers.

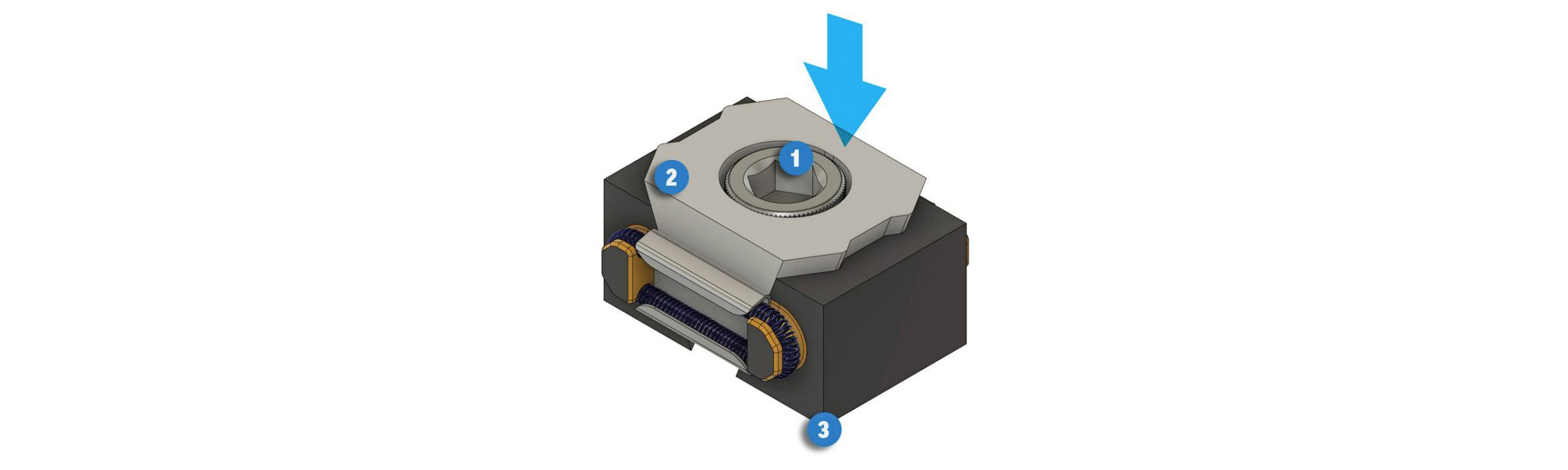

Flat Edge
1. Cap Screw | 2. Wedge | 3. Flat Edge

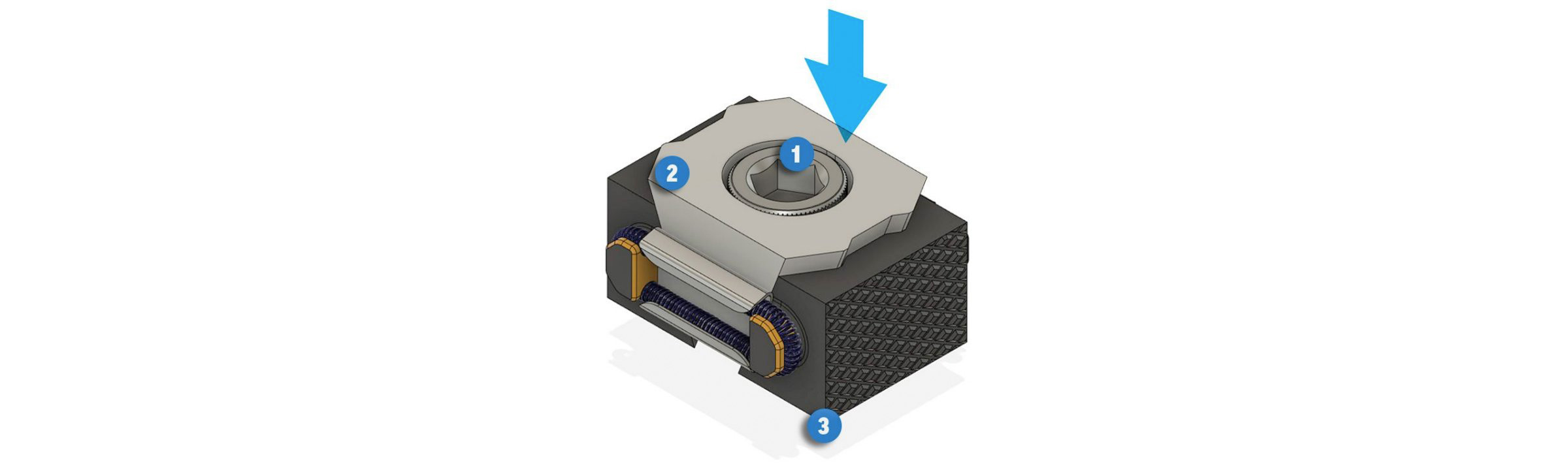

Serrated Edge
1. Cap Screw | 2. Wedge | 3. Serrated Edge
Hole Edge
1. Cap Screw | 2. Wedge | 3. Hole Edge

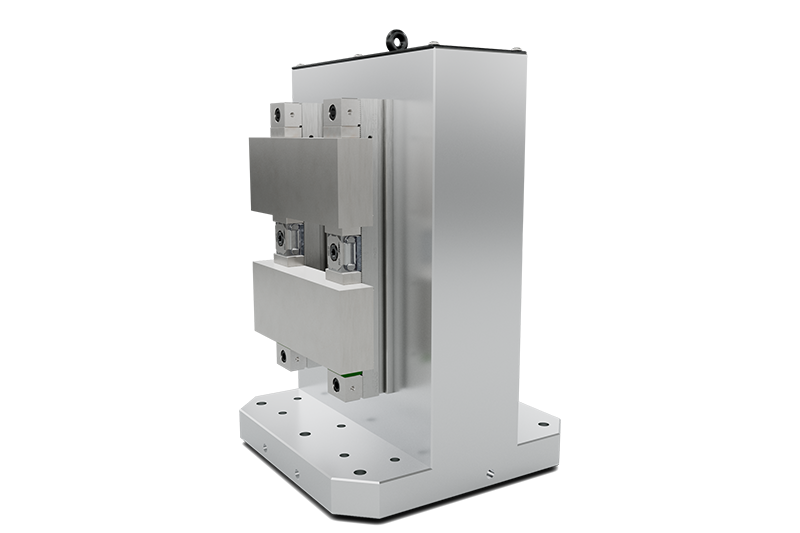

How Can I Fixture Parts Using Low Profile Spring Clamps?
These can quickly clamp multiple parts to help increase production. Check out below for examples of these clamps in use.

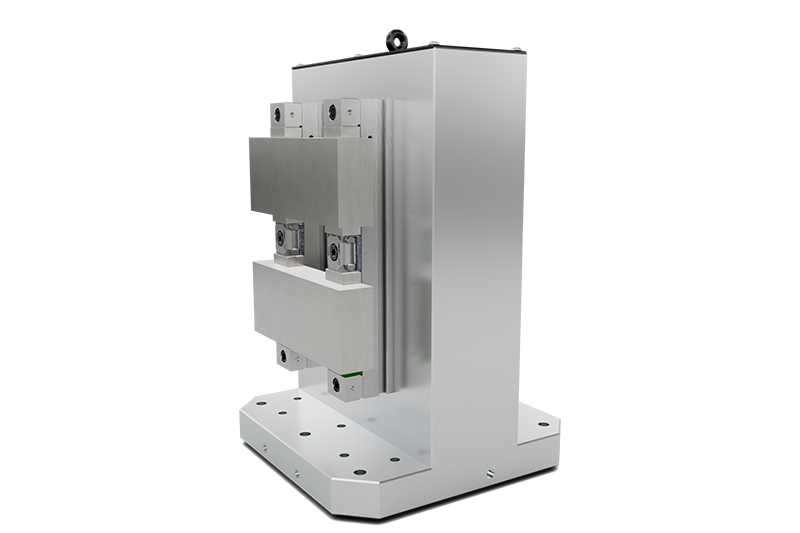

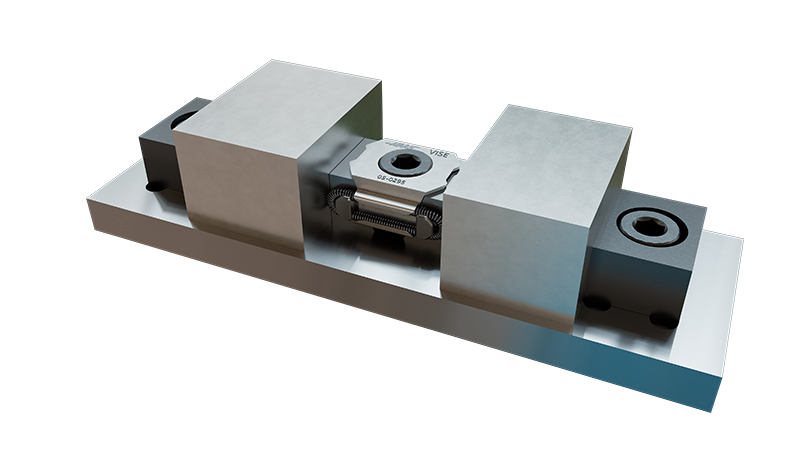

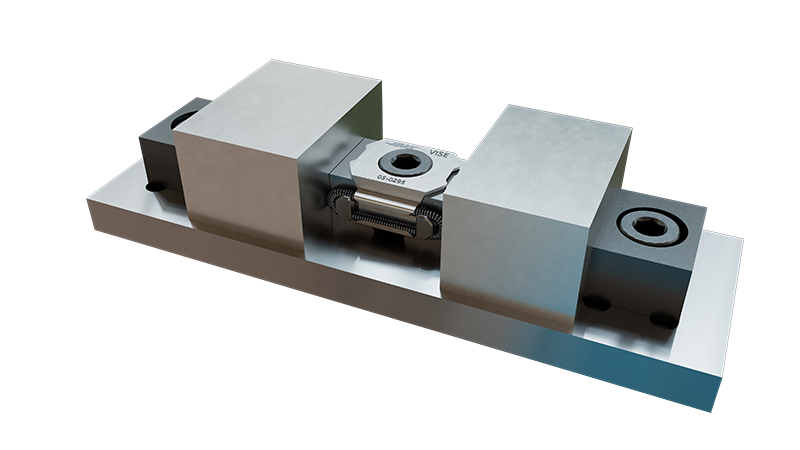

Square Parts
Using the flat or serrated low-profile spring clamps, square stock can be held by having the clamp act as a wedge, clamping the workpiece up against a machined or other part stop.

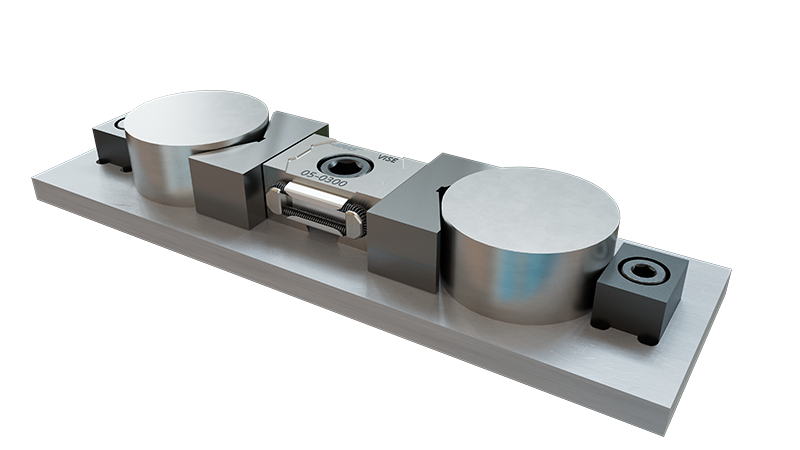

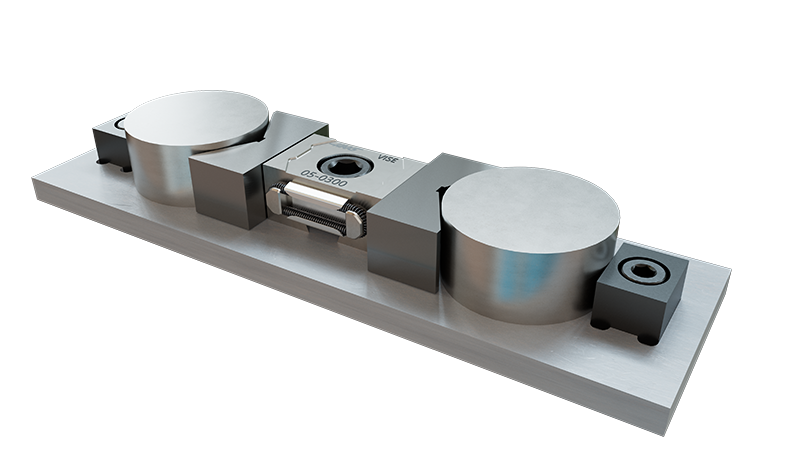

Round Parts
Using the hole low-profile spring clamp and the V-block spacer, round parts can be clamped by the V-block spacer clamping the workpiece up against a machined or other part stop.

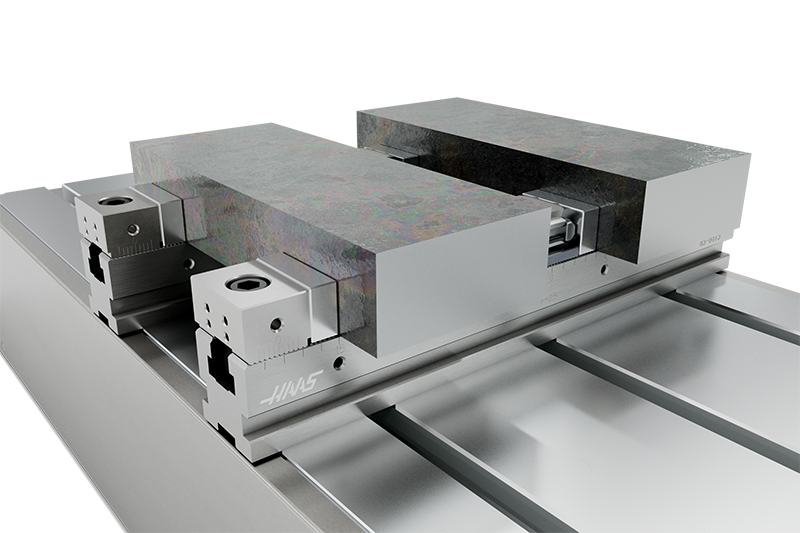

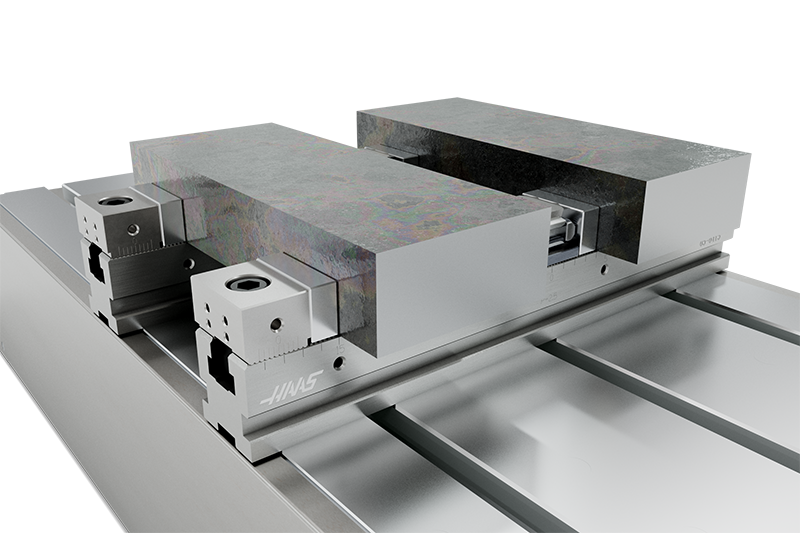

Rail Fixtures & Kits
Rail Fixtures are a very versatile way to clamp your workpieces for machining. These fixtures can be quickly reconfigured for multiple applications and workpieces to best suit your shop’s needs!
Features
- Suitable for multiple workpieces
- High clamp force
- Quick and easy set up
- Available in 400, 500, and 600mm lengths

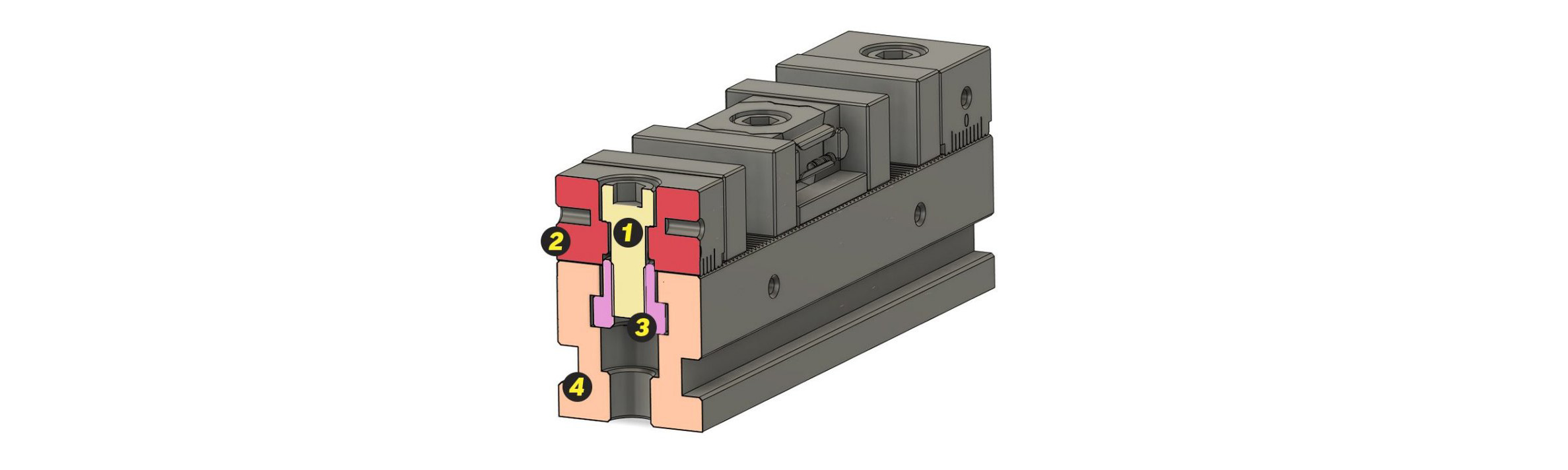

Low-Profile Spring Clamp
1. Cap Screw | 2. Low-Profile Spring Clamp | 3. Base Plate | 4. T-Nut | 5. Rail Fixture

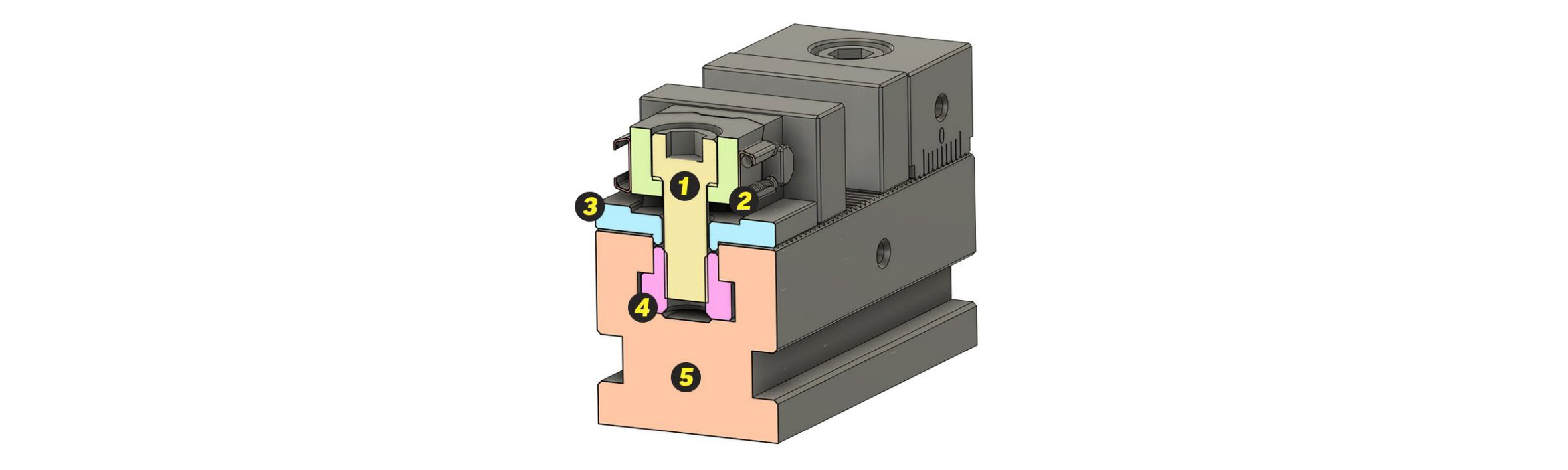

Workpiece Rail Stop
1. Cap Screw | 2. Rail Stop | 3. Rail Stop T-nut | 4. Rail Fixture
What Type of Parts Can I Hold Using Rail Fixtures?

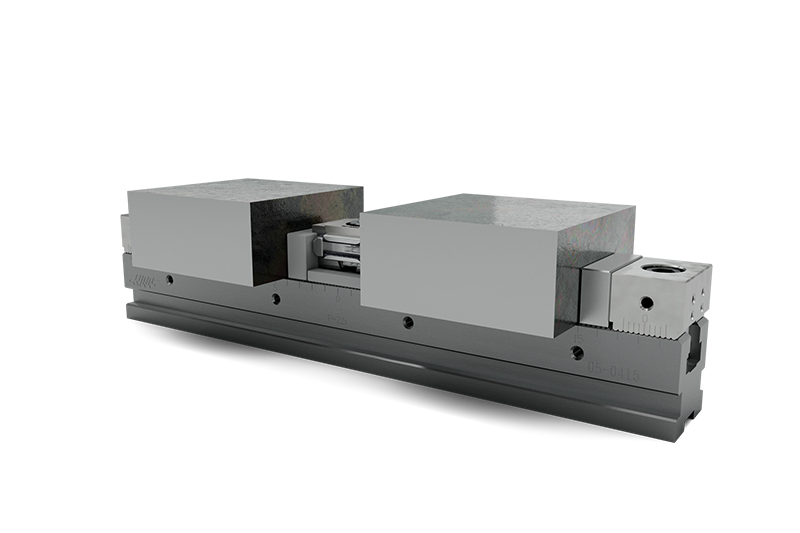

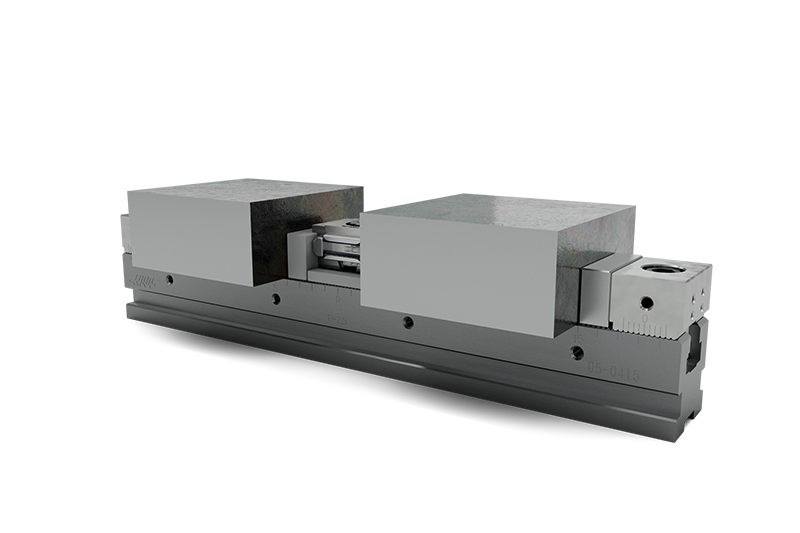

Square/Rectangular Parts
Using the flat, serrated, or hole low-profile spring clamps, square stock can be held by having the clamp act as a wedge, clamping the workpiece against the rail stop.

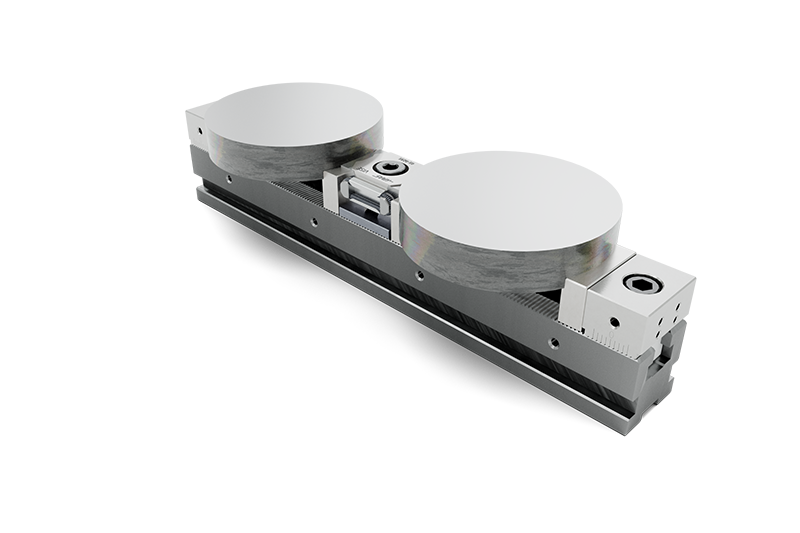

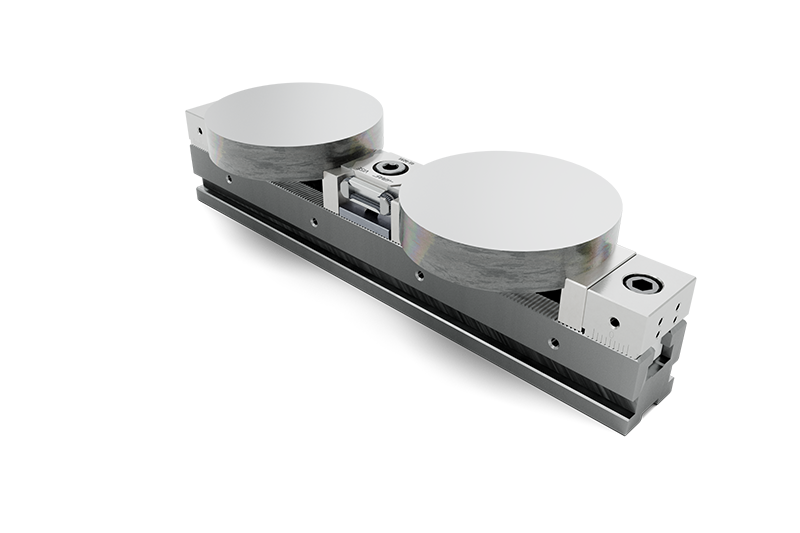

Round/Custom Parts
Using the hole low-profile spring clamp and the rail soft Jaws, round and custom parts can be clamped, when soft jaws are machined to match your workpiece.
