Get an additional 5% OFF for each tombstone you purchase, up to 25% OFF.
5% OFF 2 Tombstones | 10% OFF 3 Tombstones | 15% OFF 4 Tombstones | 20% OFF 5 Tombstones | 25% OFF 6+ Tombstones
*Promotion excludes tombstone kits
HAAS TOMBSTONES
Tombstones are the ultimate way to maximize your part production within a single cycle. Combine that with a Pallet Pool, and you've got some serious throughput! Haas Tooling's lineup of cast iron & aluminum tombstones offers the perfect balance of weight and rigidity. They're light enough without maxing out the weight limit of your machine and rigid enough to ensure expected part quality.
- Fits both metric & inch pallets
- All mounting and lifting hardware is included
- Chip and coolant cover included
- Blank walls for any workholding application
- Tombstones do not include a feature for centering and are designed for use with machines with DWO and TCPC
CAST IRON: Weight: 220 lb \ 100 kg
ALUMINUM: Weight: 131 lb \ 60 kg

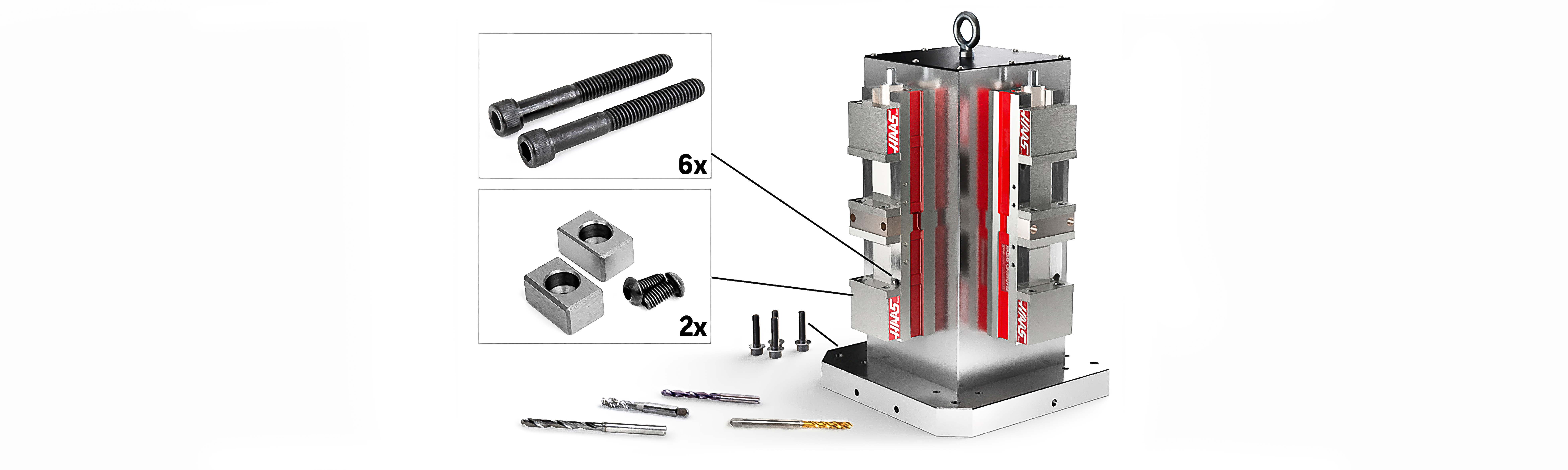

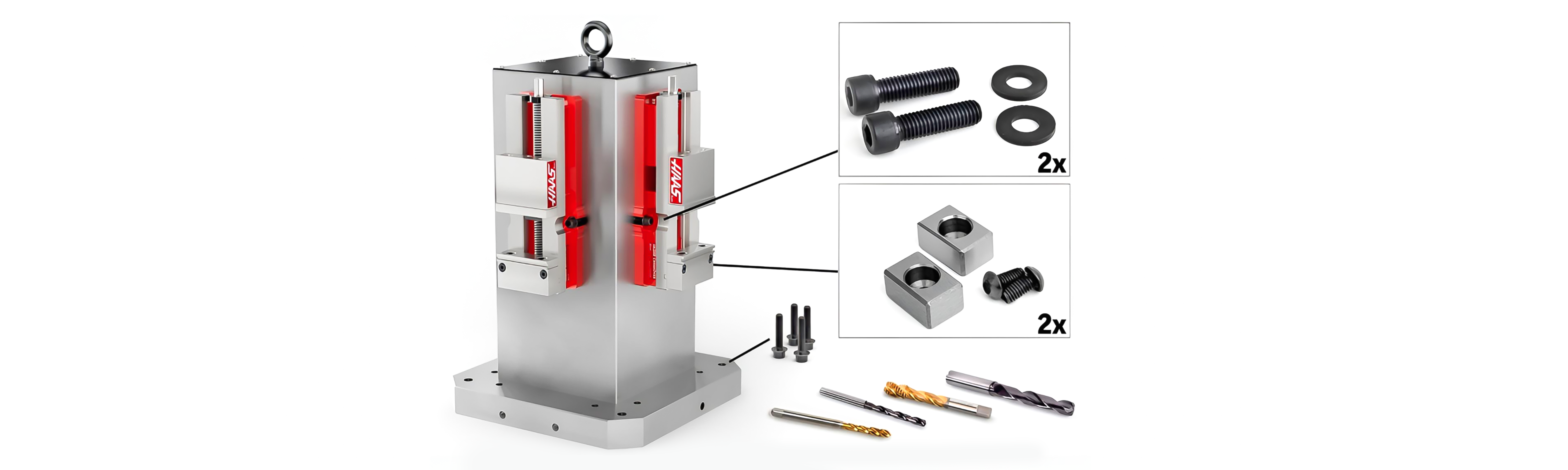

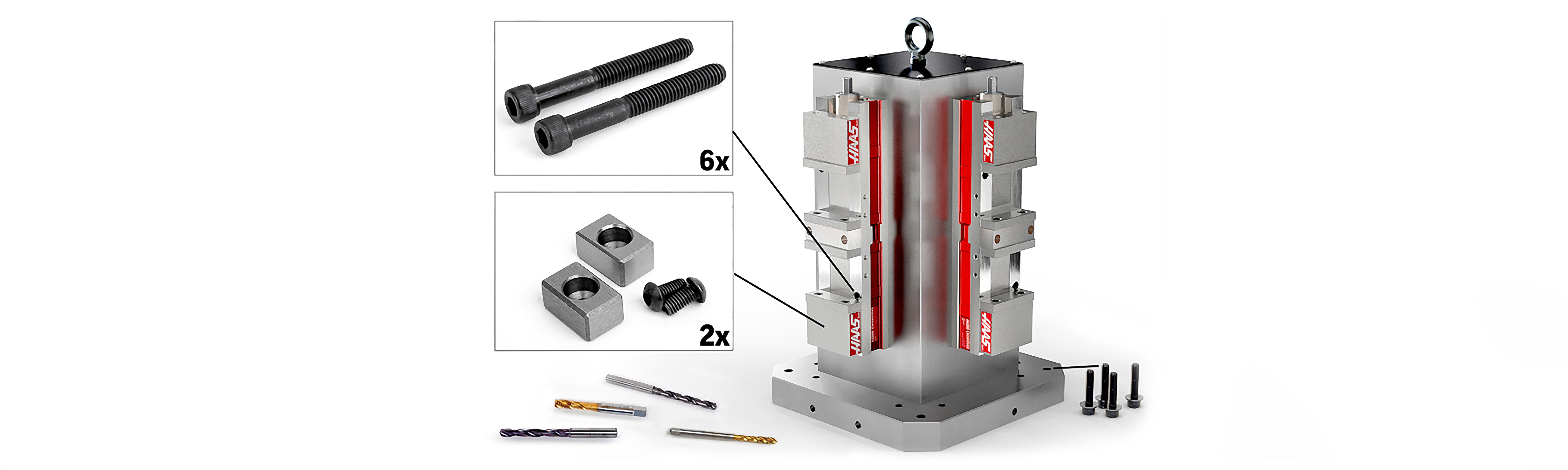

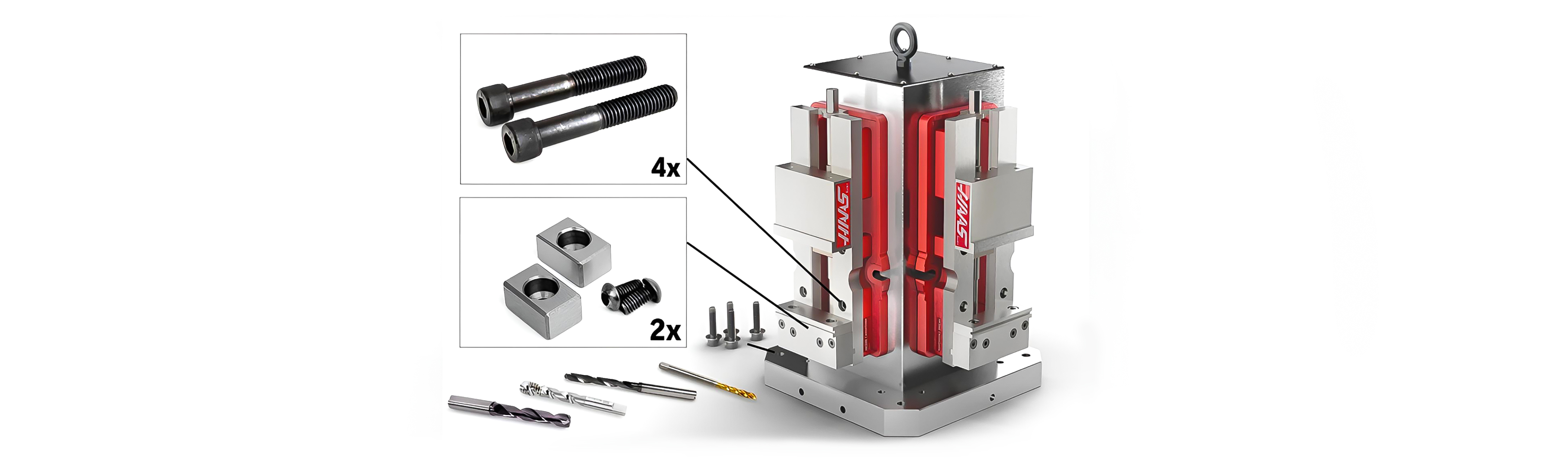

HAAS TOMBSTONE KITS
Haas makes purchasing tombstones even easier with a complete lineup of tombstone kits. Kits offer all you need for mounting the tombstone to the machine plus including the drills and taps to easily prep your tombstone for mounting of vises.
Kits Include:
- Cast Iron or Aluminum Tombstone
- 2 Vises
- Drills and Taps for Vise Mounting
- Tombstone and Vise Mounting Hardware
All Haas Tombstone Kits include vise-body locating key stops, which aid in supporting the vise for easy installation.
All Included
Everything For Mounting | Everything For Lifting
Haas Tombstones offers all of the hardware needed to lift and mount your tombstone. Including metric and inch mounting hardware for both styles of pallets.
*Remove fixturing and work holding before lifting tombstone
Lighter weight | Same rigidity
SAME RIGIDITY, HALF THE WEIGHT OF OTHER TOMBSTONES
FEA Optimized For Maximum Rigidity & Less Weight
How Did We Save The Weight & Maintain Rigidity?
- Gussetting on Interior walls
- Top & Bottom Face Pocketing
- Cautious Wall Thinning
- Base Size Reduction
Which Tombstone would you use on an EC-400?
EC-400 W/ 6+1 Pallet Pool Max Pallet Weight = 500 lb / 227 kg
Non-Haas Tombstones
Cast Iron Tombstone: 450 lb \ 204 kg
Plus Workholding & Part Weight:
- 4 Workholding Vises: 120 lb \ 54 kg
- Total Parts Weight: 130 lb \ 59 kg
Total Pallet Weight (Exceeds Capacity): 700 lb \ 317 kg
Haas Tombstones
Cast Iron Tombstone: 220 lb \ 100 kg
Plus Workholding & Part Weight:
- 4 Workholding Vises: 120 lb \ 54 kg
- Total Parts Weight: 130 lb \ 59 kg
Total Pallet Weight: 470 lb \ 213 kg
How Much Part Weight Is Left After Adding Vises?
TOTAL PART WEIGHT = MAX PALLET WEIGHT– TOMBSTONE WEIGHT – VISE WEIGHT
See how much part weight is leftover after adding vises to your tombstones to make sure you don't overload your pallet. Don't forget the max pallet weight of your machine!
EC-400 W/ 6+1 Pallet Pool Max Pallet Weight = 500 lb / 227 kg"
- Cast Iron Tombstone Weight: 220 lb / 100 kg
- Aluminum Tombstone Weight: 131 lb / 60 kg
TOTAL PART WEIGHT = MAX PALLET WEIGHT– TOMBSTONE WEIGHT – VISE WEIGHT

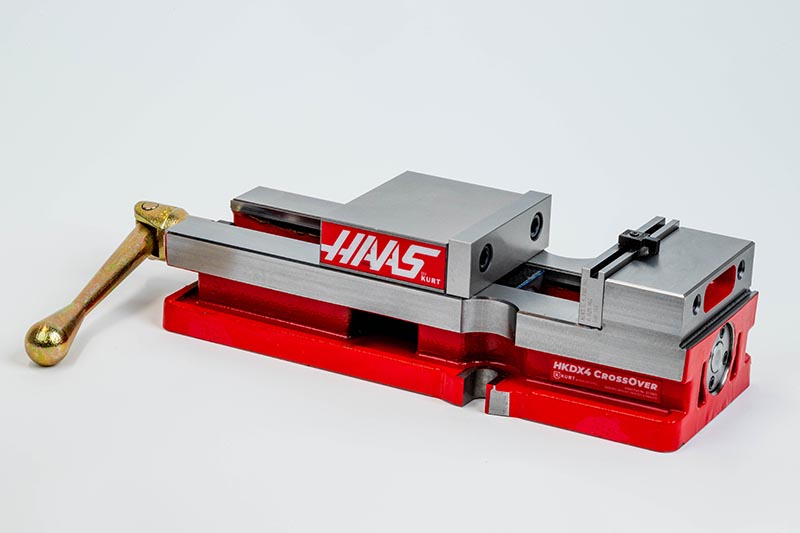

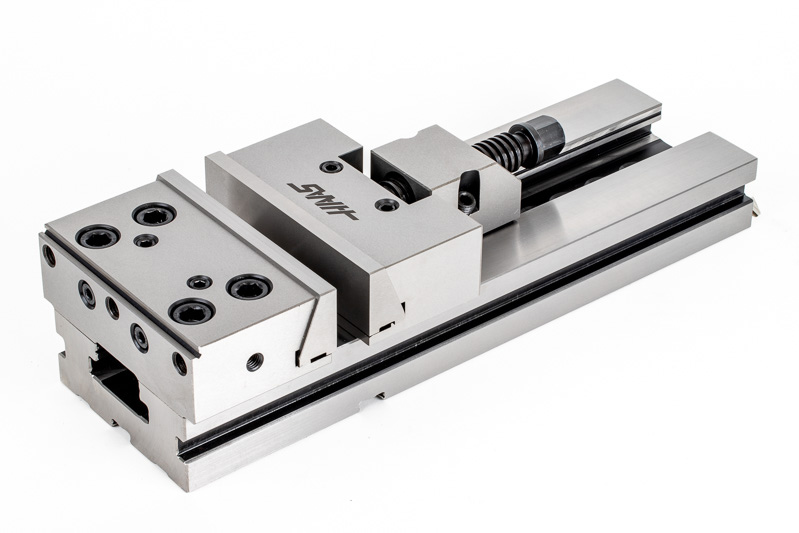

Haas Workholding By Kurt 4" Fixed Jaw Vise
Vise Weight: 30 lb/ea | 14 kg/ea
Max Qty: 4
Total Weight: 120 lb/56 kg
Cast Iron
Available Raw Material Weight: 160 lb / 73 kg
Aluminum
Available Raw Material Weight: 249 lb / 113 kg

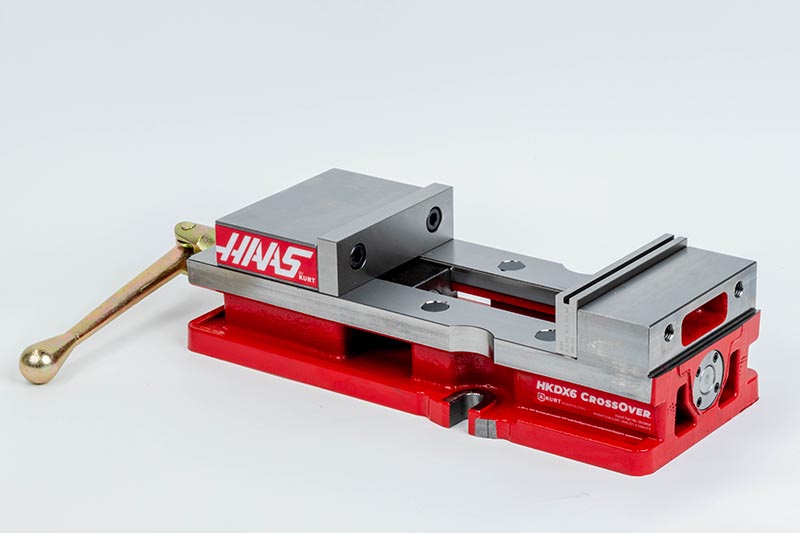

Haas Workholding By Kurt 6" Fixed Jaw Vise
Vise Weight: 78 lb/ea | 35 kg/ea
Max Qty: 4
Total Weight: 312 lb/140 kg
Cast Iron
X
Aluminum
Available Raw Material Weight: 57 lb / 26 kg

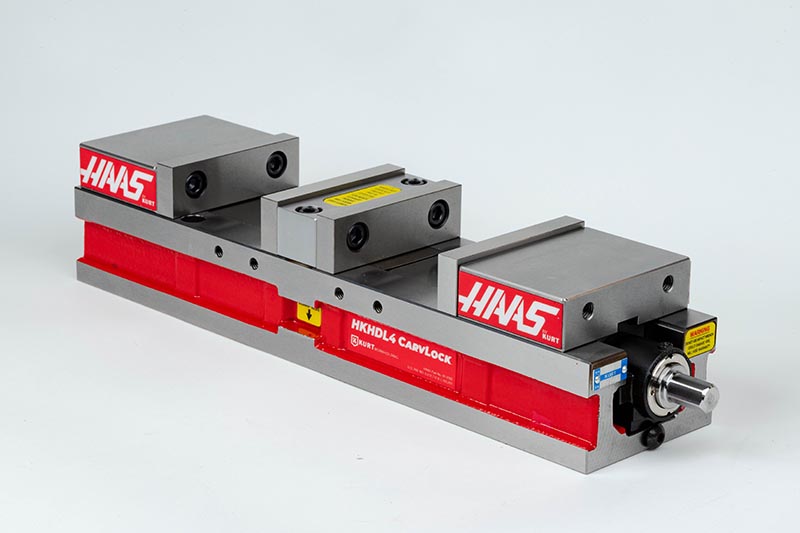

Haas Workholding By Kurt, 4" Double-Station Fixed-Jaw Vise
Vise Weight: 42 lb/ea | 19 kg/ea
Max Qty: 8
Total Weight: 336 lb/76 kg
Cast Iron
X
Aluminum
Available Raw Material Weight: 33 lb / 15 kg

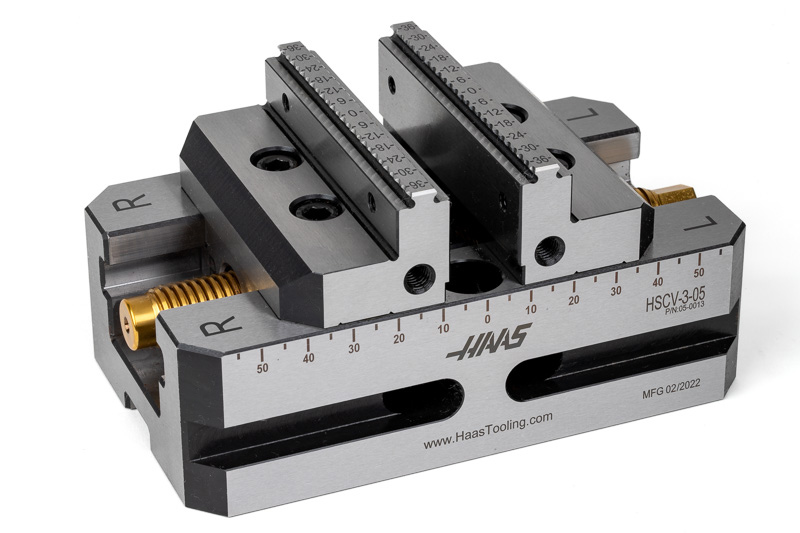

3" Self-Centering Vise
Vise Weight: 8.4 lb/ea | 4 kg/ea
Max Qty: 24
Total Weight: 202 lb/96 kg
Cast Iron
Available Raw Material Weight: 78 lb / 35 kg
Aluminum
Available Raw Material Weight: 167 lb / 76 kg
150 x 200mm Modular Vise
Vise Weight: 66 lb/ea | 30 kg/ea
Max Qty: 4
Total Weight: 264 lb/120 kg
Cast Iron
Available Raw Material Weight: 16 lb / 7 kg
Aluminum
Available Raw Material Weight: 105 lb / 48 kg
Available Part Weight on Tombstone Kits
Kits include 2 Haas Workholding by Kurt Vises and a 400mm Tombstone
TOTAL PART WEIGHT = MAX WEIGHT– TOMBSTONE WEIGHT – VISE WEIGHT
Two 4" Fixed Jaw Vises & 400mm Tombstone Kit
Aluminum
Total Kit Weight: 191 lb / 86 kg
Available Raw Material Weight: 309 lb / 104 kg
Cast Iron
Total Kit Weight: 280 lb / 127 kg
Available Raw Material Weight: 220 lb / 99 kg
Two 6" Fixed Jaw Vises & 400mm Tombstone Kit
Aluminum
Total Kit Weight: 287 lb / 130 kg
Available Raw Material Weight: 213 lb / 96 kg
Cast Iron
Total Kit Weight: 376 lb / 170 kg
Available Raw Material Weight: 124 lb / 56 kg
Two 4" Double-Station Vises & 400mm Tombstone Kit
Aluminum
Total Kit Weight: 199 lb / 90 kg
Available Raw Material Weight: 301 lb / 136 kg
Cast Iron
Total Kit Weight: 288 lb / 288 kg
Available Raw Material Weight: 212 lb / 98 kg
Haas Tombstones - Workholding Applications
Haas Tombstones!
