Product Overview
Reduction Sleeves for ID Toolholders

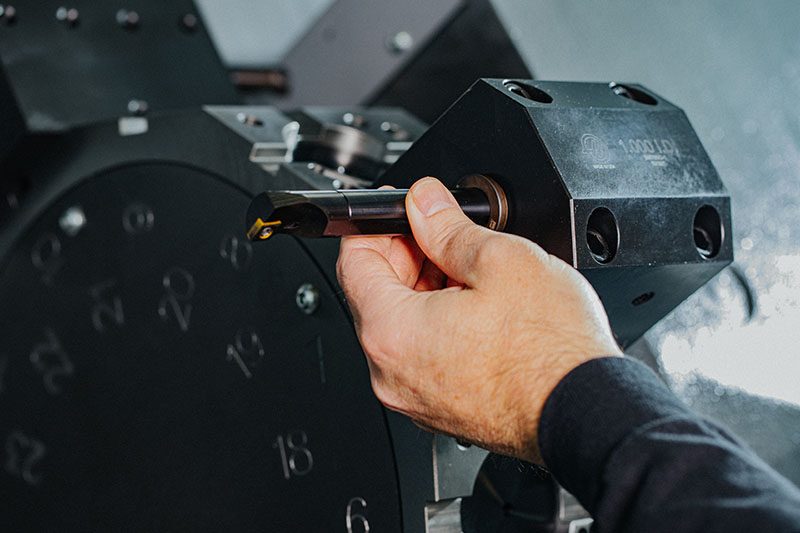

Expand the useful range of your large-diameter ID toolholders with these high-quality reduction sleeves. Simply slide the appropriate sleeve into the larger bore of the toolholder to adapt it to handle smaller tools.
- Expand the range of your existing ID toolholders
- Black oxide coating for corrosion resistance
- Haas-designed OEM tooling
Haas Tooling Reduction Sleeve Types

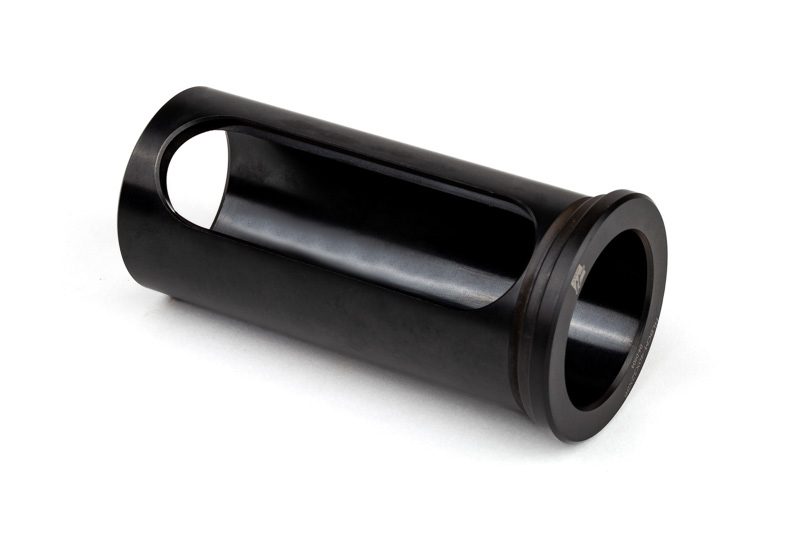

C-Type - Slotted
- Slotted side hole allows for a versatile fit across many toolholders series
- Great for holding shank tools, drills, boring bars, reamers, and more
- Expand the capabilities of your ID toolholder
- Black oxide coating

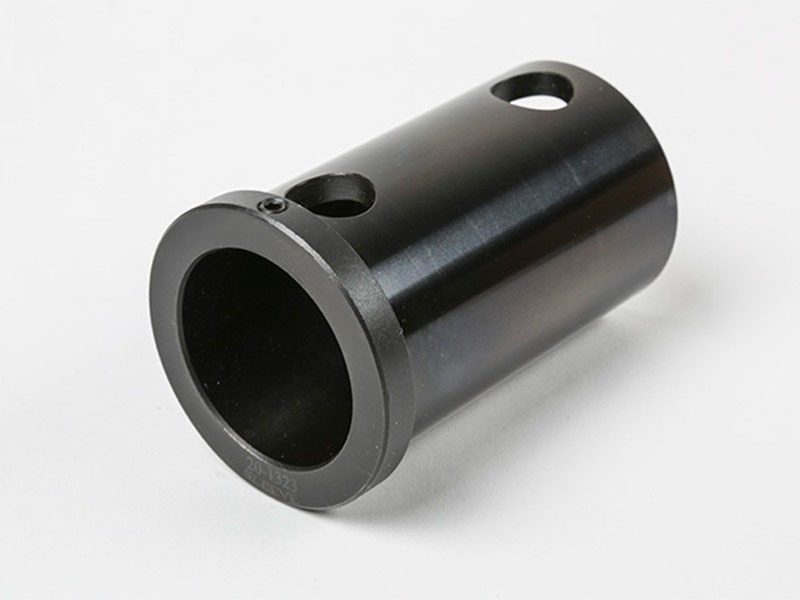

LB-Type - Two holed
- Specific hole spacing for a tighter fit in the toolholder
- Inch hole spacing - 2.75"
- Metric hole spacing - 69.85mm
- Added set screw for easier tool setup
- Expand the capabilities of your ID toolholder
- Black oxide coating
Note: This sleeve type is currently only available in the U.S.

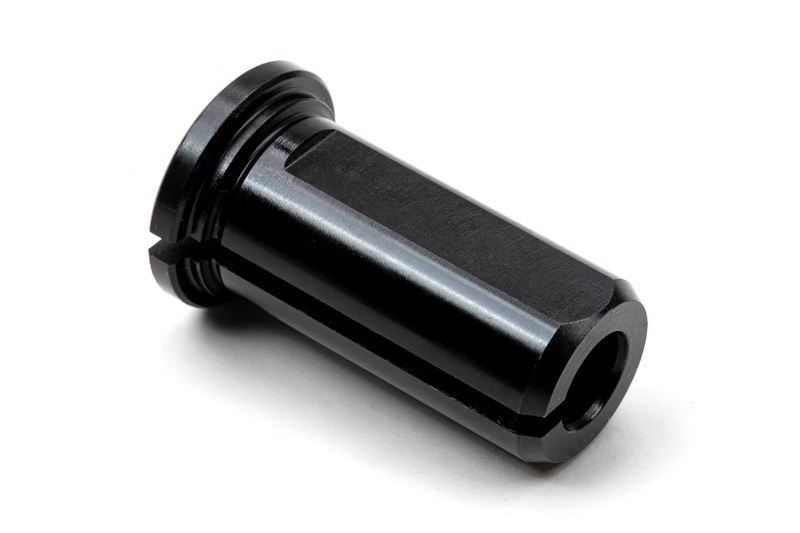

B-TYPE - SPLIT
- Holds Round-Shank Tools: Secures round tools like smooth-shank drills.
- Outer Diameter Flat: Aligns with toolholder set screws.
- Indirect Compression Clamping: Compresses the split body onto the tool.
- Front Shoulder Lip: Prevents slippage and aids easy removal.
- 360-Degree Grip Force: Collapses uniformly to guarantee concentric alignment.
- Vibration Chatter Suppression: Minimizes deflection during long-overhang boring operations.
- Inch OD to Metric ID bushings available
