Uniforce® Clamps

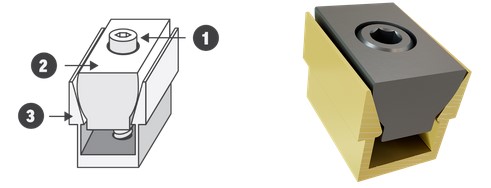

Uniforce® clamps are a combination of a steel wedge and aluminum channel designed to quickly clamp two parts with equal force.
Machinable version clamps are also available and can be purchased with or without locking plates. The locking plate retains the machinable jaws in a rigid, geometrically square position, to allow for machining of the workpiece profile. Once the jaws have been machined the locking plate is removed before clamping the workpiece.
Features
- Usable on flat or round workpieces
- Milled pocket not required to install clamps
- Clamp two parts equally using one clamp
- Aluminum clamping surface less likely to leave marks on the workpiece
What's Included

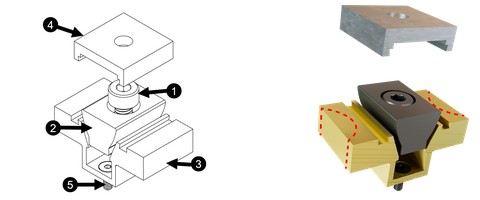

Machinable
1. Cap Screw | 2. Steel Wedge | 3. Machinable Aluminum Jaw (7075-T6)
| 4. Locking Plate (Optional) | 5. Mounting Screws
How Can I Fixture Parts Using Uniforce® Clamps?
These can quickly clamp multiple parts to help increase production. Check out below for examples of these clamps in use.

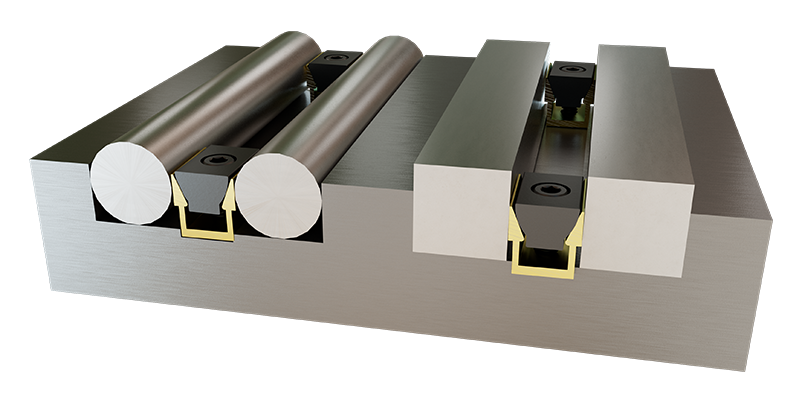

Square Or Round Parts
Using the non-machinable Uniforce® clamps, round or square stock can be held by having the clamp act as a wedge, clamping the workpiece up against a machined part stop.

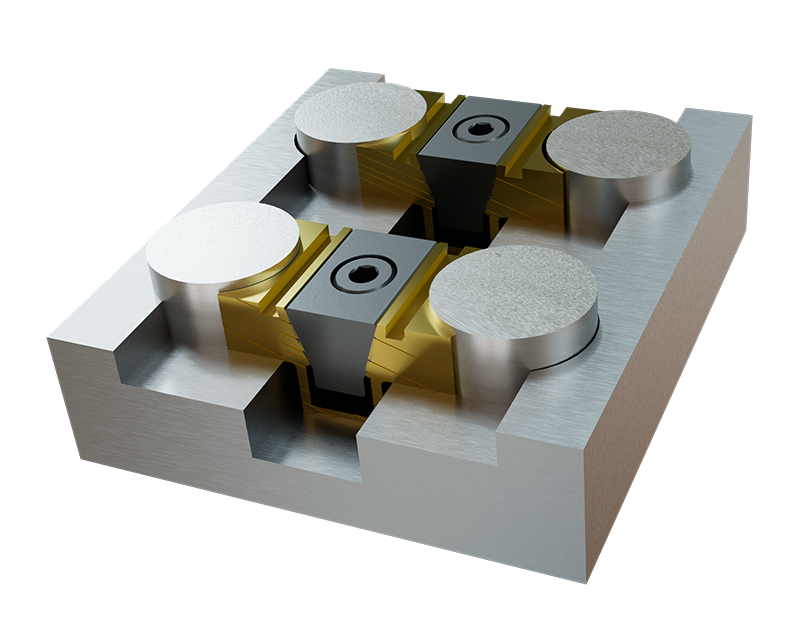

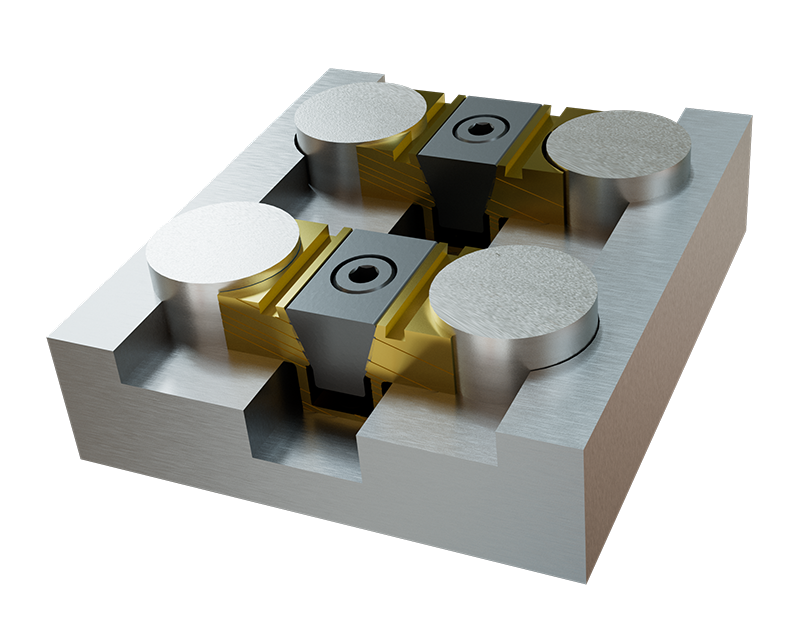

Profile Parts
Using the machinable clamps, profile parts can be clamped by machining the profile of the workpiece into both sides of the clamp and clamping the workpiece up against a machined part stop.
