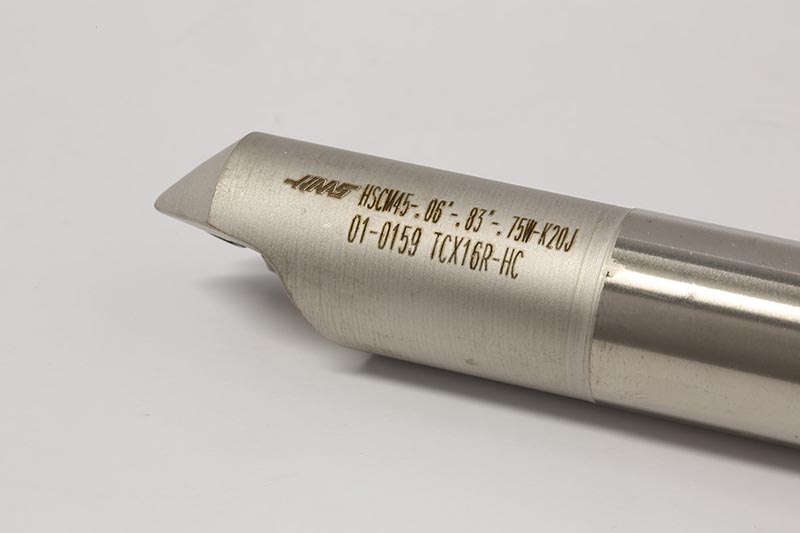

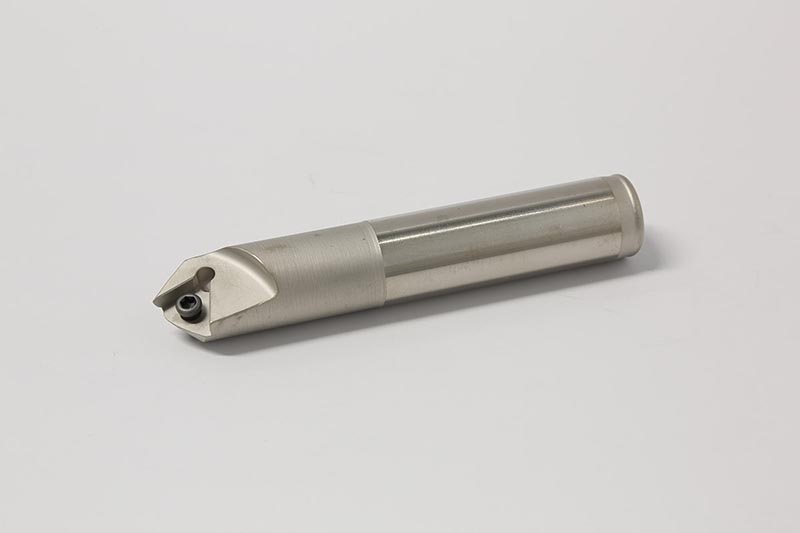

45° Indexable Chamfer Mill, 0.008" - 0.835" Diameter x 3/4" Shank x 4.331" Overall Length, 1 Insert
Part # 01-0159HSCM45-.06" -.83"-.75W
Description
This 45-degree indexable chamfer mill has a 0.008" minimum cutting diameter and a maximum cutting diameter of 0.835". It has a 3/4" shank diameter and an overall length of 4.331". It takes 1 triangle chamfer insert (TCX16R), which is available in grades for steel, stainless steel, cast iron, aluminum/non-ferrous materials, and hardened metals.Technical specifications
System of Measurement | Inch - ANSI |
Tool Or Insert | Tool |
[ØDC] Cutting Diameter | 0.008 in |
[ØDCX] Max Cutting Diameter | 0.835 in |
[ØDMM] Shank Diameter | 0.75 in |
[OAL] Overall Length | 4.331 in |
[LH] Head Length | 1.969 in |
[Ap] Max. Cutting Depth | 0.4 in |
[SIG°] Chamfer Angle | 45 |
[NOF] Number of Flutes | 1 |
Insert Size | TCX16R |
Weight | 0.6 lbs \ 0.3 kg |
Country of Origin | South Korea |
