System of Measurement	Inch - ANSI
Clamping Type	HN - Haas Notch
Tool Orientation	External
Hand of Tool	Right
Insert Style	Threading, Grooving, Profiling
Insert Size	2
Hand of Insert	Right
[LH] Head Length	0.75 in
[OAL] Overall Length	3.5 in
[H] Shank Height	0.5 in
[B] Shank Width	0.5 in
[f] Dimension	0.75 in
[T-MAX] Maximum Depth	0.138 in
Through Tool Coolant	No
Weight	0.3 lbs \ 0.1 kg
Country of Origin	USA

Shop Tooling

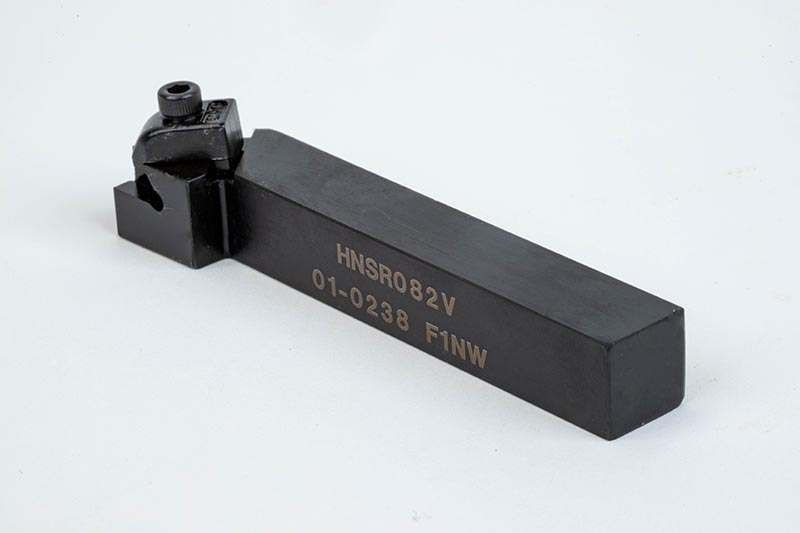

HNSR082V, 1/2" Square Steel Shank External (OD) Haas Notch Grooving/Threading Tool, Right-Hand, Insert Size 2

Download documents

Technical specifications

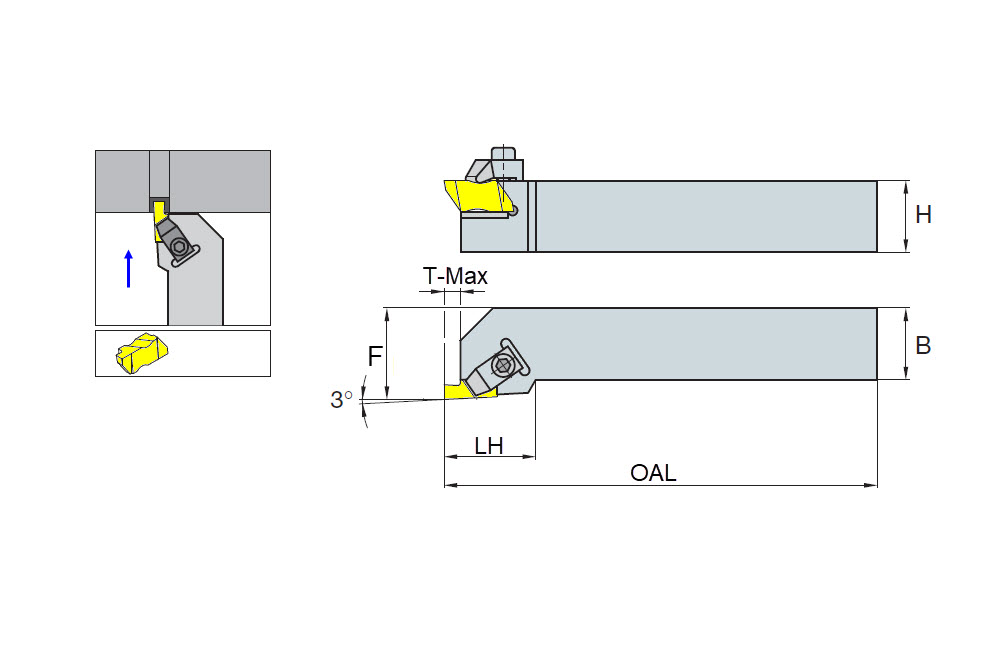

Technical Images
