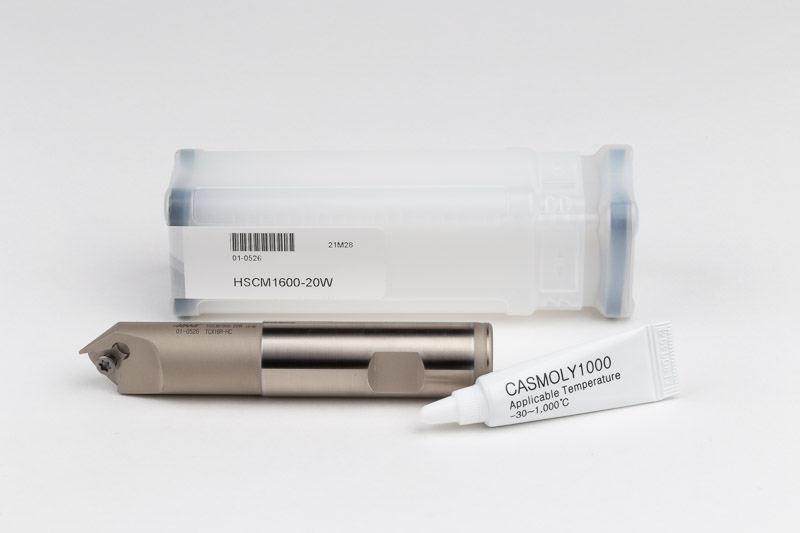

45° Indexable Chamfer Mill, 1.52mm - 21.2mm Diameter x 20.0mm Shank x 110mm Overall Length, 1 Insert
Part # 01-0526HSCM 1600-20W
Description

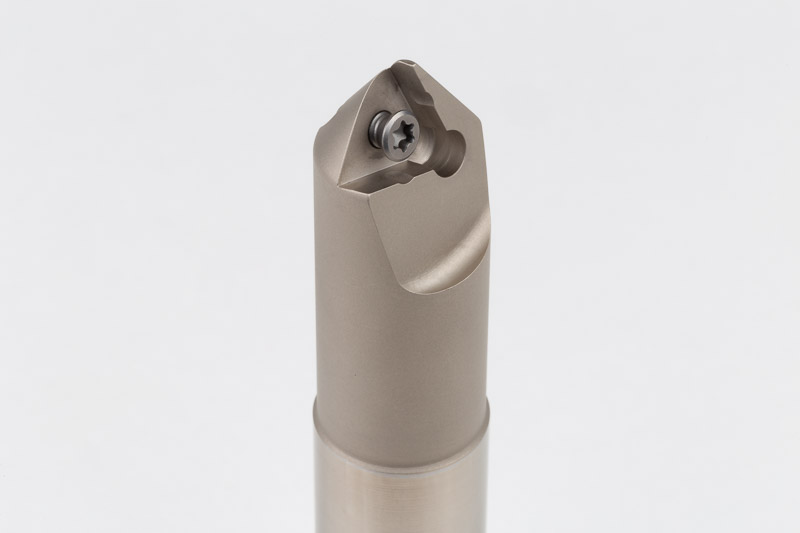

This 45-degree indexable chamfer mill has a 0.2mm minimum cutting diameter and a maximum cutting diameter of 21.2mm. It has a 20mm shank diameter and an overall length of 110mm. It takes 1 triangle chamfer insert (TCX16R), which is available in grades for steel, stainless steel, cast iron, aluminum/non-ferrous materials, and hardened metals.Technical specifications
System of Measurement | Metric - ISO |
Tool Or Insert | Tool |
[ØDC] Cutting Diameter | 0.2 mm |
[ØDCX] Max Cutting Diameter | 21.2 mm |
[ØDMM] Shank Diameter | 20.0 mm |
[OAL] Overall Length | 110.0 mm |
[LH] Head Length | 50.0 mm |
[Ap] Max. Cutting Depth | 10.0 mm |
[SIG°] Chamfer Angle | 45 |
[NOF] Number of Flutes | 1 |
Insert Size | TCX16R |
Weight | 0.7 lbs \ 0.3 kg |
Country of Origin | South Korea |
Technical Images

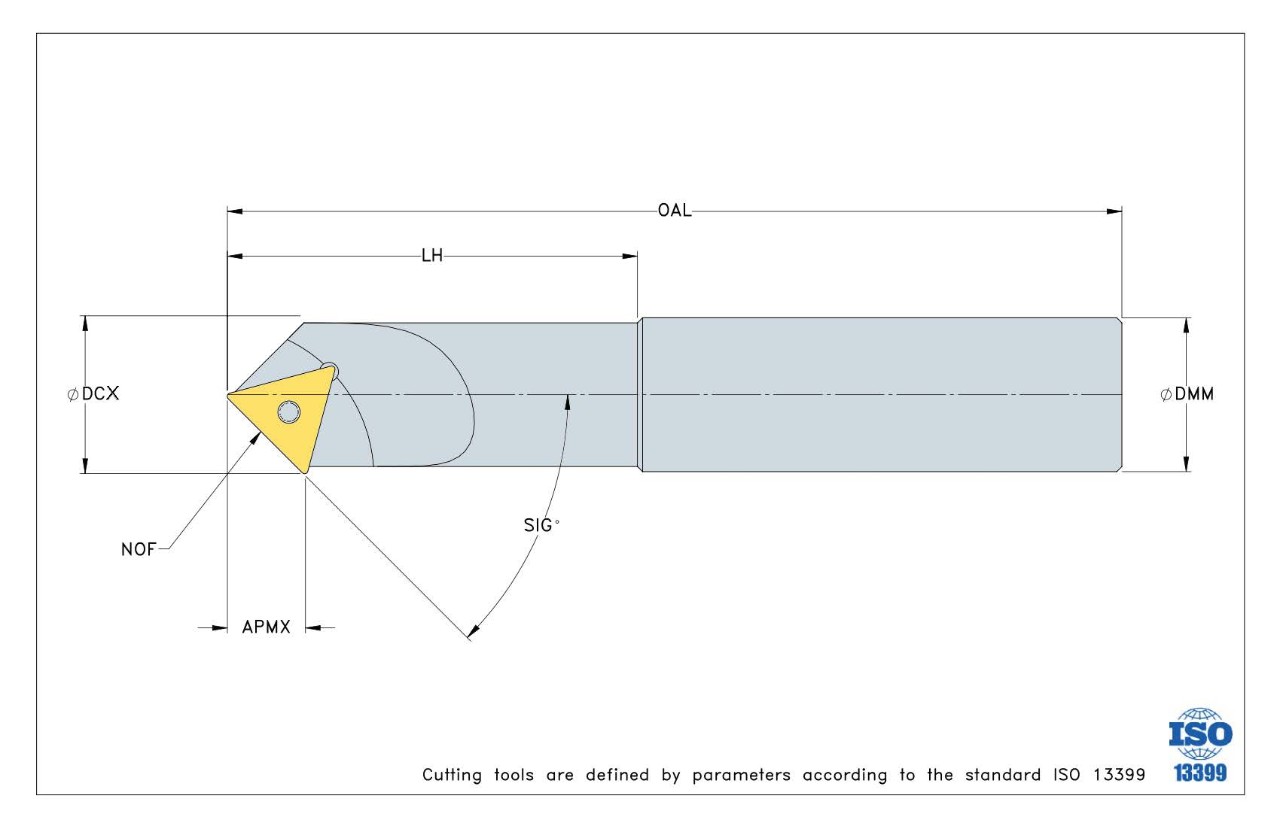

Enlarge Line Drawing & Specs
