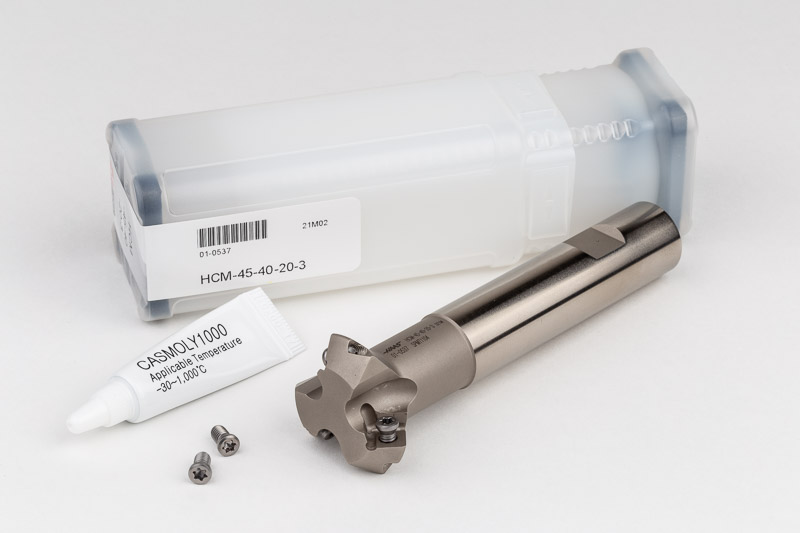

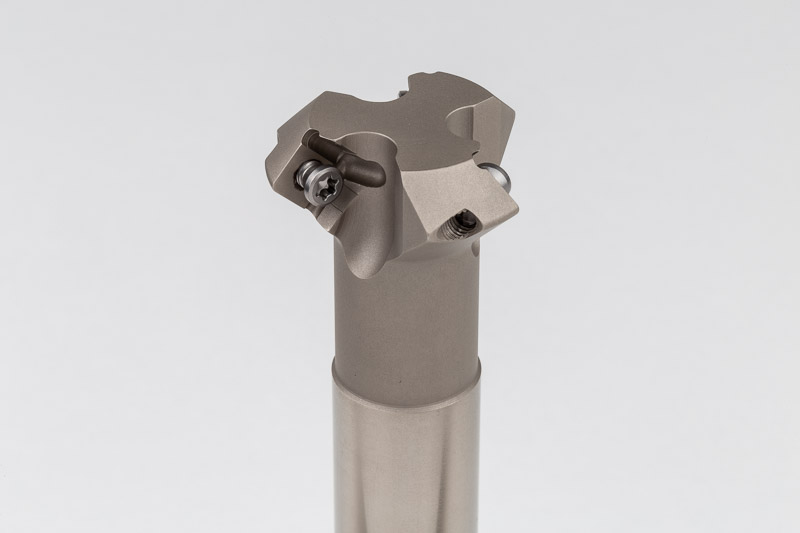

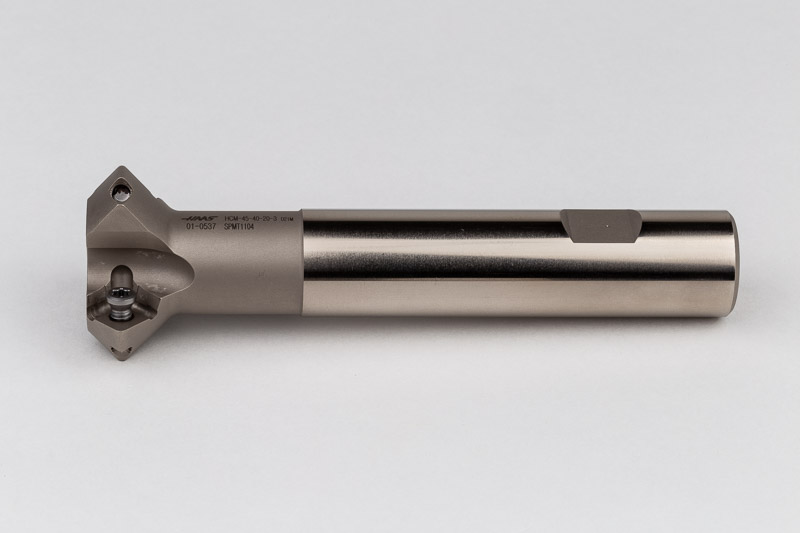

45° Indexable Chamfer Mill, 25.0mm - 39.93mm Diameter x 20.0mm Shank x 120.0mm Overall Length, 3 Inserts
Part # 01-0537HCM-45-40-20-3 45 DEG CHAMFER MILL
Description
This 45-degree indexable chamfer mill has a 25mm minimum cutting diameter and a maximum cutting diameter of 39.93mm. It has a 20mm shank diameter and an overall length of 120mm. It takes 3 square chamfer inserts (SPㅁㅁ1104ㅁㅁ), which are available in grades for steel, stainless steel, cast iron, aluminum/non-ferrous materials, and hardened metals.Technical specifications
System of Measurement | Metric - ISO |
Tool Or Insert | Tool |
[ØDC] Cutting Diameter | 25.0 mm |
[ØDCX] Max Cutting Diameter | 39.93 mm |
[ØDMM] Shank Diameter | 20.0 mm |
[OAL] Overall Length | 120.0 mm |
[LH] Head Length | 40.0 mm |
[Ap] Max. Cutting Depth | 7.0 mm |
[SIG°] Chamfer Angle | 45 |
[NOF] Number of Flutes | 3 |
Insert Size | SPㅁㅁ1104ㅁㅁ |
Weight | 0.7 lbs \ 0.3 kg |
Country of Origin | South Korea |
Technical Images

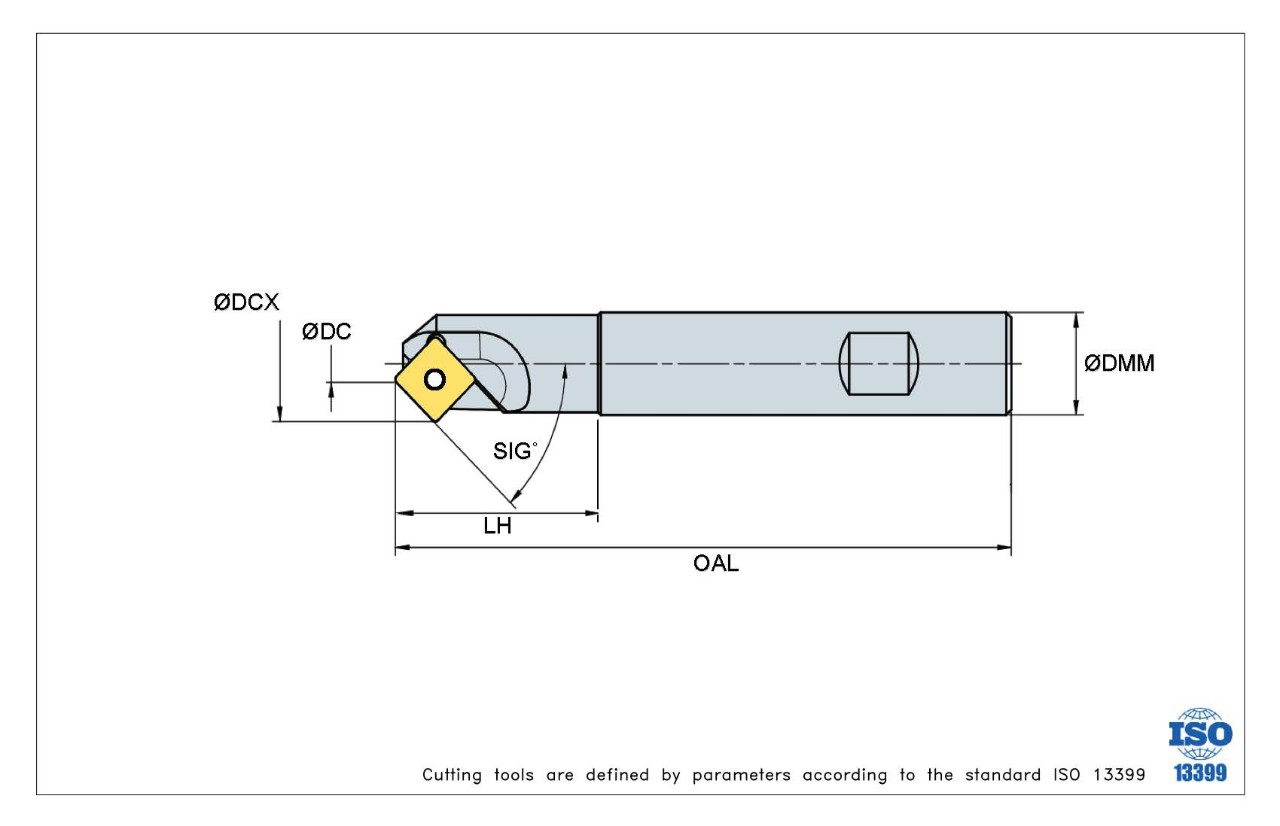

Enlarge Line Drawing & Specs
