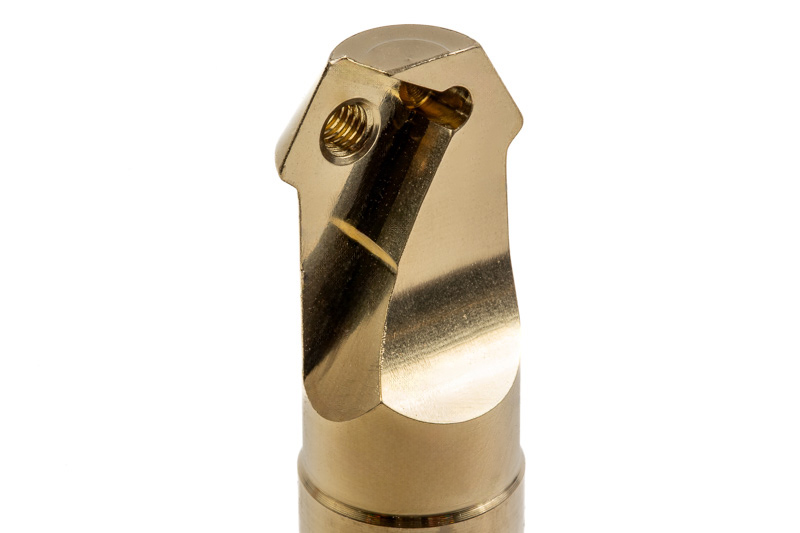

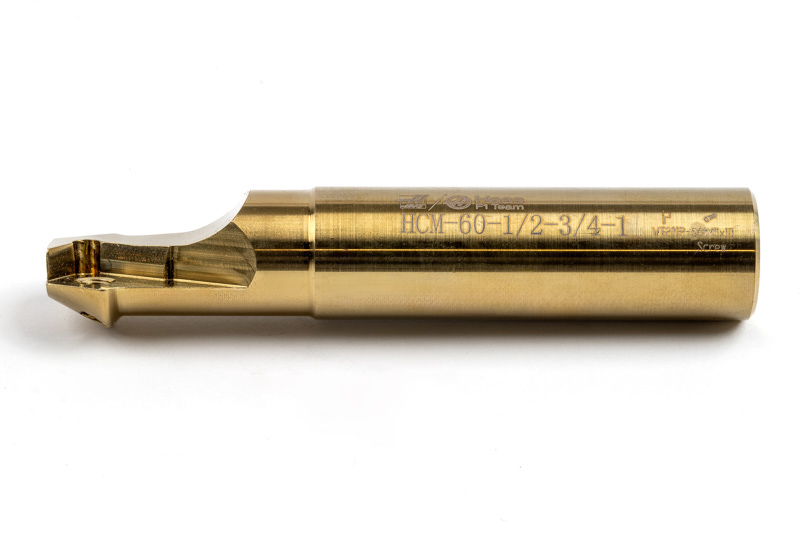

30° Indexable Chamfer Mill, 0.5 in \ 1/2" - 0.94" Diameter x 3/4" Shank x 4" Overall Length, 1 Insert
Part # 01-0764HCM-30-1/2-3/4-1
Description
This 30-degree indexable chamfer mill has a 0.5 in \ 1/2" minimum cutting diameter and a maximum cutting diameter of 0.94". It has a 3/4" shank diameter and an overall length of 4". It takes 1 square chamfer insert (SPㅁㅁ1204ㅁㅁ), which is available in grades for steel, stainless steel, cast iron, and aluminum/non-ferrous materials.Technical specifications
System of Measurement | Inch - ANSI |
Tool Or Insert | Tool |
[ØDC] Cutting Diameter | 0.5 in |
[ØDCX] Max Cutting Diameter | 0.94 in |
[ØDMM] Shank Diameter | 0.75 in |
[OAL] Overall Length | 4.0 in |
[LH] Head Length | 1.5 in |
[Ap] Max. Cutting Depth | 0.377 in |
[SIG°] Chamfer Angle | 30 |
[NOF] Number of Flutes | 1 |
Insert Size | SPㅁㅁ1204ㅁㅁ |
Weight | 0.4 lbs \ 0.2 kg |
Country of Origin | China |
Technical Images
Enlarge Line Drawing & Specs
