HPAL2, 1-1/4" Ø Indexable End Mill, 1-1/4" Shank x 5" Overall Length x 90° Lead Angle, 2 Flute, TSC
Part # 01-0777HPALE 1-1/4 x 1-1/4 x 3/4"-2WFC IE MILL
Description

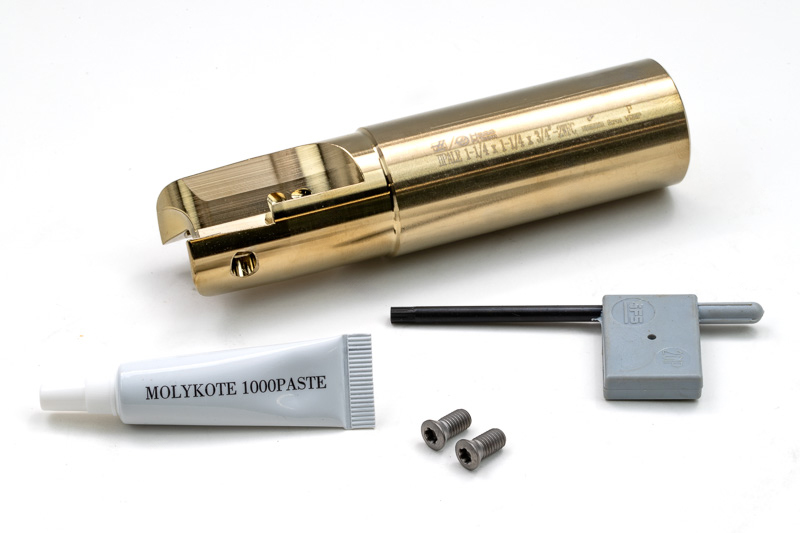

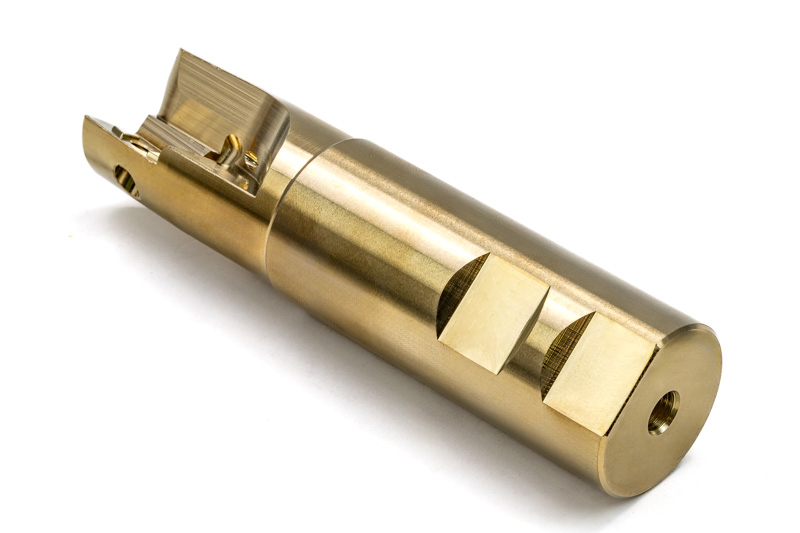

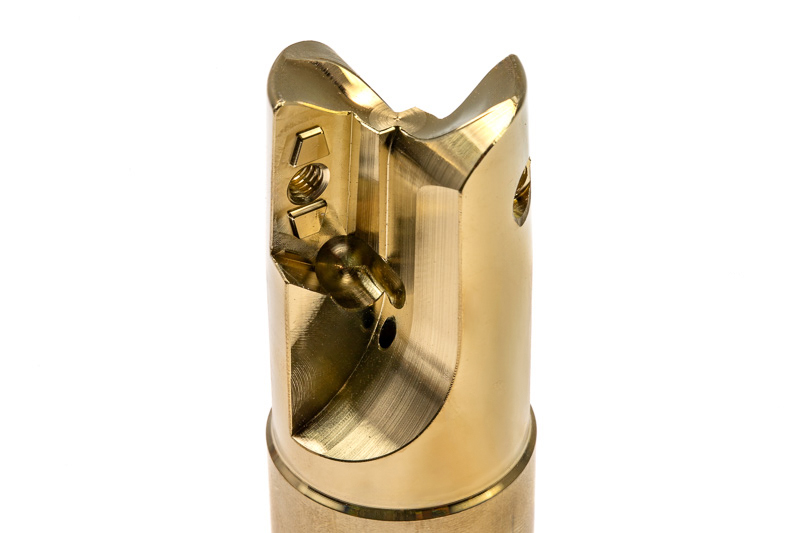

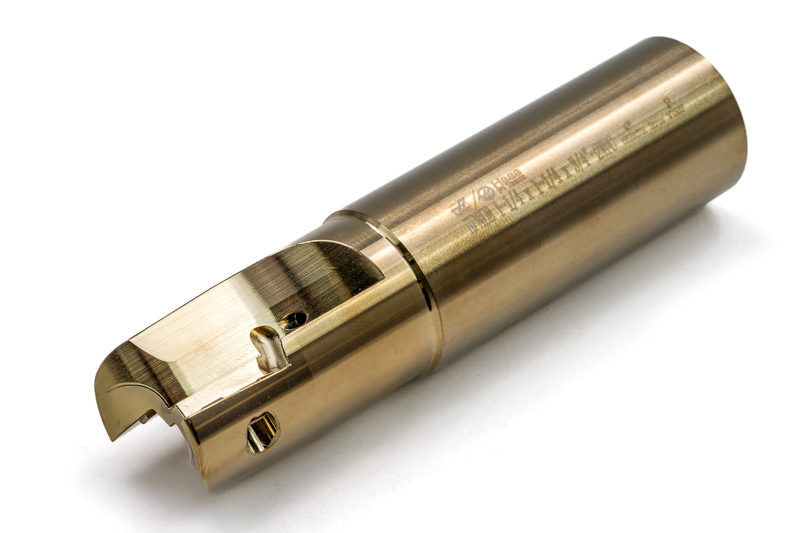

This Haas High Positive Aluminum (HPAL2) indexable end mill is designed for high-speed machining of aluminum in a wide range of applications, including face milling, shoulder milling, slotting, copy milling, ramping, and helical milling. It has a 1-1/4" cutting diameter, and 1-1/4" shank, with a 90-degree cutting edge. The cutter body takes 2 polygon cutting inserts with high positive geometry. The single-sided inserts have 2 cutting edges, with a high rake angle for good surface finishes and lower cutting loads.Technical specifications
System of Measurement | Inch - ANSI |
Milling Cutter Series | HPAL2 - Haas HP Aluminum |
Toolpath Type | Face Milling, Shoulder Milling, Slotting, Copy Milling, Ramping, Helical Milling |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 1.25 in \ 1-1/4" |
[°] Lead Angle | 90 |
[Z] Number of Cutting Teeth | 2 |
[ØDMM] Shank Diameter | 1.25 in |
[LH] Head Length | 2.0 in |
[Ap] Max. Cutting Depth | 0.862 in |
[OAL] Overall Length | 5.0 in |
[IC] Inscribed Circle Diameter | 0.502 in \ 12.76 mm |
[L10] Cutting Edge Length | 0.862 in \ 21.9 mm |
Maximum RPM | 14000 |
Torque of Insert Screw | 1020 Ncm |
Through Tool Coolant | No |
Weight | 0.5 lbs \ 0.2 kg |
Country of Origin | China |
Technical Images

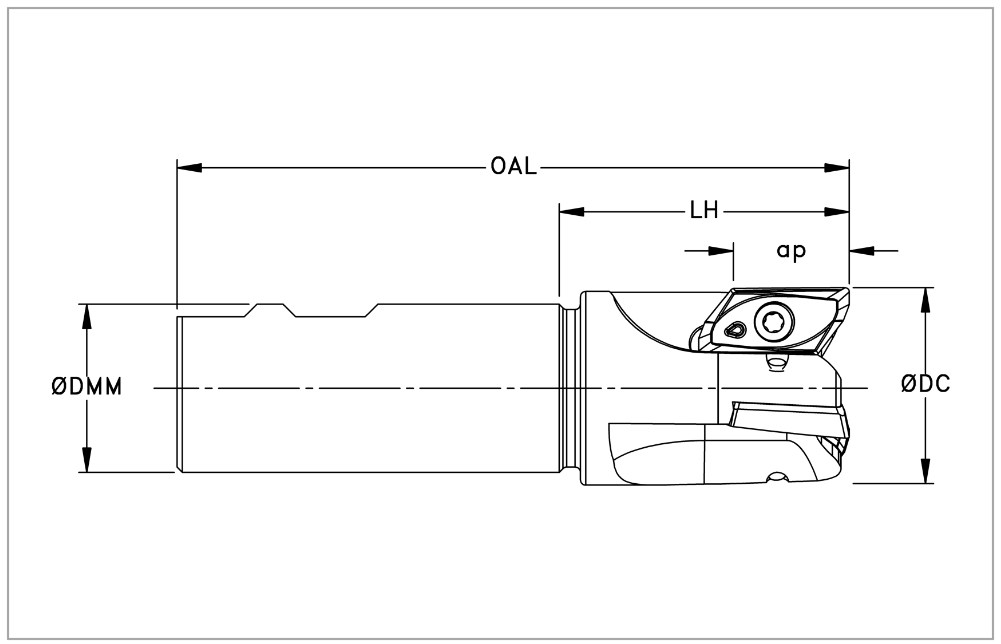

Enlarge Line Drawing & Specs
