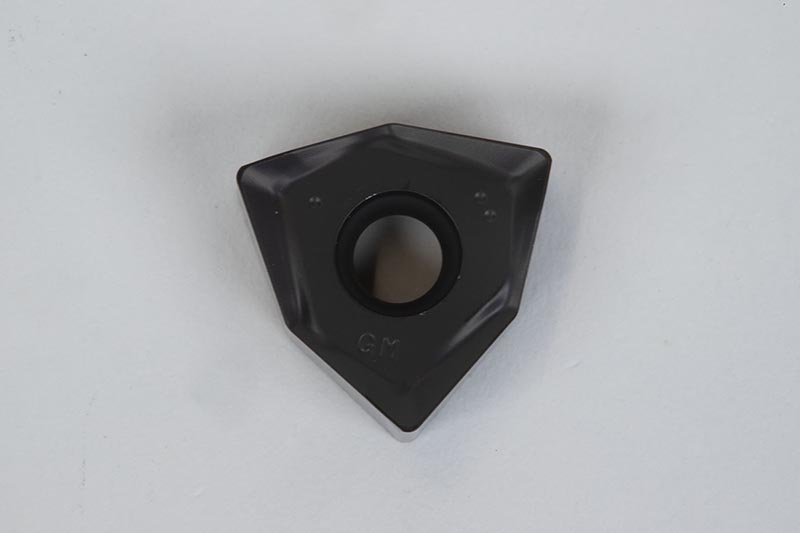

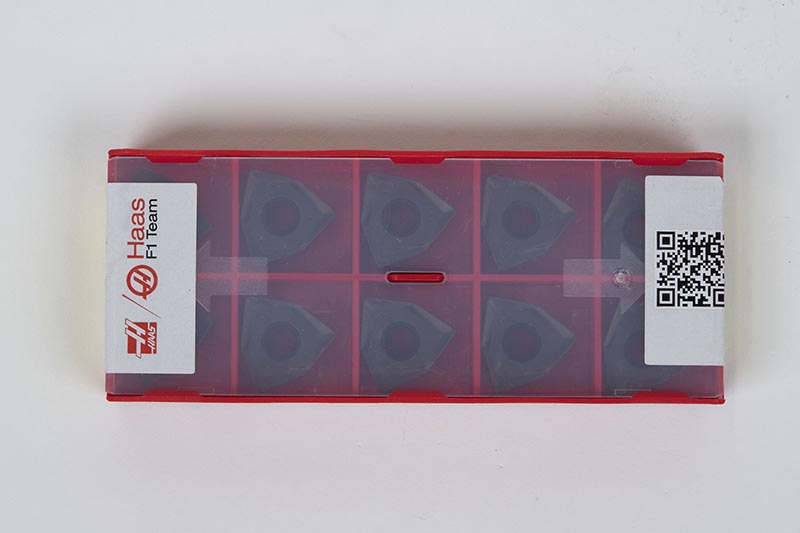

HS6NP, Carbide Milling Insert, Trigon Negative Positive, Grade HP30 - Pack of 10
HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Technical specifications
Insert Style | Trigon |
Toolpath Type | Face Milling, Shoulder Milling, Slotting |
Milling Cutter Series | HS6NP - Haas Sq Shoulder 6 -/+ |
Grade | HP30 |
Material | Carbide |
[IC] Inscribed Circle Diameter | 0.5 in \ 12.7 mm |
[INSL] Insert Length | 0.303 in \ 7.7 mm |
[RE] Corner Radius | 0.032 in \ 0.8 mm |
[D1] Insert Hole Size | 0.173 in \ 4.4 mm |
[S] Insert Thickness | 0.213 in \ 5.4 mm |
[Ap] Max. Cutting Depth | 0.303 in \ 7.7 mm |
Wiper Edge Length | 0.063 in \ 1.6 mm |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | China |
INSERT STYLE & GRADE
HS6NP - Medium to Heavy Roughing, High Depth of Cut
- 6 total cutting edges
- Double sided which helps with longevity, strength, and durability
- Shines in facing, shouldering, and channeling applications
- Positive face helps reduce the stress put on the machine during cutting
Insert Style
HS6NP
HAAS SQUARE SHOULDER 6 NEGATIVE POSITIVE
TOOLPATH TYPE
FACE MILLING, SHOULDER MILLING, SLOTTING
90° cutting edge | D.O.C. max. .303" (7.70mm)
• 90-degree shoulder mill
• Double-sided, thick insert for high stability and deeper cuts
• Inserts with 6 cutting edges
Insert Grade
HP30
APPLICABLE WORKPIECE MATERIALS
● P - STEEL
Primary grade for steel. Better at higher speeds. CVD-coated carbide grade for medium operation to roughing of steel at higher cutting speeds. Optimal blend of wear resistance and toughness for a wide range of applications. This grade is not as tough as HMP35.
● Primary Workpiece Material | ○ Secondary Workpiece Material
