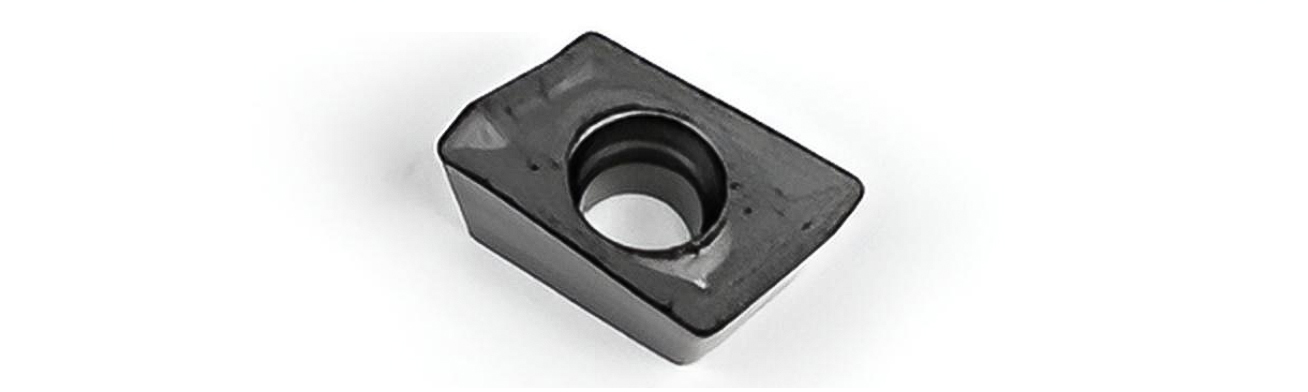

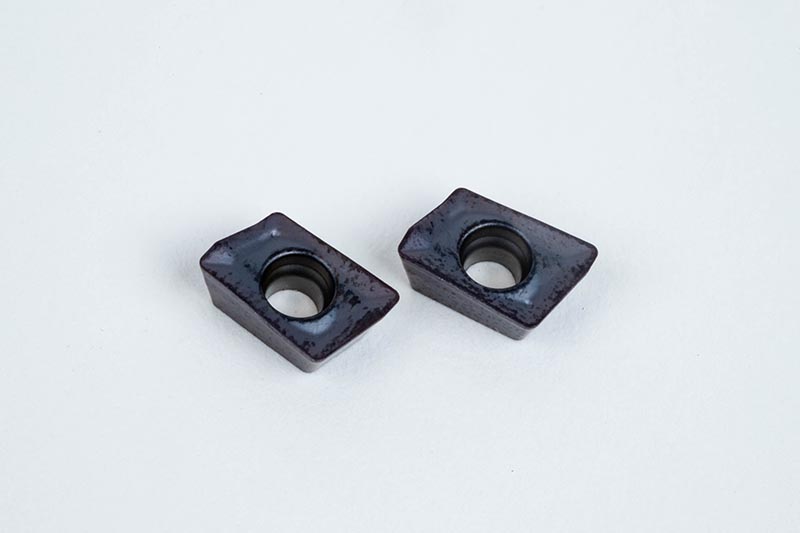

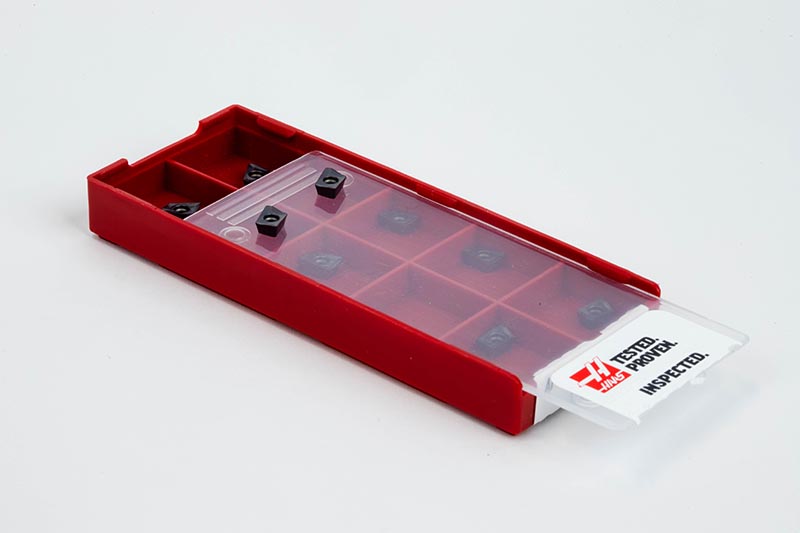

HMIEM, Carbide Milling Insert, Rectangle, Grade HU30 - Pack of 10
HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Technical specifications
Insert Style | Rectangle |
Toolpath Type | Face Milling, Shoulder Milling, Slotting, Copy Milling, Ramping, Helical Milling |
Milling Cutter Series | HMIEM - Haas Mini Indexable EM |
Grade | HU30 |
Material | Carbide |

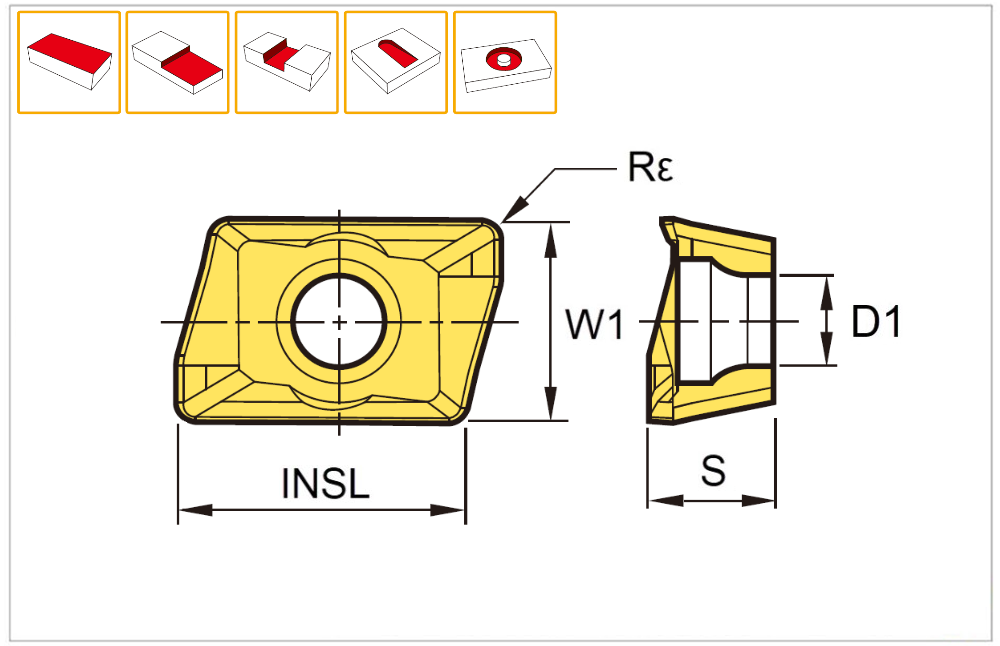

[IC] Inscribed Circle Diameter | 0.167 in \ 4.24 mm |
[INSL] Insert Length | 0.236 in \ 6.0 mm |
[RE] Corner Radius | 0.016 in \ 0.4 mm |
[D1] Insert Hole Size | 0.079 in \ 2.0 mm |
[S] Insert Thickness | 0.102 in \ 2.6 mm |
[Ap] Max. Cutting Depth | 0.217 in \ 5.5 mm |
[AN°] Clearance Angle | 15 |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | South Korea |
Technical Images
INSERT STYLE & GRADE
HMIEM - High-Quality Surface Finish, Multiple Tool Path, Small IC Insert
- Provide superior perpendicularity
- High rake angle helps minimize load on the machine while cutting
- 90° cutting edge provides high-quality surface finishes
- Capable of face milling, shoulder milling, slotting, ramping, helical milling, and copy milling toolpaths
Insert Style
HMIEM
HAAS MINI INDEXABLE END MILL
TOOLPATH TYPE
FACE MILLING, SHOULDER MILLING, SLOTTING, RAMPING, HELICAL MILLING, COPY MILLING
90° cutting edge | D.O.C. max .220" (5.59mm)
• Superior perpendicularity and minimized cutting loads
• Optimized for high-quality surface finishes
• High rake angle lowers cutting loads and minimizes burrs
• High-speed and high-feed capability
Insert Grade
HU30
APPLICABLE WORKPIECE MATERIALS
○ P - STEEL ● M - STAINLESS STEEL ○ K - CAST IRON
Universal PVD grade for steel, stainless, cast iron, and heat-resistant super alloys. This titanium aluminum nitride (TiAlN) coated insert is a superior universal grade for steel, cast iron, heat-resistant super alloys, and stainless steel. The coating and ultra-fine grain provide wear resistance and oxidation resistance. Stable machining results from excellent edge hardness and chipping resistance, although starting surface speeds are not as high as other grades.
HS Chip breaker: for machining with low cutting loads. Guarantees long tool life and accurate machining in light cutting, and machining heat-resistant super alloys.
MHS Chip breaker: for general milling.
● Primary Workpiece Material | ○ Secondary Workpiece Material
TOOLPATH LEGEND
