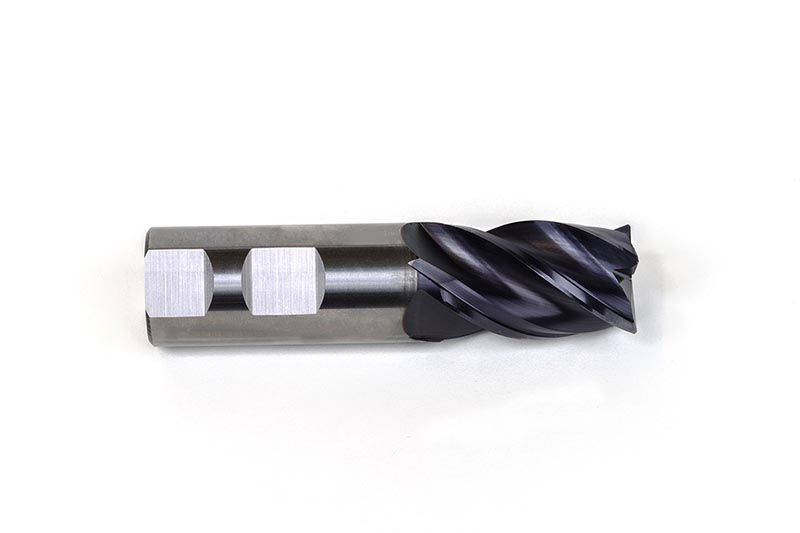

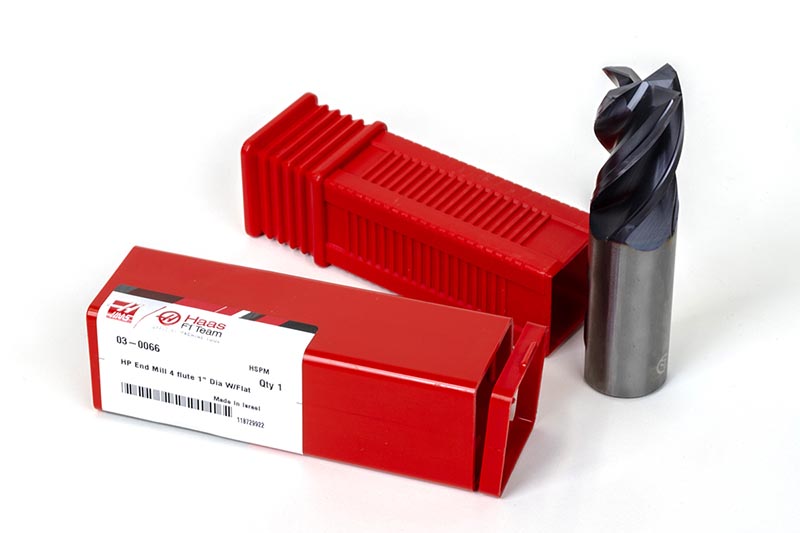

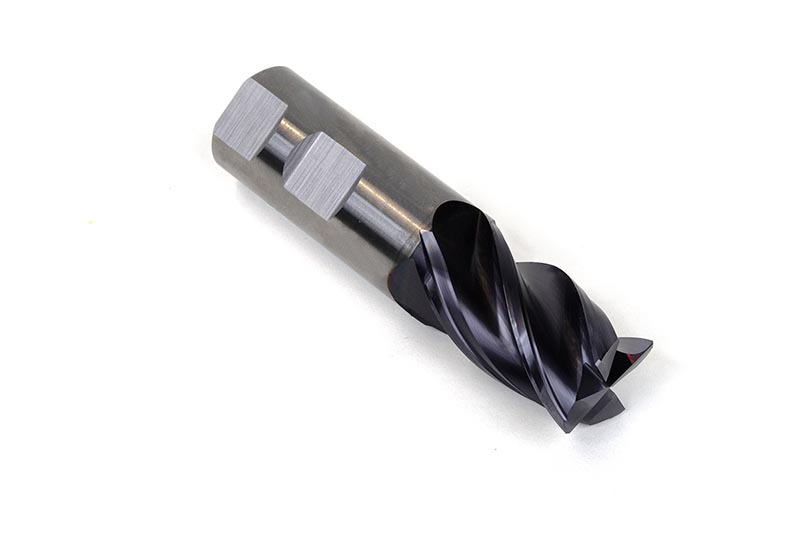

1" Ø Carbide End Mill, 4 Flute, Hybrid AlCrN Coated, 1" Shank x 1-1/2" LOC, 0.02" Chamfer, HSPM2
Part # 03-0066HP EM 4 FLUTE 1" DIAMETER W/FLAT
Description
This HSPM2 4-flute carbide end mill has a 1.0 in \ 1" cutting diameter, with a 1" weldon shank, 1-1/2" length of cut (LOC), 0.02" chamfer and a 4" overall length. It is hybrid AlCrN coated and is made to cut steel, stainless steel, and cast iron, but is capable of cutting some grades of high-temp. alloys. This end mill is designed to center-cut, and the unique, variable pitch configuration helps to reduce unwanted harmonics and vibrations.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
M - Stainless Steel
K - Cast Iron
Secondary Workpiece Material
S - High Temp Alloys
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | HSPM2 |
Material | Carbide |
Coating | Hybrid AlCrN |
Corner Type | Chamfer |
Shank Type | Weldon |
Length Type | Standard |
[ØDC] Cutting Diameter | 1.0 in \ 1" |
[ØDMM] Shank Diameter | 1.0 in |
[LOC] Length Of Cut | 1.5 in |
[OAL] Overall Length | 4.0 in |
[NOF] Number of Flutes | 4 |
[CHW\RE] Chamfer \ Radius Size | 0.02 in |
[FHA°] Helix Angle | 35° / 37° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | Yes |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 1.4 lbs \ 0.7 kg |
Country of Origin | Various |
Technical Images

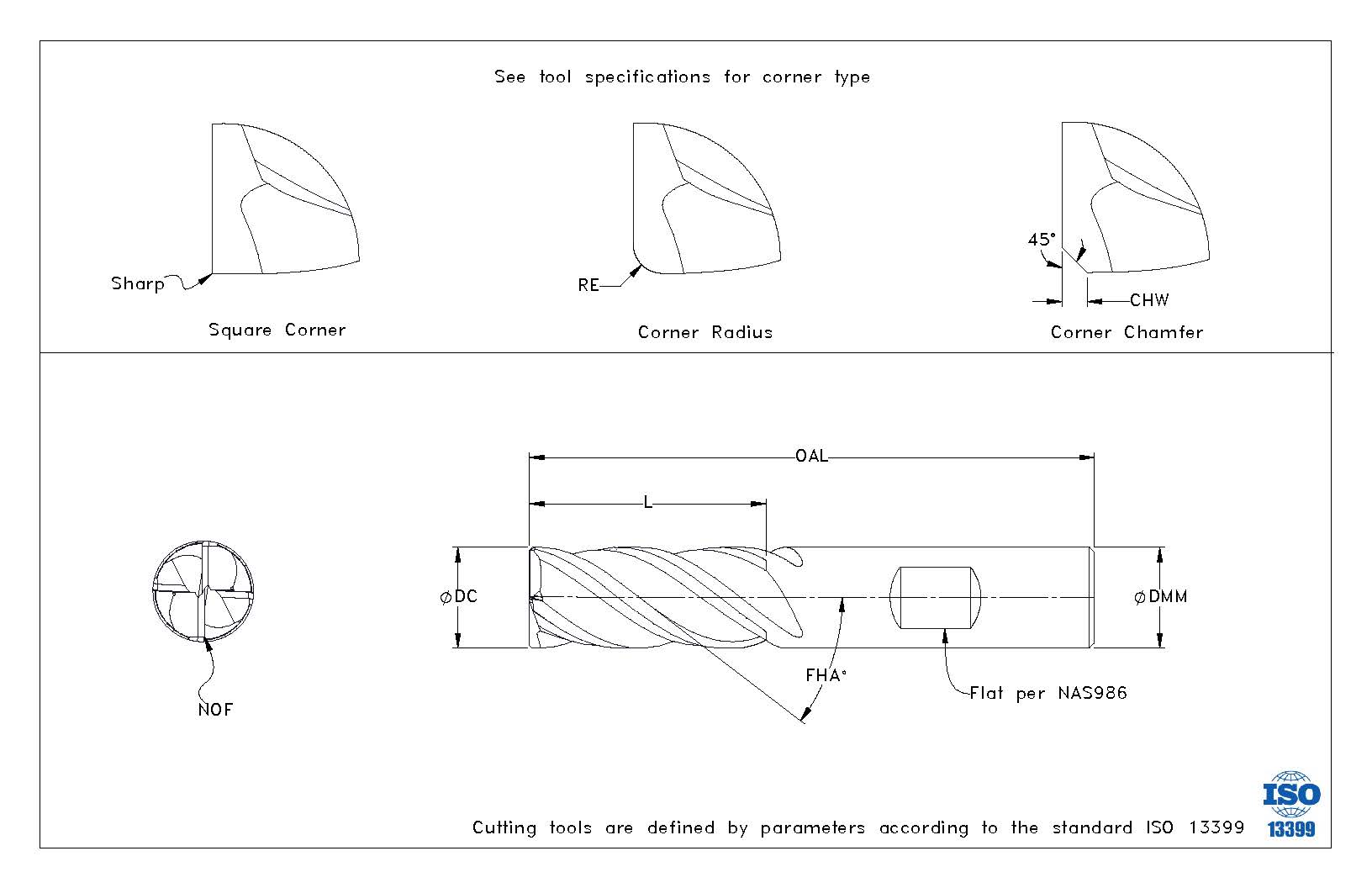

Enlarge Line Drawing & Specs
