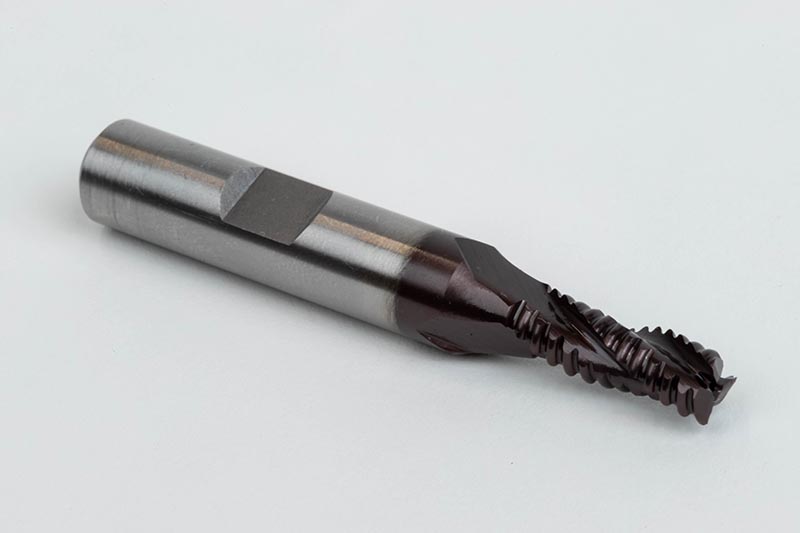

1/4" Dia. Cobalt Coarse Roughing End Mill, 3 Flute, TiAlN Coated, 3/8" Weldon Shank x 5/8" LOC, 0.02" Chamfer, CPR
Part # 03-0490REM-S 1/4" M42 COARSE STD LGTH TIALN
Description
This CPR 3-flute HSSCo8 (M42) cobalt roughing end mill has a 0.25 in \ 1/4" cutting diameter, with a 3/8" weldon shank, 5/8" length of cut (LOC), 0.02" chamfer, and a 2-7/16" overall length. It is TiAlN coated, and made to cut steel, but is capable of cutting some grades of aluminum/non-ferrous materials. This roughing end mill is NOT designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
Secondary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | CPR |
Material | HSSCo8 (M42) |
Coating | TiAlN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 0.25 in \ 1/4" |
[ØDMM] Shank Diameter | 0.375 in |
[LOC] Length Of Cut | 0.625 in |
[OAL] Overall Length | 2.438 in |
[NOF] Number of Flutes | 3 |
[CHW\RE] Chamfer \ Radius Size | 0.02 in |
[FHA°] Helix Angle | 30 |
Cutting Direction | Right |
Center Cutting | No |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | South Korea |
