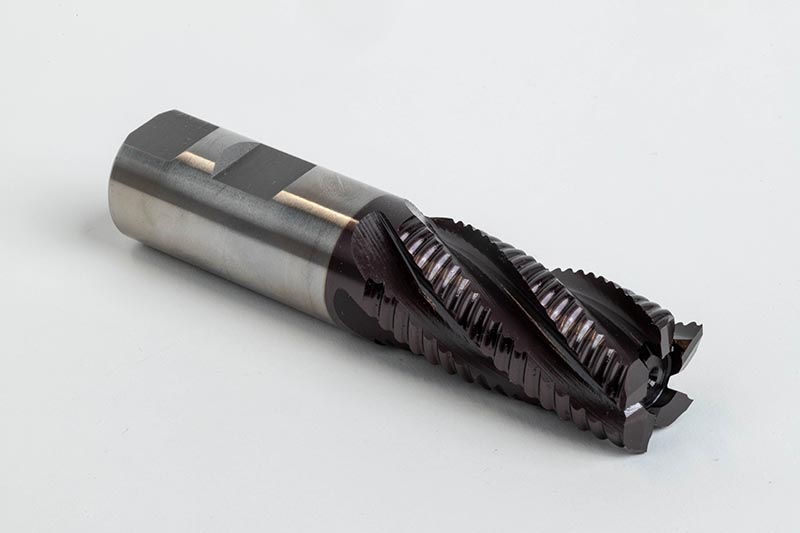

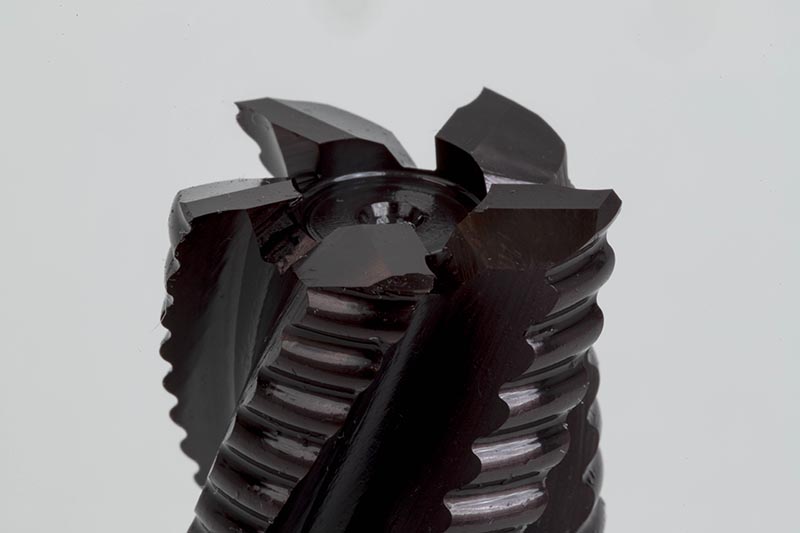

1" Dia. Cobalt Coarse Roughing End Mill, 5 Flute, TiAlN Coated, 1" Weldon Shank x 2" LOC, 0.03" Chamfer, CPR
Part # 03-0496REM-S 1" M42 COARSE STD LGTH TIALN
Description
This CPR 5-flute HSSCo8 (M42) cobalt roughing end mill has a 1.0 in \ 1" cutting diameter, with a 1" weldon shank, 2" length of cut (LOC), 0.03" chamfer, and a 4-1/2" overall length. It is TiAlN coated, and made to cut steel, but is capable of cutting some grades of aluminum/non-ferrous materials. This roughing end mill is NOT designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
Secondary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | CPR |
Material | HSSCo8 (M42) |
Coating | TiAlN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 1.0 in \ 1" |
[ØDMM] Shank Diameter | 1.0 in |
[LOC] Length Of Cut | 2.0 in |
[OAL] Overall Length | 4.5 in |
[NOF] Number of Flutes | 5 |
[CHW\RE] Chamfer \ Radius Size | 0.03 in |
[FHA°] Helix Angle | 30 |
Cutting Direction | Right |
Center Cutting | No |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.9 lbs \ 0.4 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
