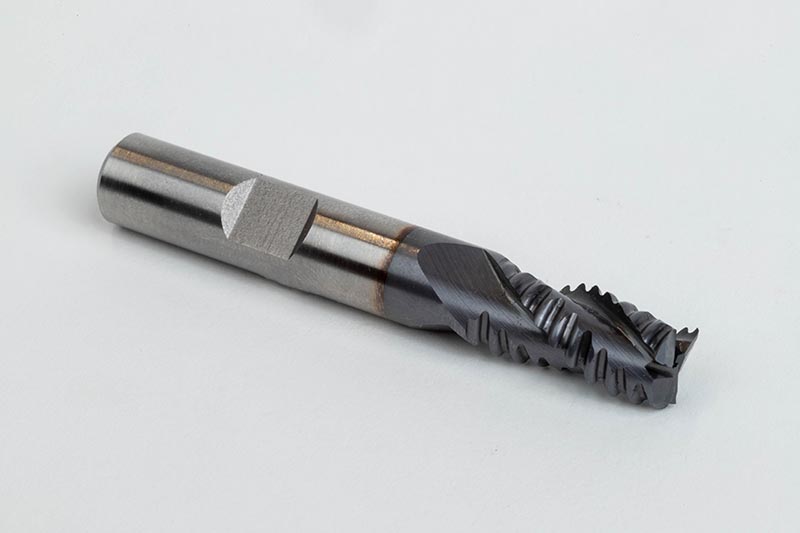

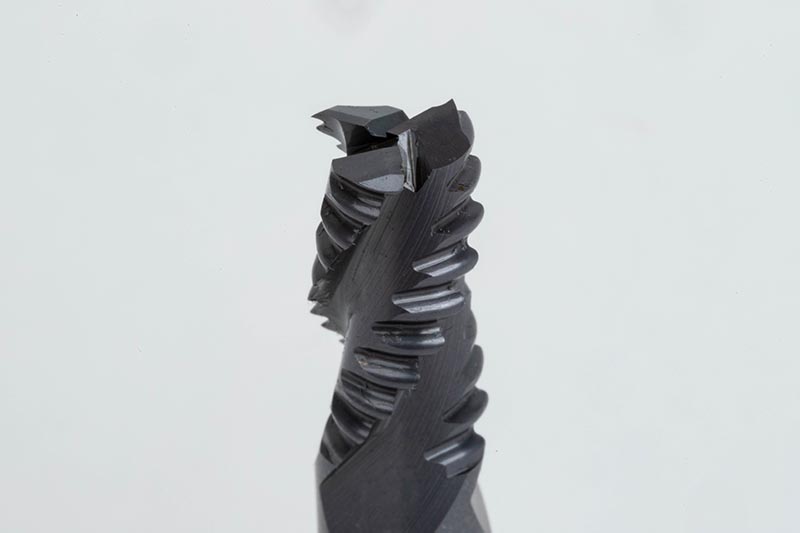

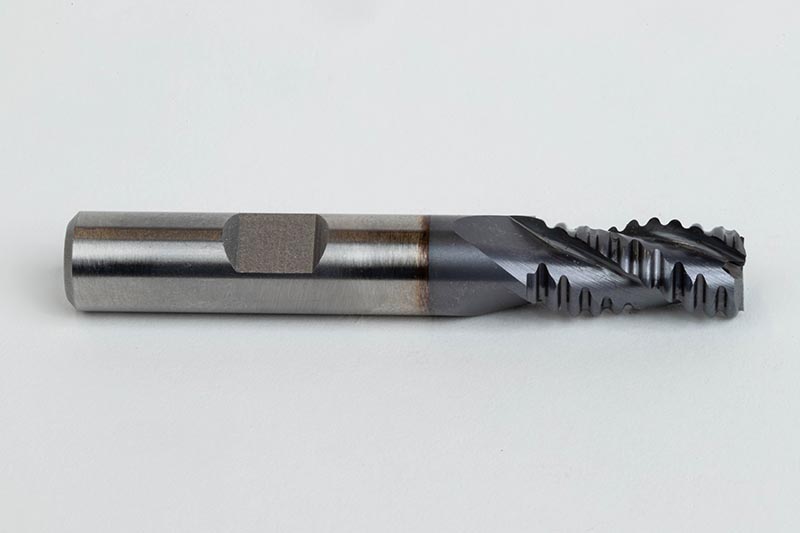

3/8" Dia. Cobalt Coarse Roughing End Mill, 3 Flute, TiCN Coated, 3/8" Weldon Shank x 3/4" LOC, 0.02" Chamfer, CPRA

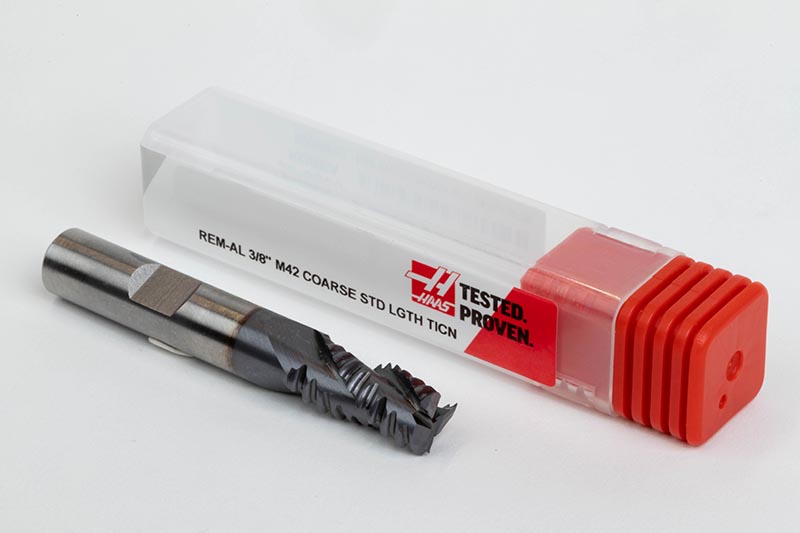

Part # 03-0506REM-AL 3/8" M42 COARSE STD LGTH TICN
Description
This CPRA 3-flute HSSCo8 (M42) cobalt roughing end mill has a 0.375 in \ 3/8" cutting diameter, with a 3/8" weldon shank, 3/4" length of cut (LOC), 0.02" chamfer, and a 2-1/2" overall length. It is TiCN coated, and made to cut aluminum/non-ferrous materials. This roughing end mill is designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | CPRA |
Material | HSSCo8 (M42) |
Coating | TiCN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 0.375 in \ 3/8" |
[ØDMM] Shank Diameter | 0.375 in |
[LOC] Length Of Cut | 0.75 in |
[OAL] Overall Length | 2.5 in |
[NOF] Number of Flutes | 3 |
[CHW\RE] Chamfer \ Radius Size | 0.02 in |
[FHA°] Helix Angle | 37 |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | South Korea |
Technical Images

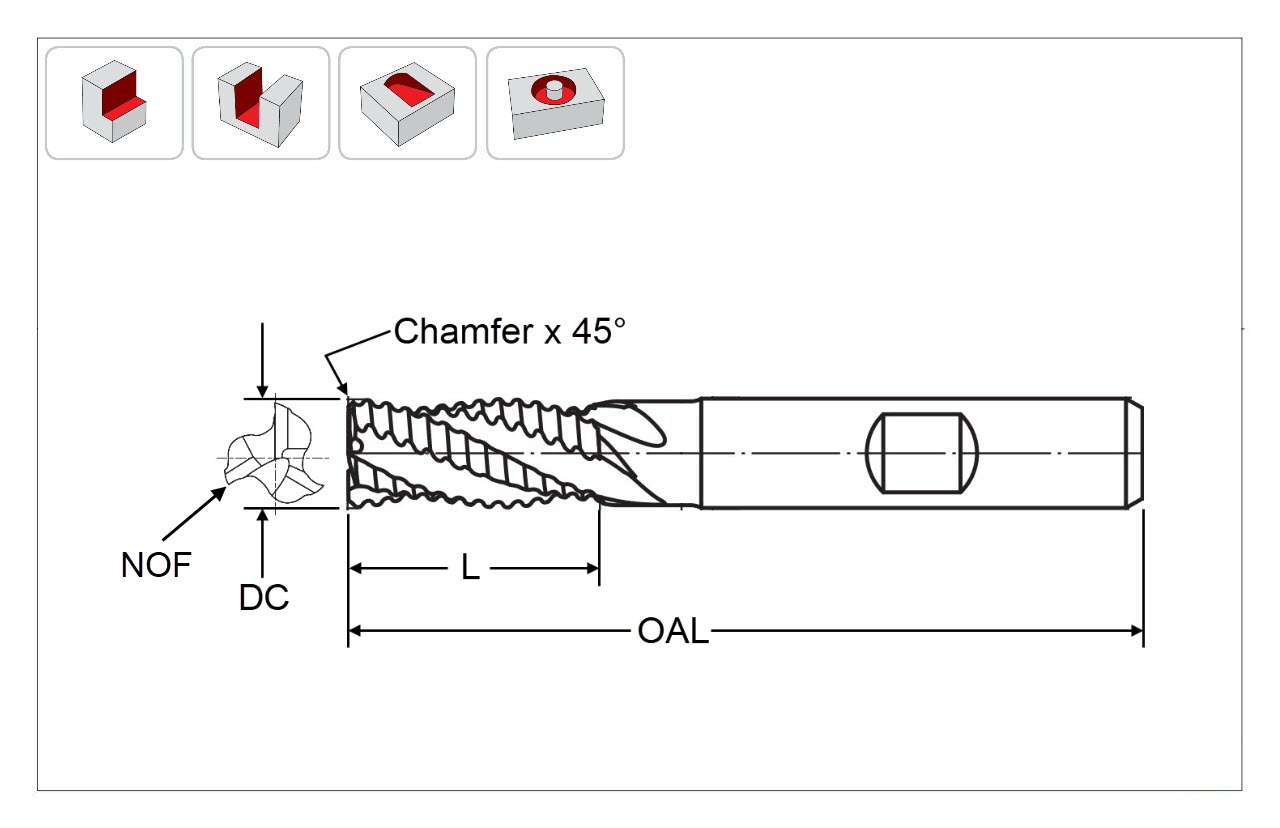

Enlarge Line Drawing & Specs
