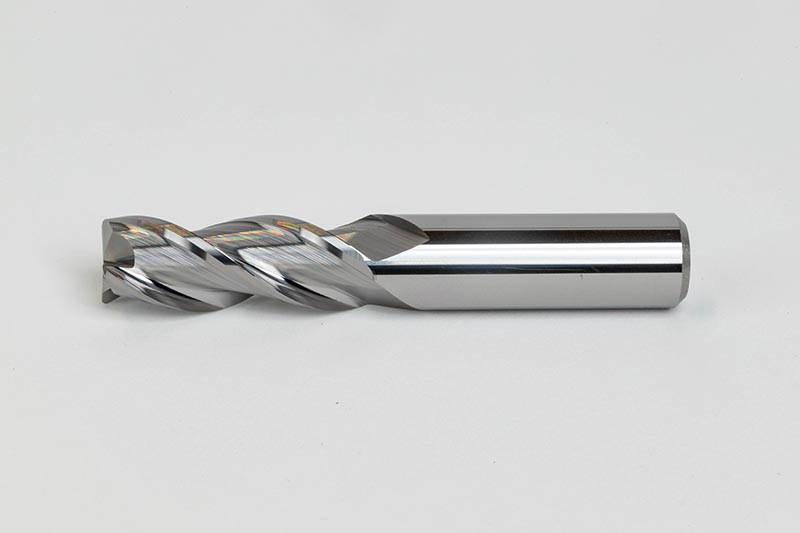

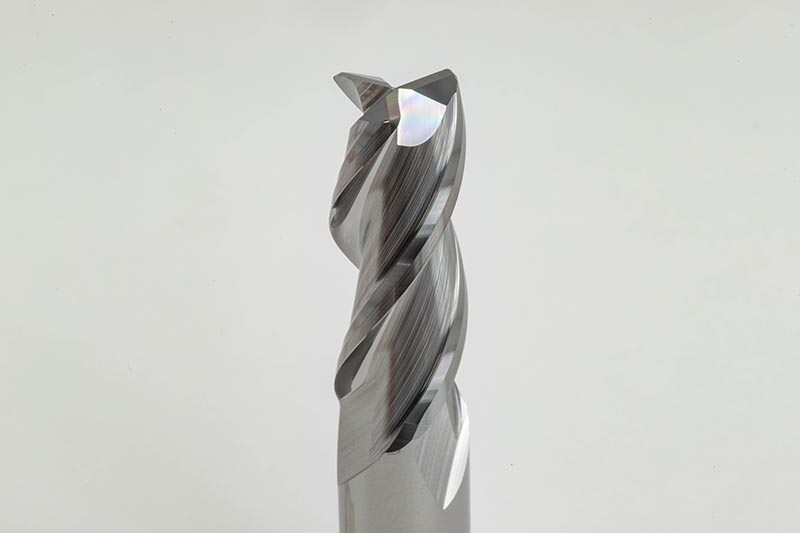

1/2" Ø Carbide End Mill, 3 Flute, Uncoated, 1/2" Shank x 1-1/4" LOC, 0.03" Radius, HSAM2
Part # 03-05731/2" 3FL HI PERF ALUM EM W .030" RADIUS
Description
This HSAM2 3-flute carbide end mill has a 0.5 in \ 1/2" cutting diameter, with a 1/2" smooth shank, 1-1/4" length of cut (LOC), 0.03" radius and a 3" overall length. It is uncoated and is made to cut aluminum/non-ferrous materials. This end mill is designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | HSAM2 |
Material | Carbide |
Coating | Uncoated |
Corner Type | Radius |
Shank Type | Smooth |
Length Type | Standard |
[ØDC] Cutting Diameter | 0.5 in \ 1/2" |
[ØDMM] Shank Diameter | 0.5 in |
[LOC] Length Of Cut | 1.25 in |
[OAL] Overall Length | 3.0 in |
[NOF] Number of Flutes | 3 |
[CHW\RE] Chamfer \ Radius Size | 0.03 in |
[FHA°] Helix Angle | 37° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | No |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 0.3 lbs \ 0.2 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
