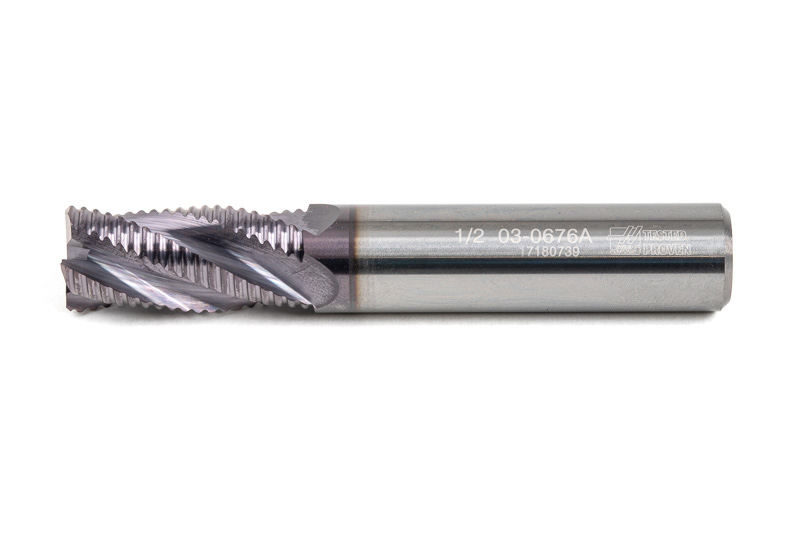

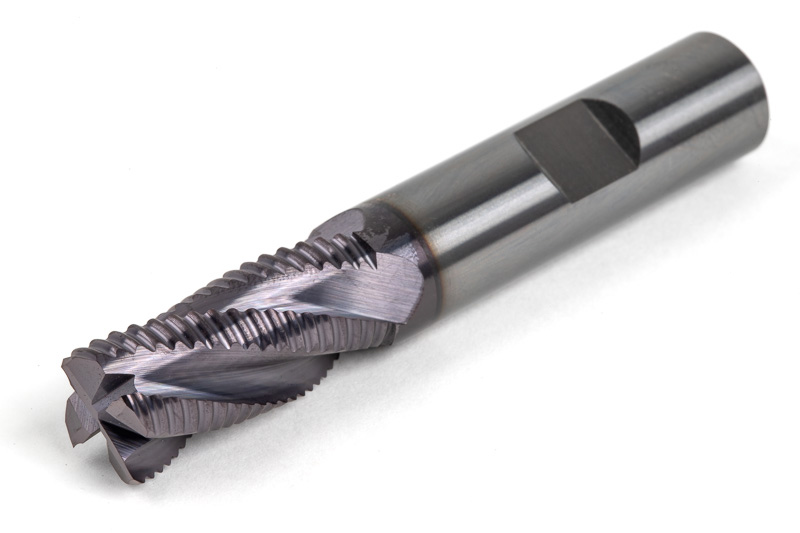

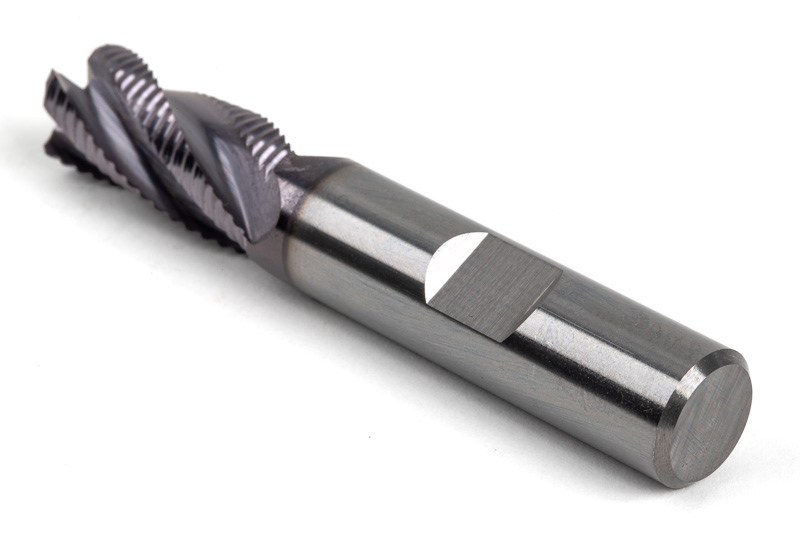

1/2" Dia. Carbide Fine Roughing End Mill, 4 Flute, TiAlN Coated, 1/2" Weldon Shank x 1" LOC, 0.024" Chamfer, FPCHH
Part # 03-0676AREM 1/2" STD HELIX 4 FL CARB TIALN WF
Description
This FPCHH 4-flute carbide roughing end mill has a 0.5 in \ 1/2" cutting diameter, with a 1/2" weldon shank, 1" length of cut (LOC), 0.024" chamfer, and a 3" overall length. It is TiAlN coated, and made to cut steel, stainless steel, and high temp. alloys. This roughing end mill is designed to center-cut.Iso Material Chart
Primary Workpiece Material
P - Steel
M - Stainless Steel
S - High Temp Alloys
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | FPCHH |
Material | Carbide |
Coating | TiAlN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 0.5 in \ 1/2" |
[ØDMM] Shank Diameter | 0.5 in |
[LOC] Length Of Cut | 1.0 in |
[OAL] Overall Length | 3.0 in |
[NOF] Number of Flutes | 4 |
[CHW\RE] Chamfer \ Radius Size | 0.024 in |
[FHA°] Helix Angle | 30 |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.3 lbs \ 0.1 kg |
Country of Origin | South Korea |
