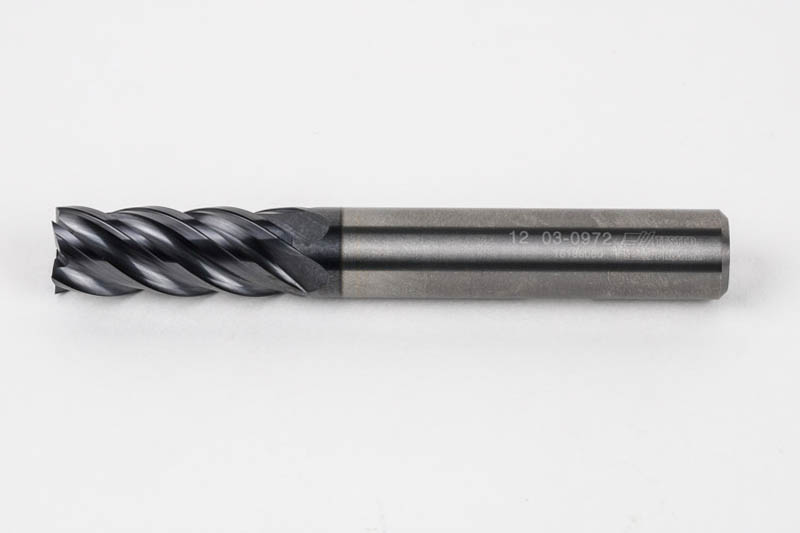

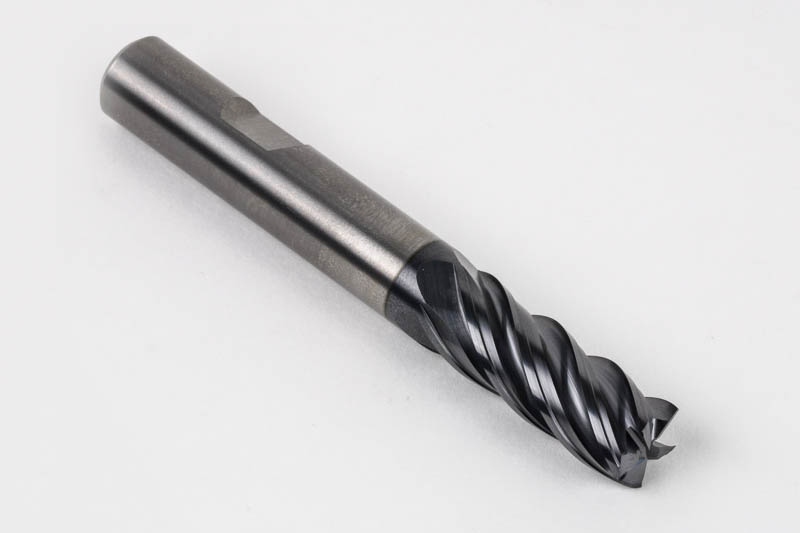

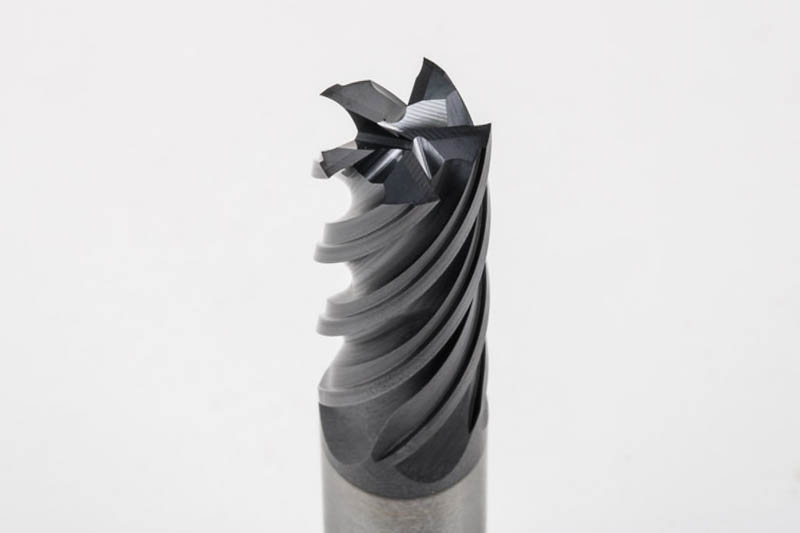

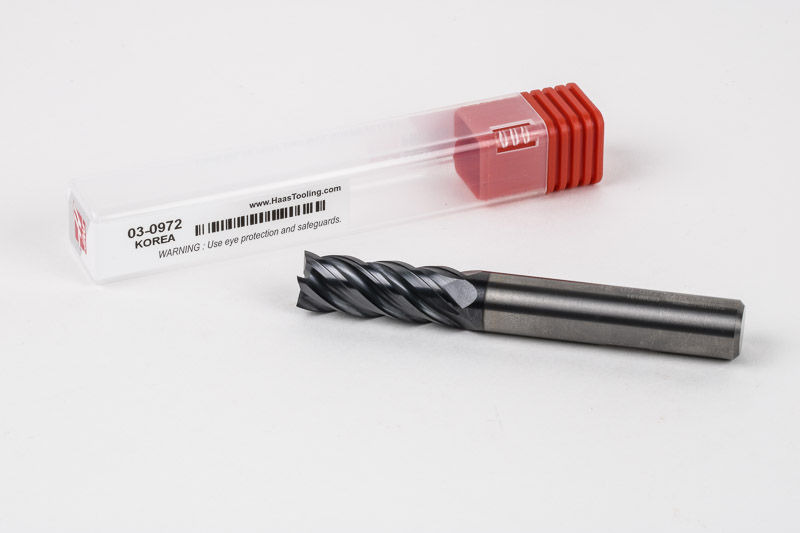

12mm Ø Carbide End Mill, 5 Flute, AlTiN Coated, 12mm Shank x 30mm LOC, Square Profile, HTM2
Part # 03-0972EM 5FL 12x12x30x88mm AlTiN,wf
Description
This HTM2 5-flute carbide end mill has a 12mm cutting diameter, with a 12mm weldon shank, 30mm length of cut (LOC), square profile and a 88mm overall length. It is AlTiN coated and is made to cut stainless steel and high-temp. alloys, but is capable of cutting some grades of steel and cast iron. This end mill is designed to center-cut, and the unique, variable pitch configuration helps to reduce unwanted harmonics and vibrations.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
M - Stainless Steel
S - High Temp Alloys
Secondary Workpiece Material
P - Steel
K - Cast Iron
Technical specifications
System of Measurement | Metric - ISO |
Haas Milling Series | HTM2 |
Material | Carbide |
Coating | AlTiN |
Corner Type | Square |
Shank Type | Weldon |
Length Type | Standard |
[ØDC] Cutting Diameter | 12.0 mm |
[ØDMM] Shank Diameter | 12.0 mm |
[LOC] Length Of Cut | 30.0 mm |
[OAL] Overall Length | 88.0 mm |
[NOF] Number of Flutes | 5 |
[FHA°] Helix Angle | 38° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | Yes |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 0.3 lbs \ 0.2 kg |
Country of Origin | South Korea |
Technical Images

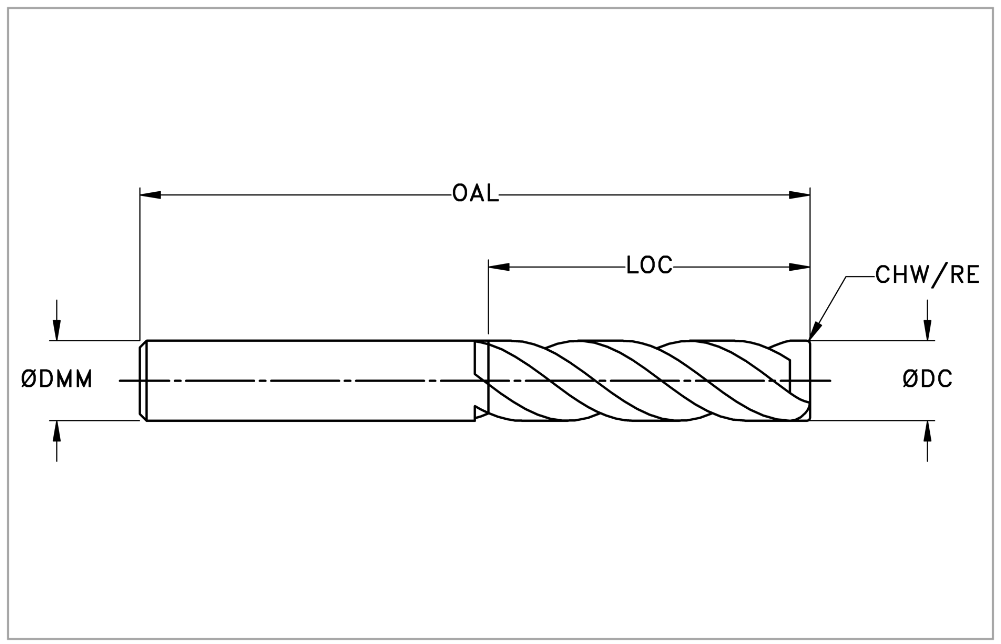

Enlarge Line Drawing & Specs
