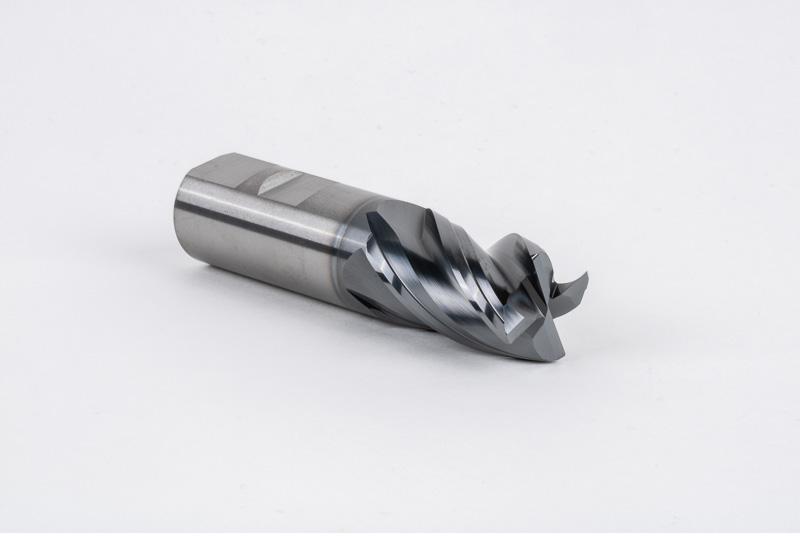

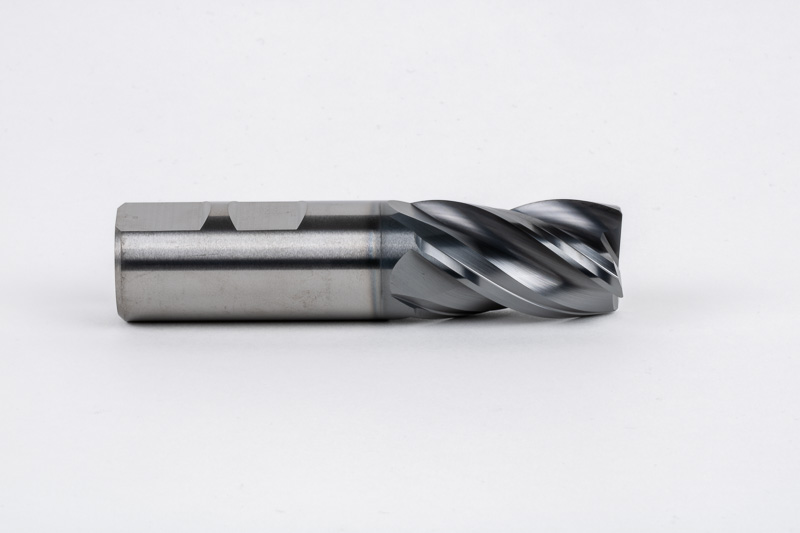

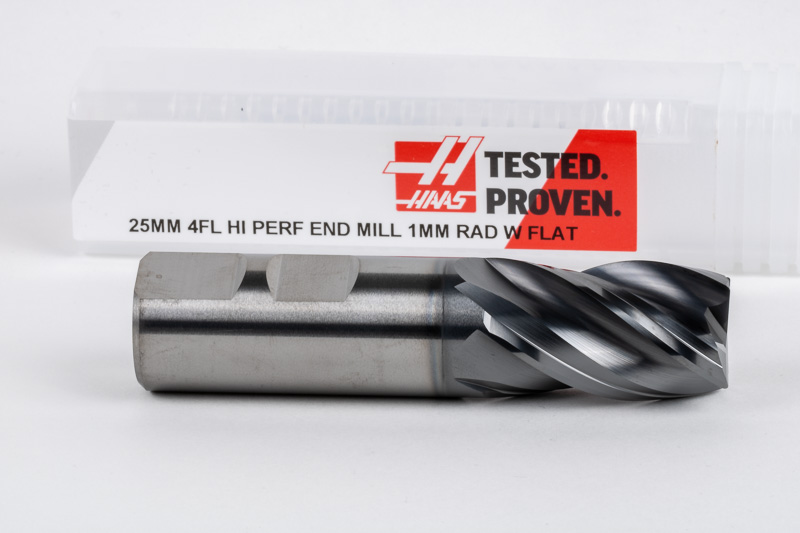

25mm Ø Carbide End Mill, 4 Flute, Hybrid AlCrN Coated, 25mm Shank x 40mm LOC, 1mm Radius, HSPM2
Part # 03-1067EM 4FL 25 (R1)x25x40x104mm Hyd AlCrN,wf
Description

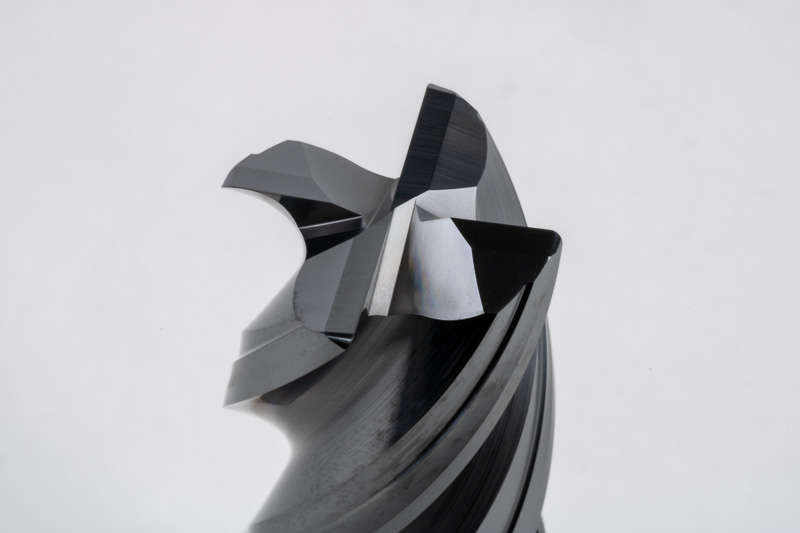

This HSPM2 4-flute carbide end mill has a 25mm cutting diameter, with a 25mm weldon shank, 40mm length of cut (LOC), 1mm radius and a 104mm overall length. It is hybrid AlCrN coated and is made to cut steel, stainless steel, and cast iron, but is capable of cutting some grades of high-temp. alloys. This end mill is designed to center-cut, and the unique, variable pitch configuration helps to reduce unwanted harmonics and vibrations.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
M - Stainless Steel
K - Cast Iron
Secondary Workpiece Material
S - High Temp Alloys
Technical specifications
System of Measurement | Metric - ISO |
Haas Milling Series | HSPM2 |
Material | Carbide |
Coating | Hybrid AlCrN |
Corner Type | Radius |
Shank Type | Weldon |
Length Type | Standard |
[ØDC] Cutting Diameter | 25.0 mm |
[ØDMM] Shank Diameter | 25.0 mm |
[LOC] Length Of Cut | 40.0 mm |
[OAL] Overall Length | 104.0 mm |
[NOF] Number of Flutes | 4 |
[CHW\RE] Chamfer \ Radius Size | 1.0 mm |
[FHA°] Helix Angle | 35° / 37° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | Yes |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 1.5 lbs \ 0.7 kg |
Country of Origin | South Korea |
Technical Images

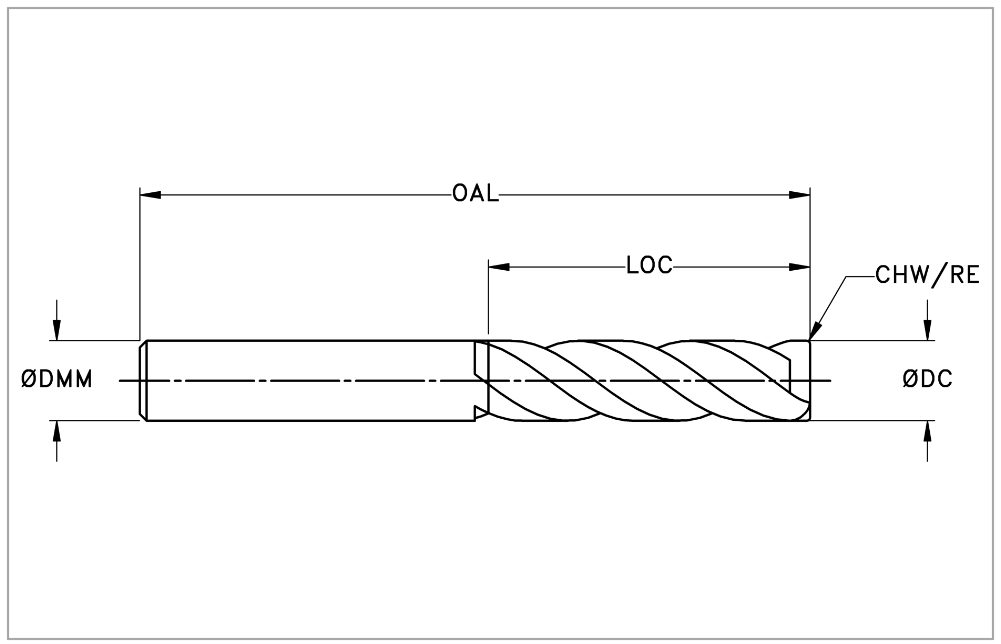

Enlarge Line Drawing & Specs
