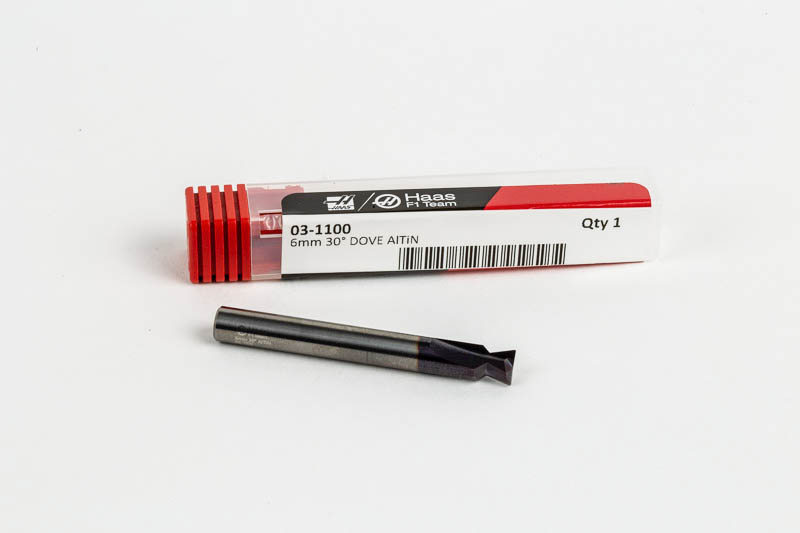

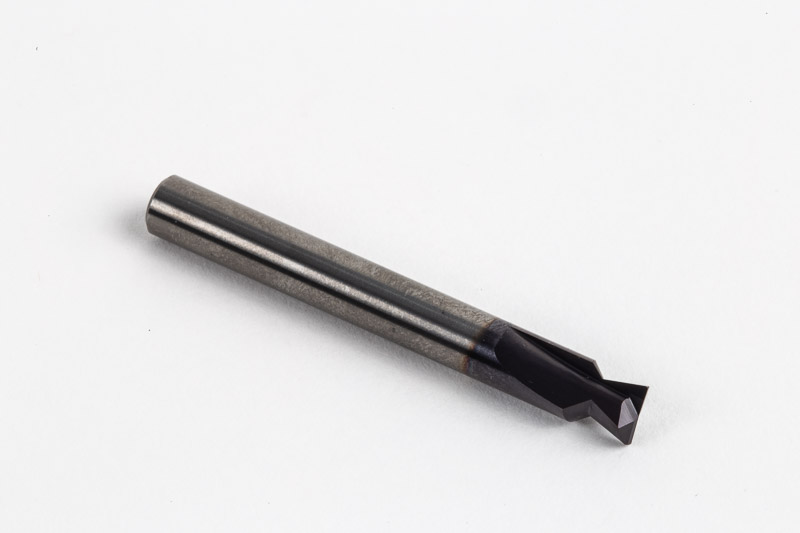

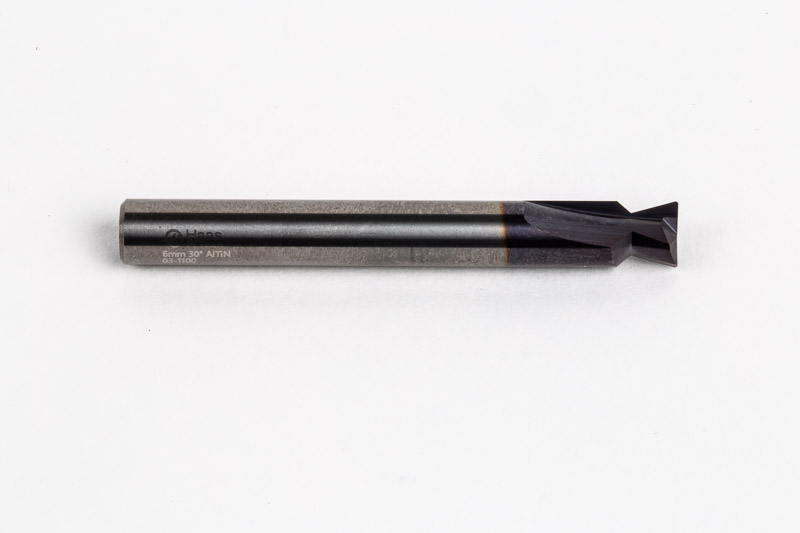

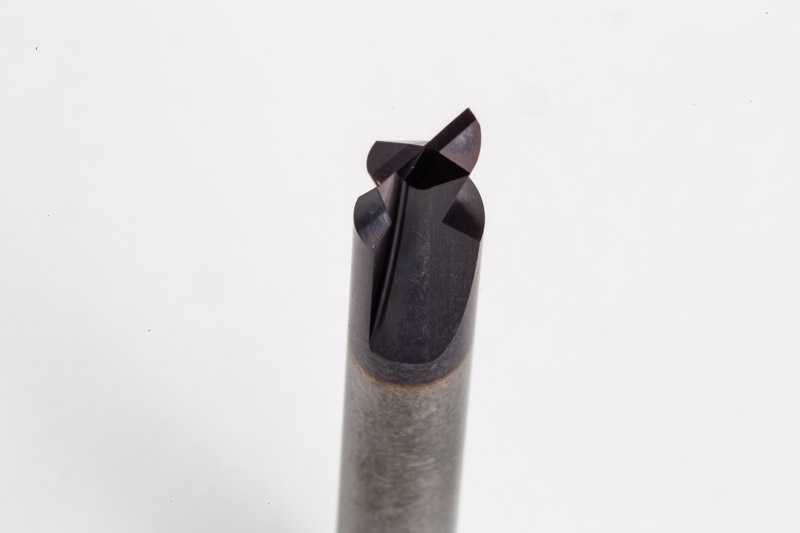

6mm Dia. Carbide Dovetail Cutter, 2 Flute, AlTiN Coated, 6mm Shank x 3.96mm LOC x 30° Included Angle, 0.25mm Radius

Part # 03-1100

DOVETAIL CUTTER CARBIDE 6MM 30 DEG

* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description

This 30-degree 2-flute carbide dovetail cutter has a 6mm cutting diameter, with a 6mm smooth shank, 3.96mm length of cut (LOC), 0.25mm corner radius, and a 50mm overall length. It is AlTiN coated, and made to cut steel, stainless steel, cast iron, high temp. alloys, and hardened metals.

Download documents

3D Model (ZIP)
Iso Material Chart

Primary Workpiece Material

P - Steel
M - Stainless Steel
K - Cast Iron
S - High Temp Alloys
H - Hardened Steels

Technical specifications

System of Measurement

Metric - ISO

Material

Carbide

Coating

AlTiN

Shank Type

Smooth

[ØDC] Cutting Diameter

6.0 mm

[ØDMM] Shank Diameter

6.0 mm

[ØN] Neck Diameter

4.37 mm

[LOC] Length Of Cut

3.96 mm

[OAL] Overall Length

50.0 mm

[NOF] Number of Flutes

2

[CHW\RE] Chamfer \ Radius Size

0.25 mm

[SIG°] Included Angle

30

Cutting Direction

Right

Weight

0.1 lbs \ 0.1 kg

Country of Origin

USA

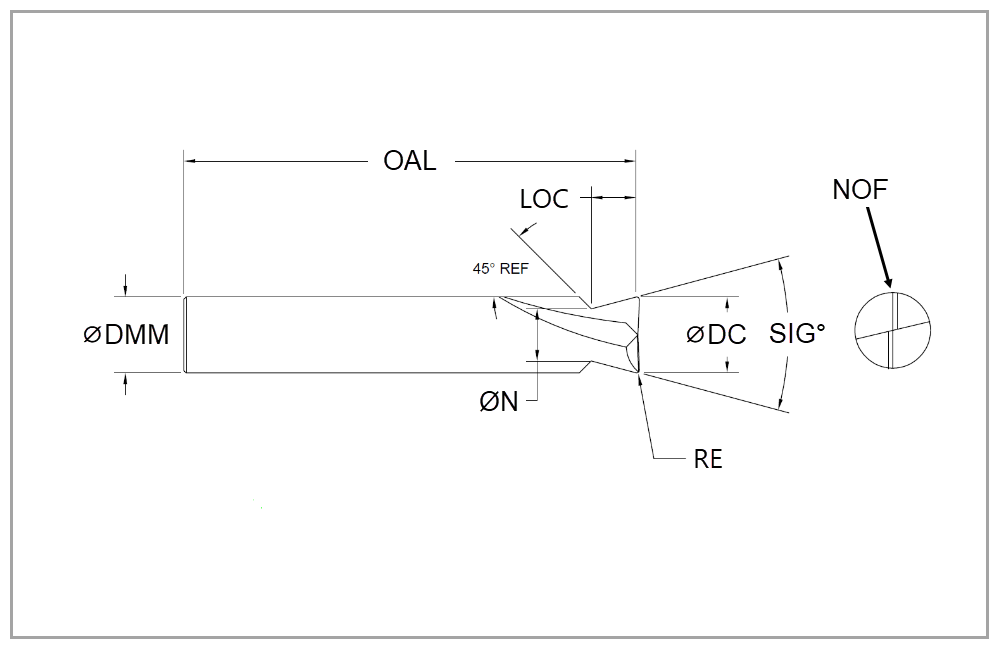

Technical Images
View detailed specs
