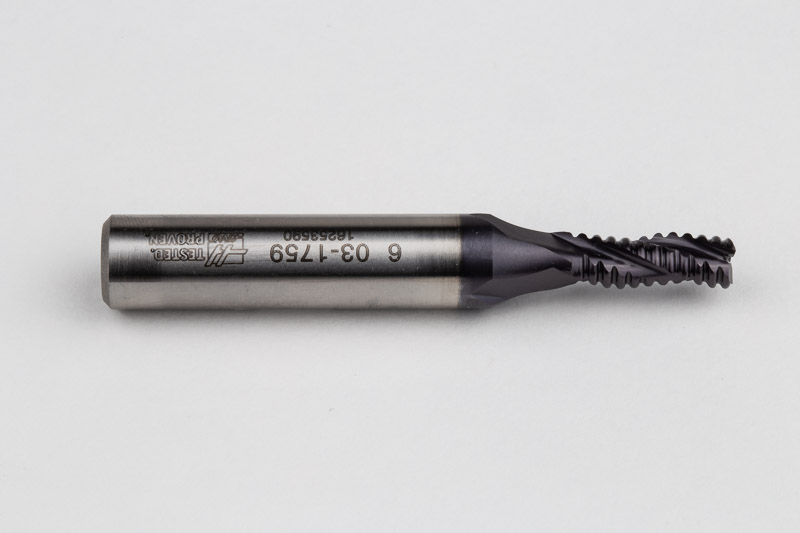

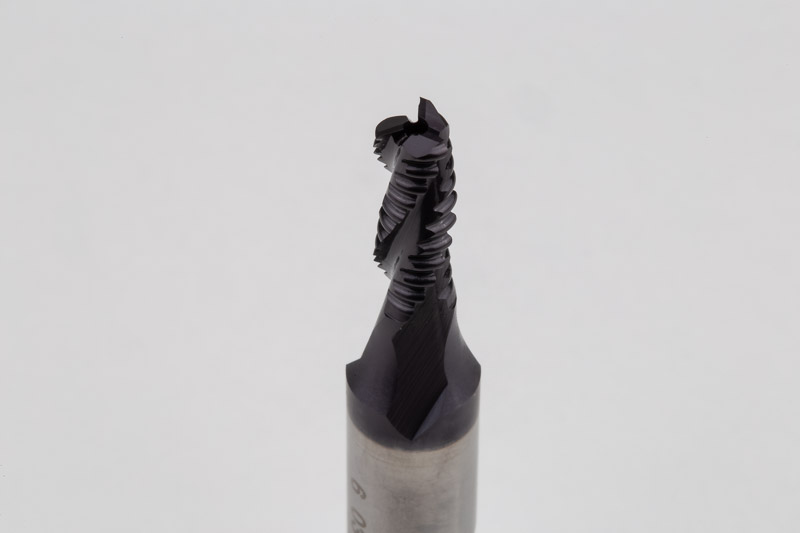

6mm Dia. Cobalt Coarse Roughing End Mill, 3 Flute, TiAIN Coated, 10mm Weldon Shank x 16mm LOC, 0.25mm Chamfer, CPR
Part # 03-1759REM-S 6MM M42 COARSE STD LGTH TIALN WF
Description
This CPR 3-flute HSSCo8 (M42) cobalt roughing end mill has a 6mm cutting diameter, with a 10mm weldon shank, 16mm length of cut (LOC), 0.25mm chamfer, and a 65mm overall length. It is TiAlN coated, and made to cut steel, but is capable of cutting some grades of aluminum/non-ferrous materials. This roughing end mill is NOT designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
Secondary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Metric - ISO |
Haas Milling Series | CPR |
Material | HSSCo8 (M42) |
Coating | TiAlN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 6.0 mm |
[ØDMM] Shank Diameter | 10.0 mm |
[LOC] Length Of Cut | 16.0 mm |
[OAL] Overall Length | 65.0 mm |
[NOF] Number of Flutes | 3 |
[CHW\RE] Chamfer \ Radius Size | 0.25 mm |
[FHA°] Helix Angle | 30 |
Cutting Direction | Right |
Center Cutting | No |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
