20mm Dia. Cobalt Fine Roughing End Mill, 4 Flute, TiAIN Coated, 20mm Weldon Shank x 42mm LOC, 0.76mm Chamfer, FPR

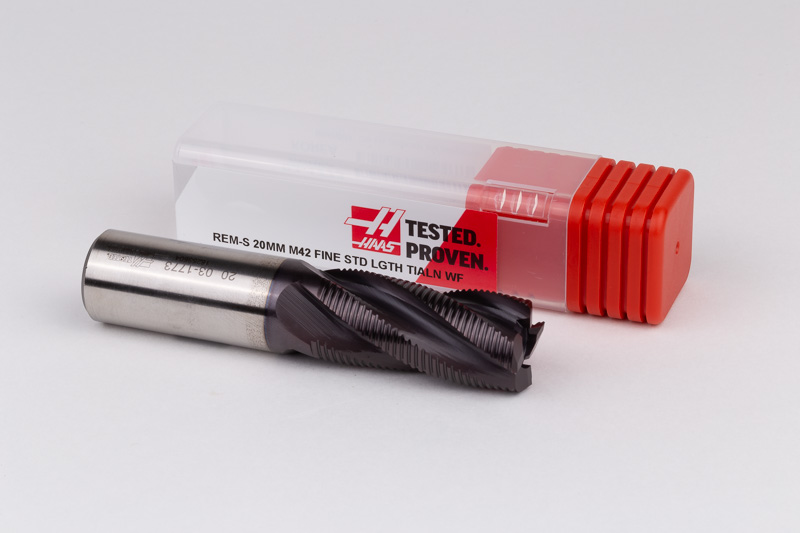

Part # 03-1773REM-S 20MM M42 FINE STD LGTH TIALN WF
Description

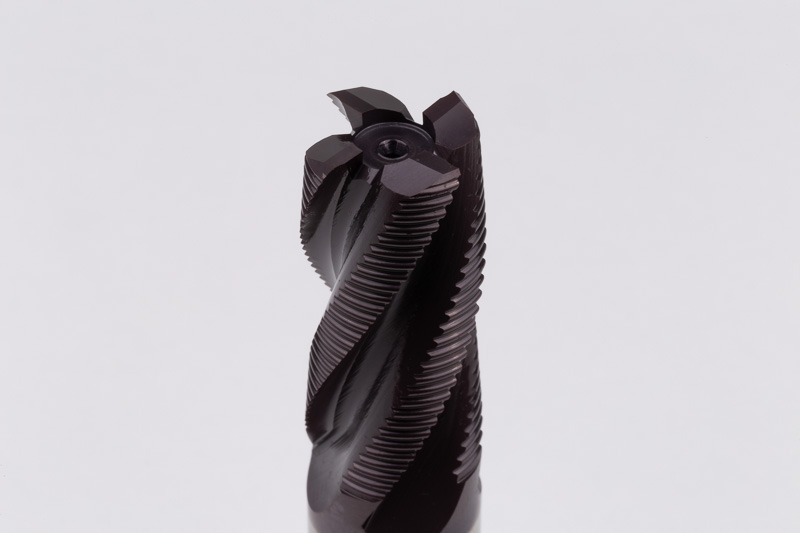

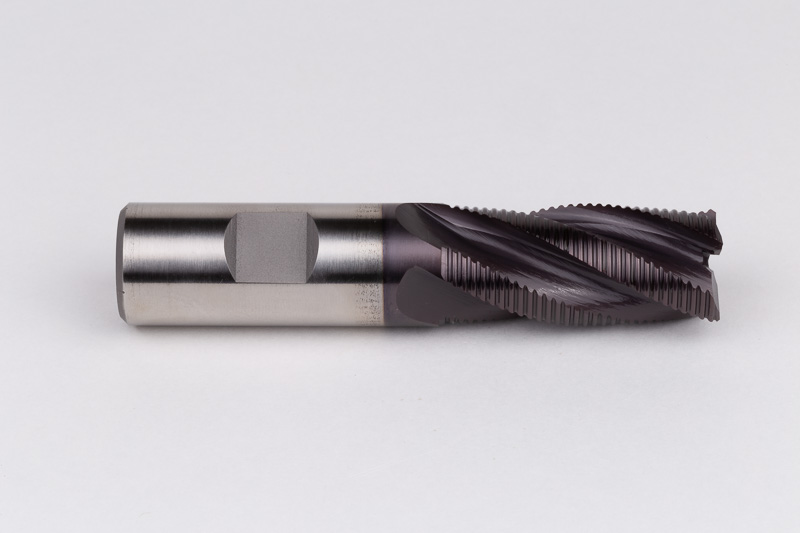

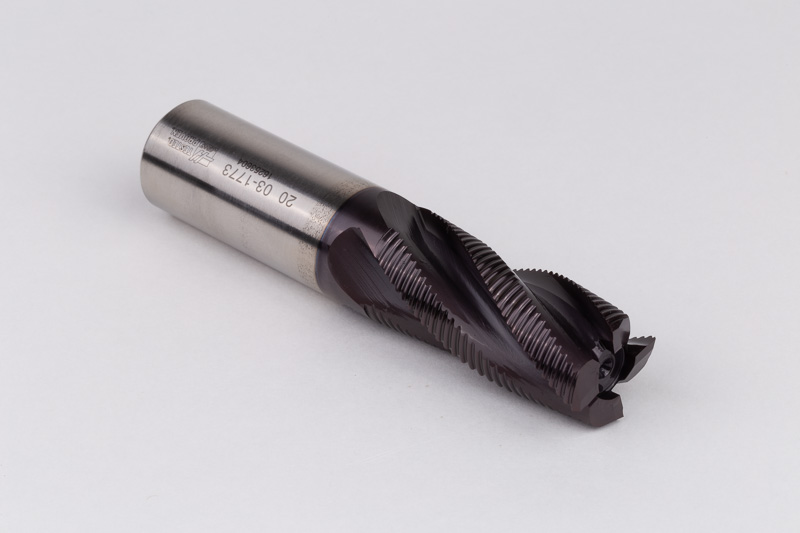

This FPR 4-flute HSSCo8 (M42) cobalt roughing end mill has a 20mm cutting diameter, with a 20mm weldon shank, 42mm length of cut (LOC), 0.76mm chamfer, and a 95mm overall length. It is TiAlN coated, and made to cut steel, but is capable of cutting some grades of a luminum/non-ferrous materials. This roughing end mill is NOT designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
Secondary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Metric - ISO |
Haas Milling Series | FPR |
Material | HSSCo8 (M42) |
Coating | TiAlN |
Corner Type | Chamfer |
Shank Type | Weldon |
[ØDC] Cutting Diameter | 20.0 mm |
[ØDMM] Shank Diameter | 20.0 mm |
[LOC] Length Of Cut | 42.0 mm |
[OAL] Overall Length | 95.0 mm |
[NOF] Number of Flutes | 4 |
[CHW\RE] Chamfer \ Radius Size | 0.76 mm |
[FHA°] Helix Angle | 30 |
Cutting Direction | Right |
Center Cutting | No |
Variable Pitch | No |
Through Spindle Coolant | No |
Weight | 0.5 lbs \ 0.2 kg |
Country of Origin | South Korea |
Technical Images

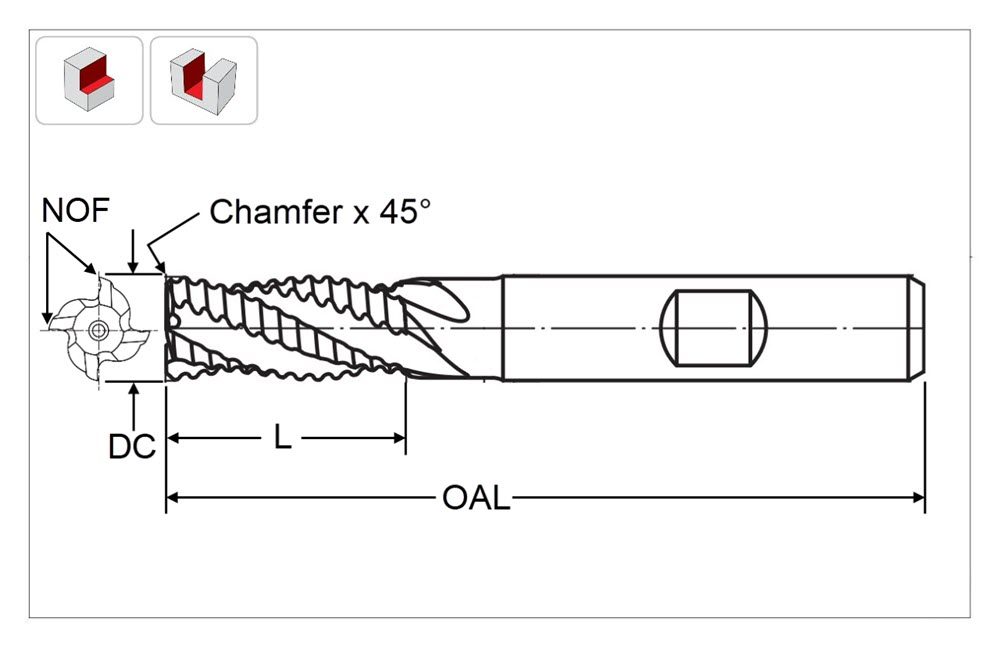

Enlarge Line Drawing & Specs
