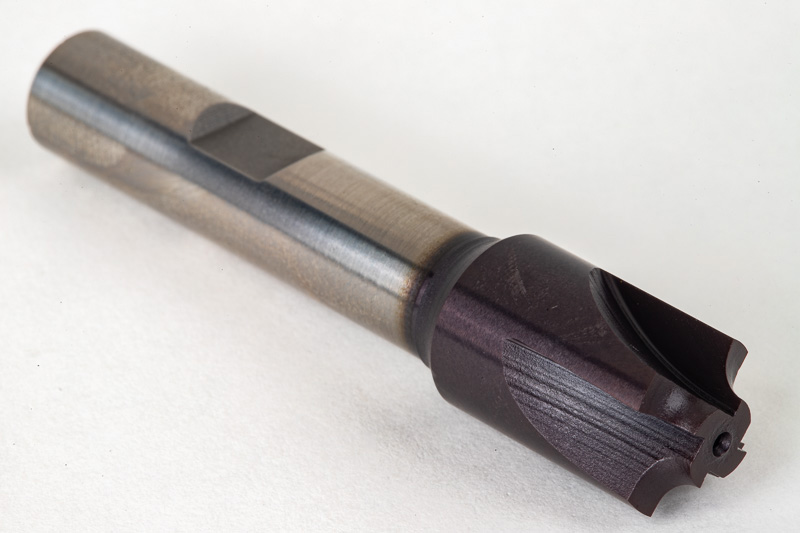

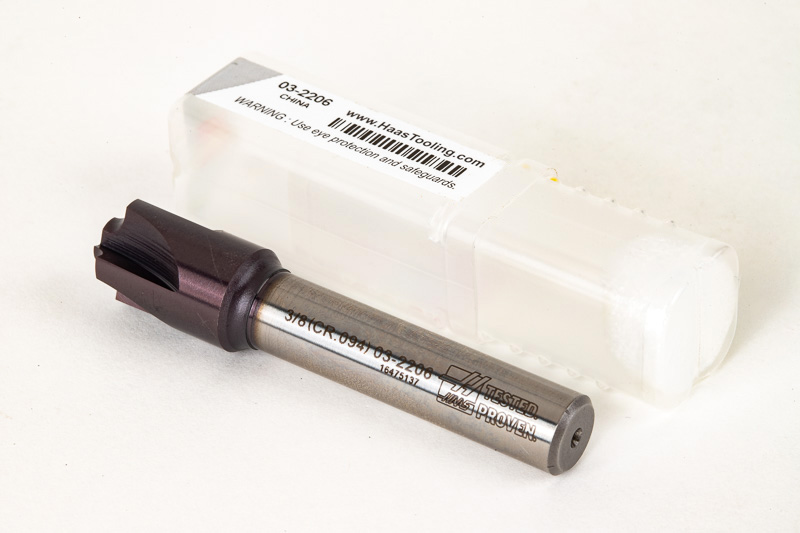

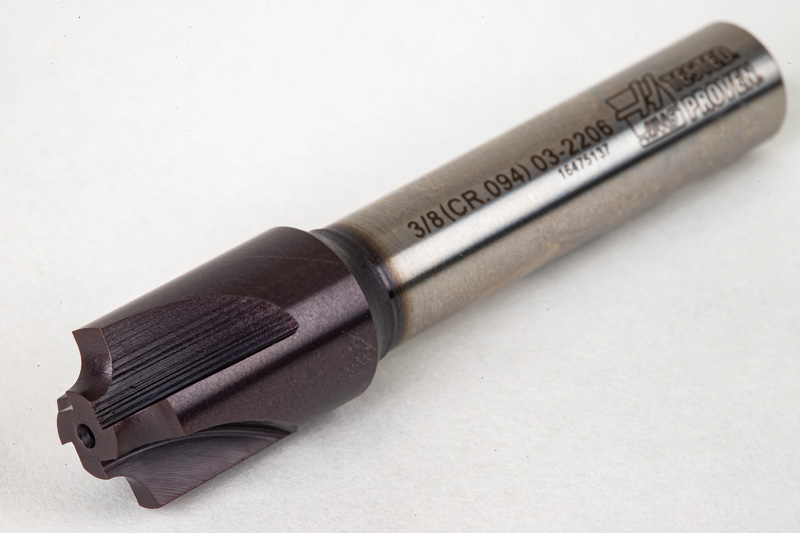

3/32" Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 3/8" Weldon Shank x 2-1/2" Overall Length

Part # 03-2206CREM 4FL 1/2 (CR.094)X3/8X2-1/2" TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 0.0938 in \ 3/32" corner radius, with a 3/8" weldon shank, 1/2" outer diameter, 1/4" pilot diameter, and a 2-1/2" overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Inch - ANSI

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

0.09375 in \ 3/32"

[ØOD] Outer Diameter

0.5 in

[ØPD] Pilot Diameter

0.25 in

[ØDMM] Shank Diameter

0.375 in

[OAL] Overall Length

2.5 in

[PL] Point Length

0.093 - 0.103 in

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.1 lb \ 0.1 kg

Country of Origin

China
Technical Images
Enlarge Line Drawing & Specs
