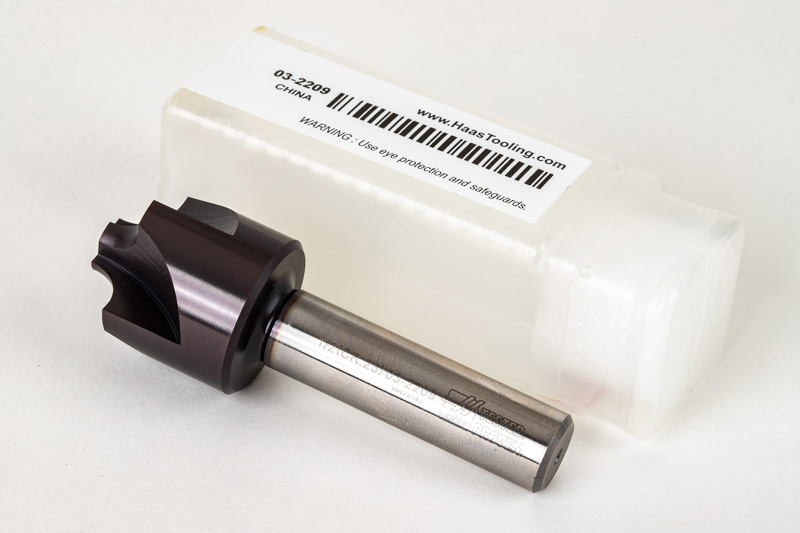

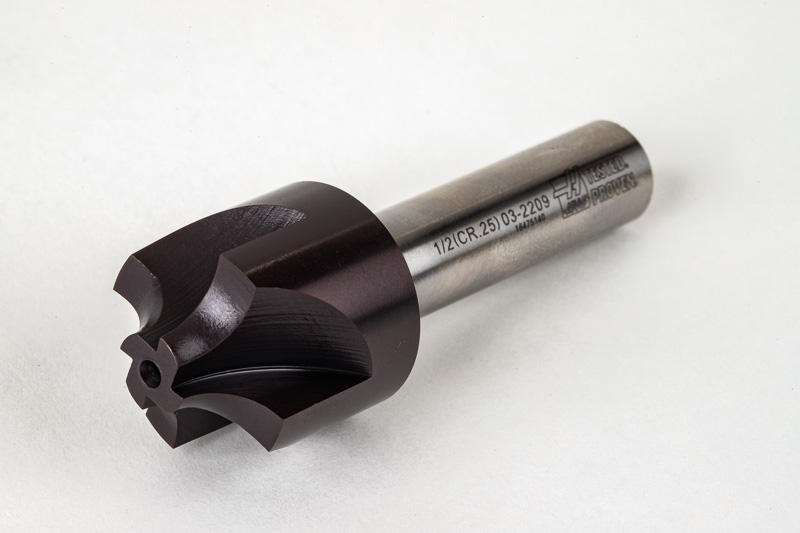

1/4" Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 1/2" Weldon Shank x 3" Overall Length

Part # 03-2209CREM 4FL 1(CR.25)X1/2X3" TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 0.25 in \ 1/4" corner radius, with a 1/2" weldon shank, 1" outer diameter, 3/8" pilot diameter, and a 3" overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Inch - ANSI

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

0.25 in \ 1/4"

[ØOD] Outer Diameter

1.0 in

[ØPD] Pilot Diameter

0.375 in

[ØDMM] Shank Diameter

0.5 in

[OAL] Overall Length

3.0 in

[PL] Point Length

0.250 - 0.264 in

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.3 lb \ 0.1 kg

Country of Origin

China
Technical Images
Enlarge Line Drawing & Specs
