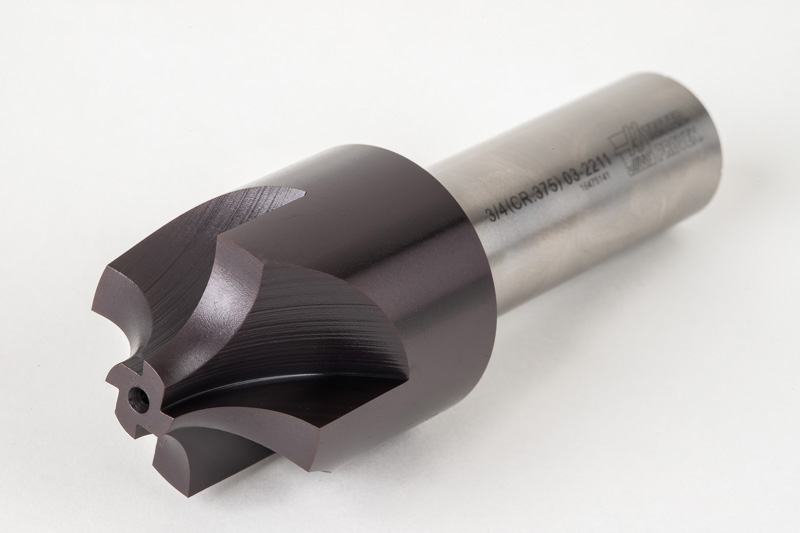

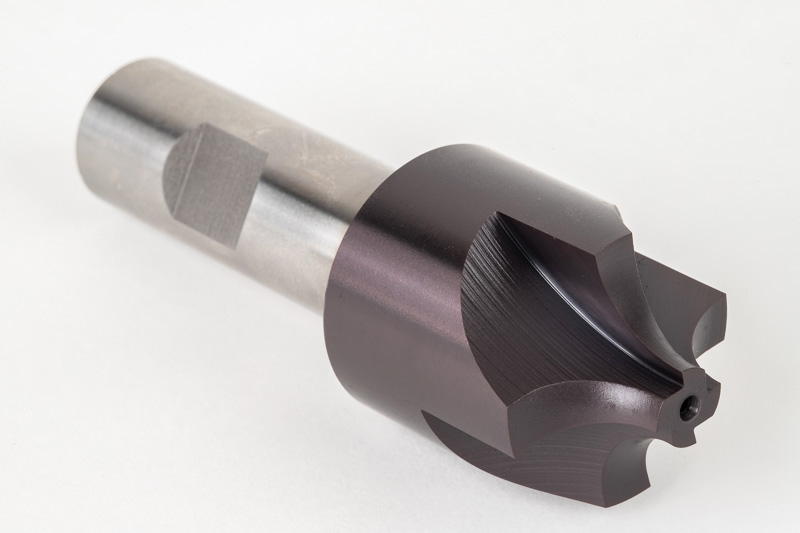

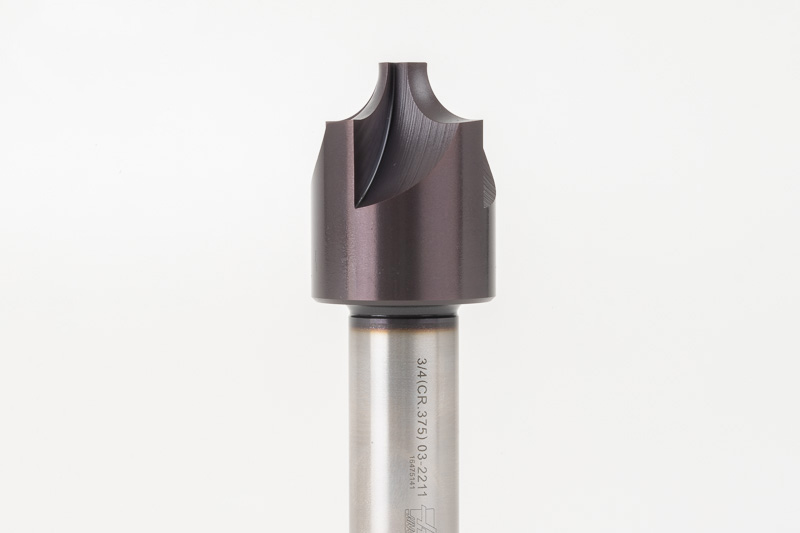

3/8" Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 3/4" Weldon Shank x 3-3/4" Overall Length
Part # 03-2211CREM 4FL 1-1/4(CR.375)X3/4X3-3/4" TIALN
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 0.375 in \ 3/8" corner radius, with a 3/4" weldon shank, 1-1/4" outer diameter, 3/8" pilot diameter, and a 3-3/4" overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Material | HSSCo8 (M42) |
Coating | TiAlN |
Shank Type | Weldon |
[RE] Radius Size | 0.375 in \ 3/8" |
[ØOD] Outer Diameter | 1.25 in |
[ØPD] Pilot Diameter | 0.375 in |
[ØDMM] Shank Diameter | 0.75 in |
[OAL] Overall Length | 3.75 in |
[PL] Point Length | 0.375 - 0.389 in |
[NOF] Number of Flutes | 4 |
Cutting Direction | Right |
Through Spindle Coolant | No |
Weight | 0.6 lb \ 0.3 kg |
Country of Origin | China |
Technical Images

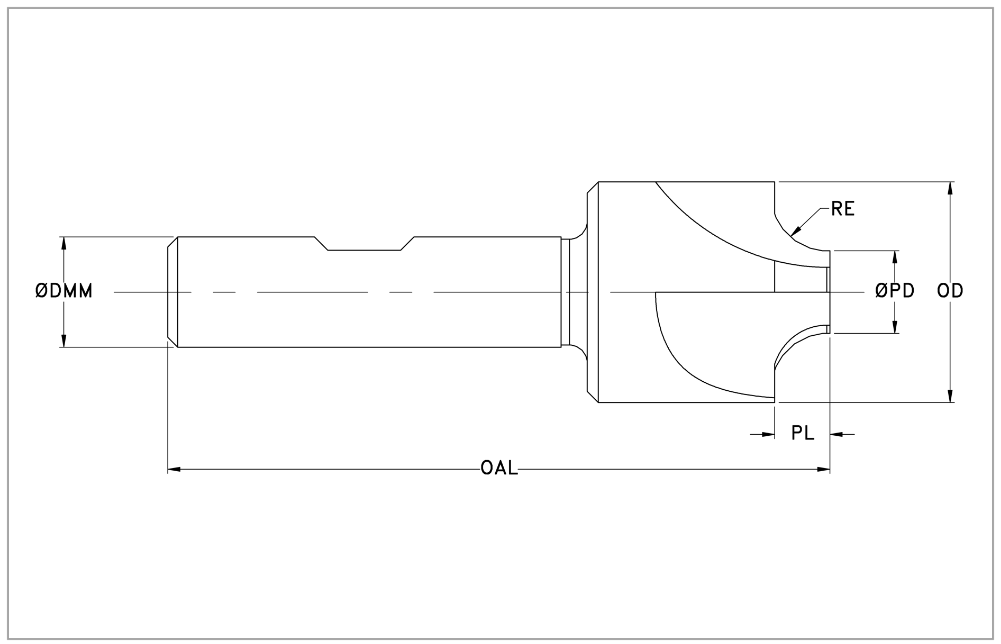

Enlarge Line Drawing & Specs
