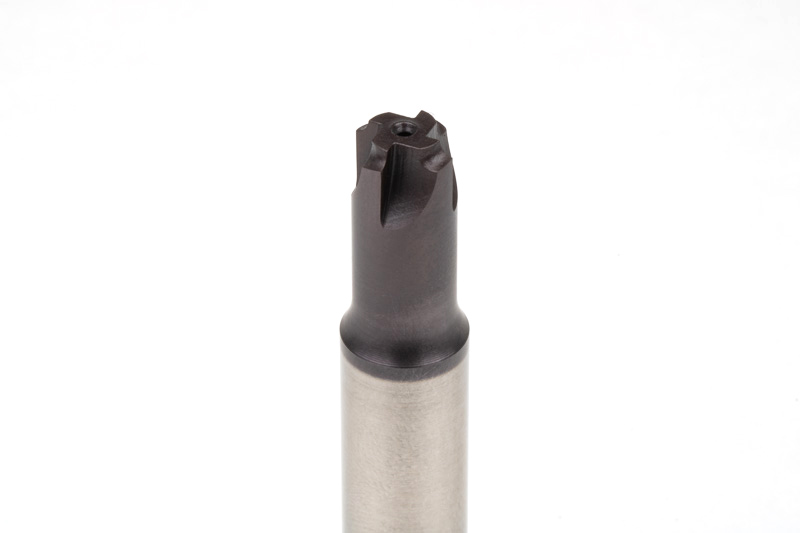

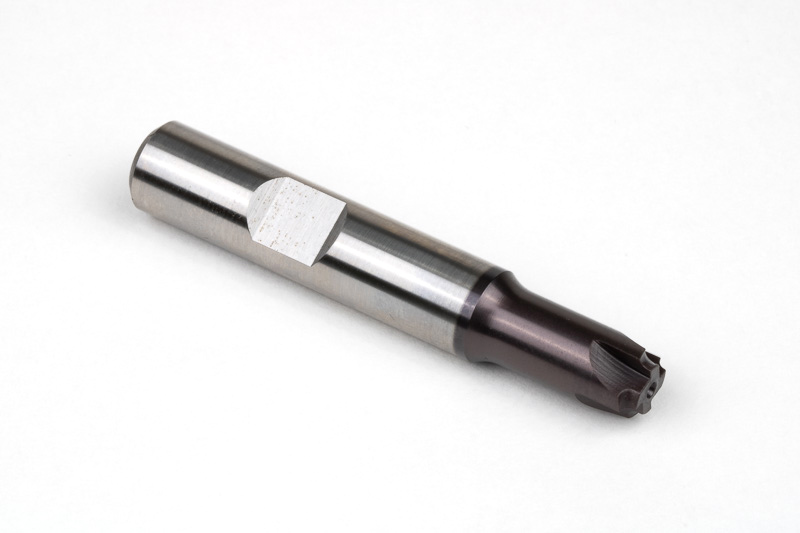

1mm Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 10mm Weldon Shank x 60mm Overall Length

Part # 03-2213CREM 4FL 10(CR1)X8X60 TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 1mm corner radius, with a 10mm weldon shank, 8mm outer diameter, 6mm pilot diameter, and a 60mm overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Metric - ISO

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

1.0 mm

[ØOD] Outer Diameter

 8.0 mm

[ØPD] Pilot Diameter

6.0 mm

[ØDMM] Shank Diameter

 10.0 mm

[OAL] Overall Length

 60.0 mm

[PL] Point Length

1.0 - 1.25 mm

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.1 lb \ 0.1 kg

Country of Origin

China
Technical Images

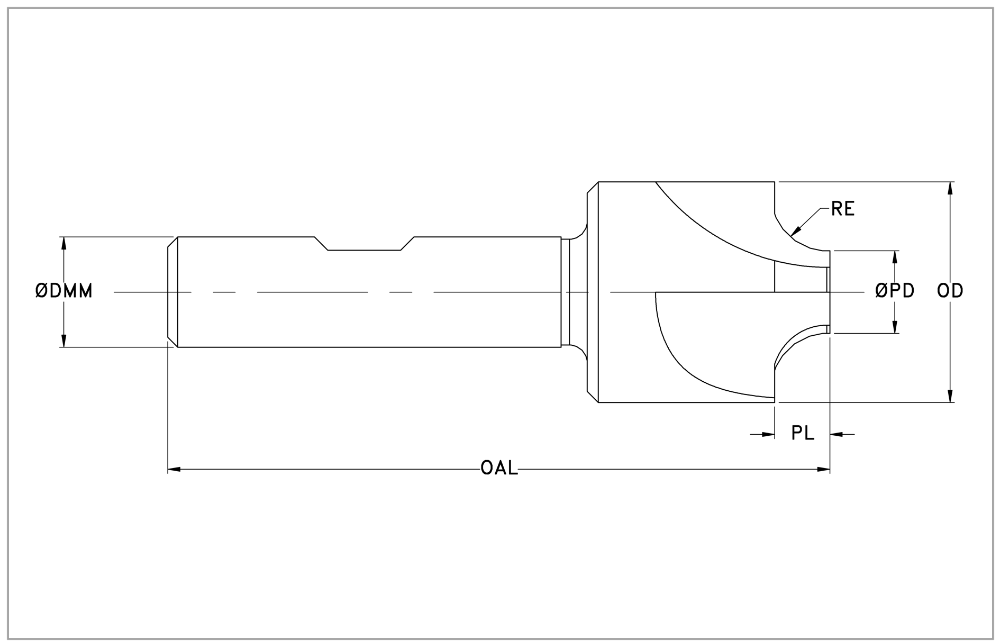

Enlarge Line Drawing & Specs
