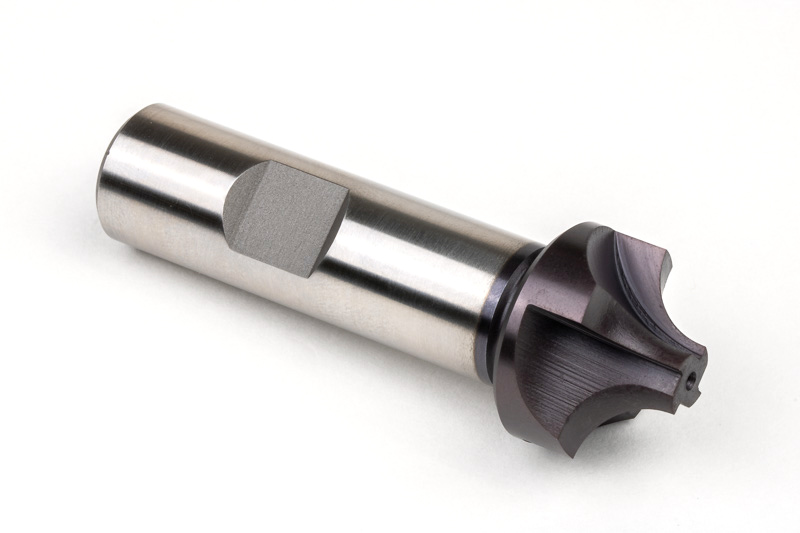

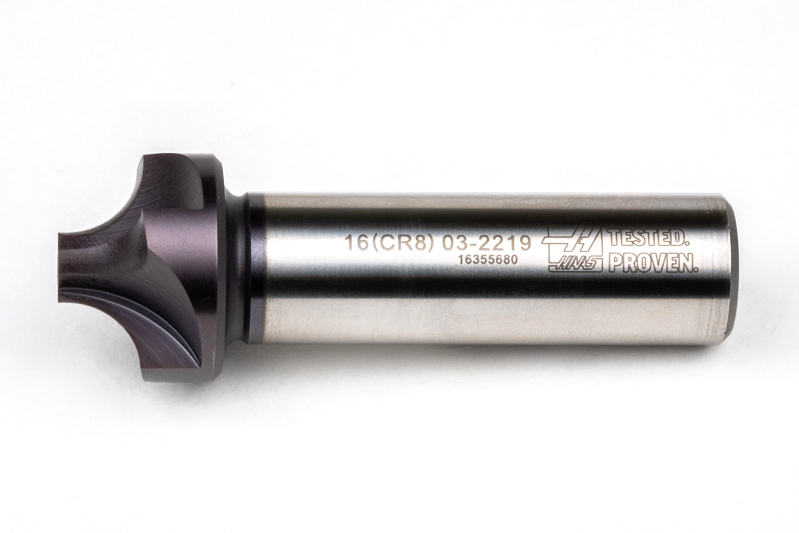

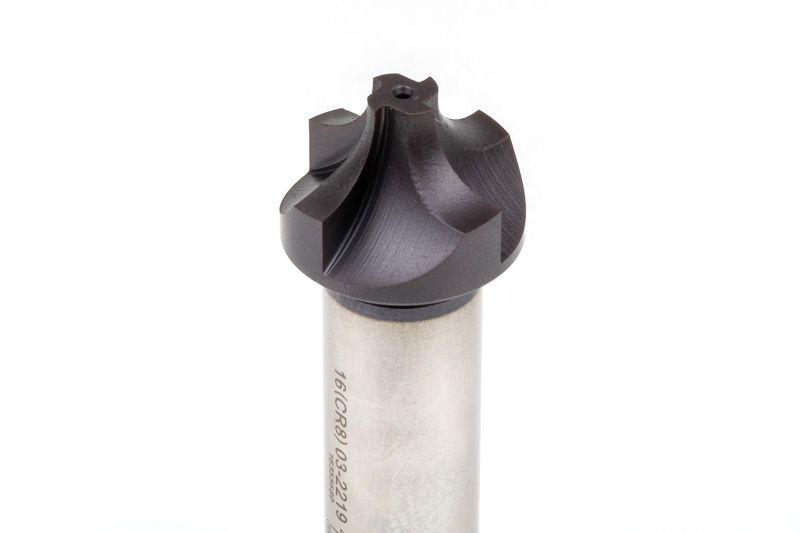

8mm Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 16mm Weldon Shank x 71mm Overall Length

Part # 03-2219CREM 4FL 16(CR8)X24X71 TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 8mm corner radius, with a 16mm weldon shank, 24mm outer diameter, 8mm pilot diameter, and a 71mm overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Metric - ISO

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

8.0 mm

[ØOD] Outer Diameter

 24.0 mm

[ØPD] Pilot Diameter

8.0 mm

[ØDMM] Shank Diameter

 16.0 mm

[OAL] Overall Length

 71.0 mm

[PL] Point Length

8.0 - 8.36 mm

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.3 lb \ 0.1 kg

Country of Origin

China
