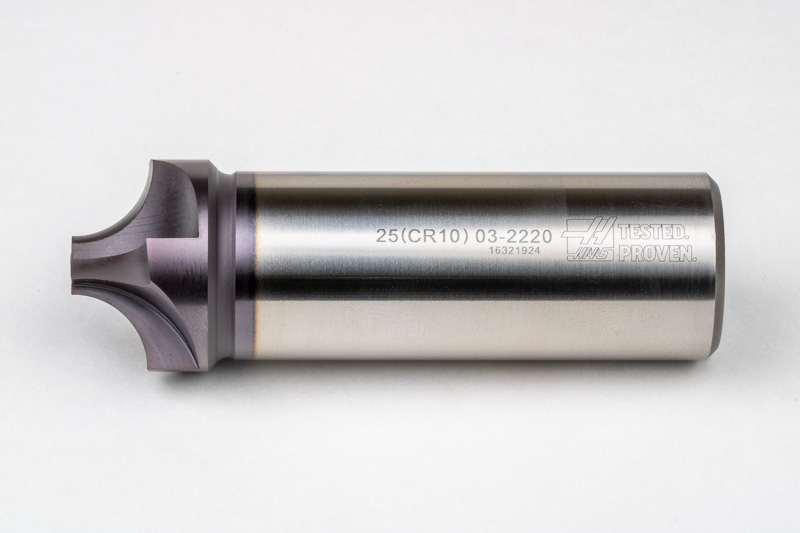

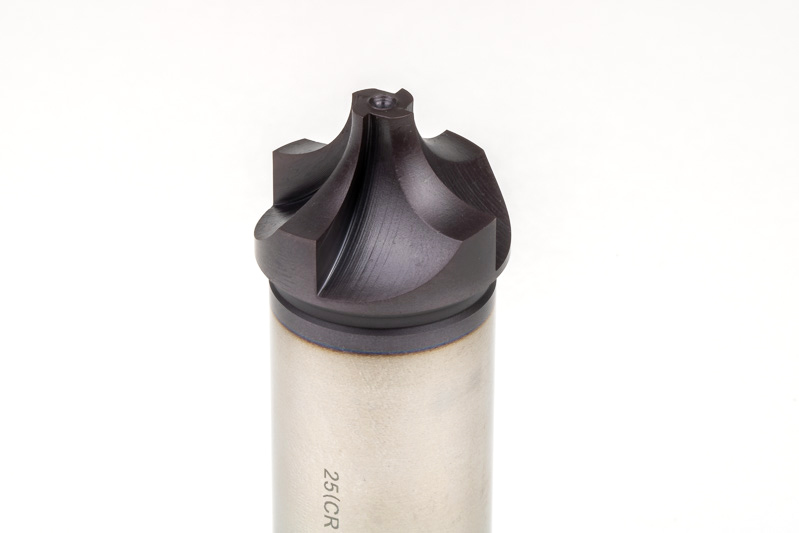

10mm Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 25mm Weldon Shank x 85mm Overall Length

Part # 03-2220CREM 4FL 25(CR10)X28X85 TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 10mm corner radius, with a 25mm weldon shank, 28mm outer diameter, 8mm pilot diameter, and a 85mm overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Metric - ISO

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

10.0 mm

[ØOD] Outer Diameter

 28.0 mm

[ØPD] Pilot Diameter

8.0 mm

[ØDMM] Shank Diameter

 25.0 mm

[OAL] Overall Length

 85.0 mm

[PL] Point Length

10.0 - 10.36 mm

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.7 lb \ 0.3 kg

Country of Origin

China
Technical Images
Enlarge Line Drawing & Specs
