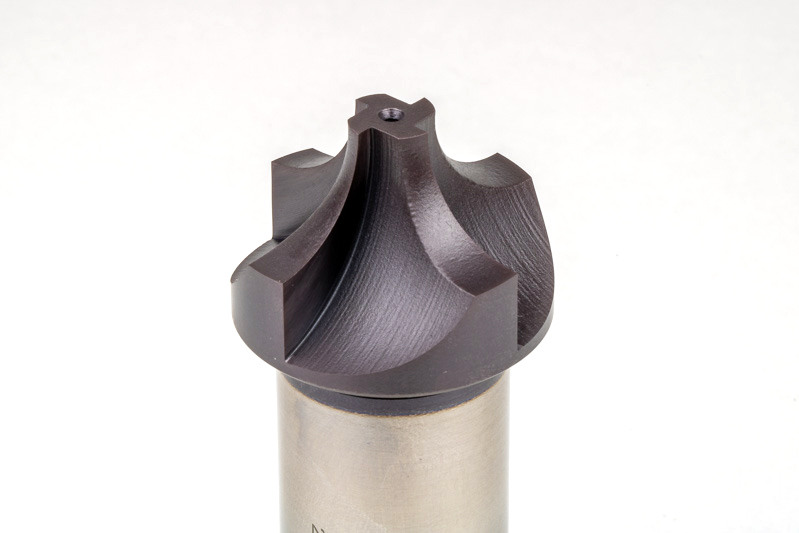

12mm Radius Cobalt Corner Rounding End Mill, 4 Flute, TiAlN Coated, 25mm Weldon Shank x 90mm Overall Length

Part # 03-2221CREM 4FL 25(CR12)X34X90 TIALN
* All prices and specifications subject to change without notice. Actual product appearance & included accessories may differ.
Description
This 4-flute HSSCo8 (M42) cobalt corner rounding end mill has a 12mm corner radius, with a 25mm weldon shank, 34mm outer diameter, 10mm pilot diameter, and a 90mm overall length. It is TiAlN coated, and made to cut steel and aluminum/non-ferrous materials.
HOW TO USE THIS PRODUCT?
Speeds & Feeds
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
N - Aluminum
Technical specifications

System of Measurement

Metric - ISO

Material

HSSCo8 (M42)

Coating

TiAlN

Shank Type

Weldon

[RE] Radius Size

12.0 mm

[ØOD] Outer Diameter

 34.0 mm

[ØPD] Pilot Diameter

10.0 mm

[ØDMM] Shank Diameter

 25.0 mm

[OAL] Overall Length

 90.0 mm

[PL] Point Length

12.0 - 12.43 mm

[NOF] Number of Flutes

4

Cutting Direction

Right

Through Spindle Coolant

No

Weight

0.8 lb \ 0.4 kg

Country of Origin

China
Technical Images
Enlarge Line Drawing & Specs
