System of Measurement	Inch - ANSI
Drill Type	Fraction
[D1] Drill Diameter	0.5 in \ 1/2"
Material	Carbide
Chipbreaker	GP - General Purpose
Coating	TiAlN
[ØDMM] Shank Diameter	0.5 in
[LU] Usable Length	1.693 in
[LCF] Flute Length	2.362 in
[PL] Point Length	0.09 in
[OAL] Overall Length	4.213
[NOF] Number of Flutes	2
[SIG°] Point Angle	140
[FHA°] Helix Angle	30
Length / Diameter	3 X D
Hole Tolerance	h7
Cutting Direction	Right
Through Spindle Coolant	Yes
Weight	0.3 lbs \ 0.1 kg
Country of Origin	South Korea

Shop Tooling

1/2" Ø Carbide Drill, 1/2" Shank x 140° Point Angle x 30° Helix, 3XD, 2 Flute, TiALN Coated, GP, TSC

HOW TO USE THIS PRODUCT?

Download documents

Iso Material Chart

Technical specifications

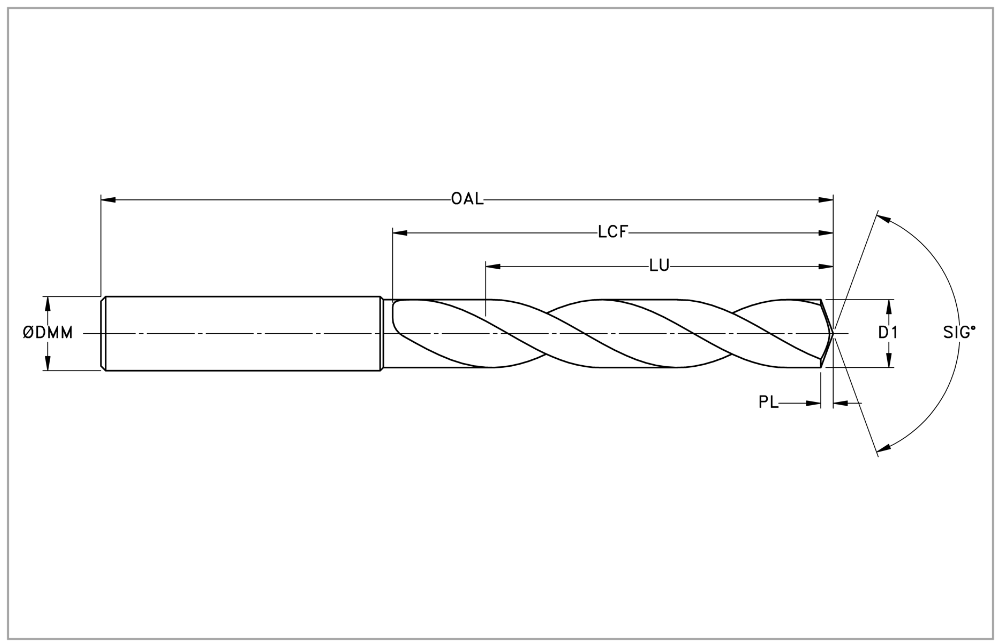

Technical Images
