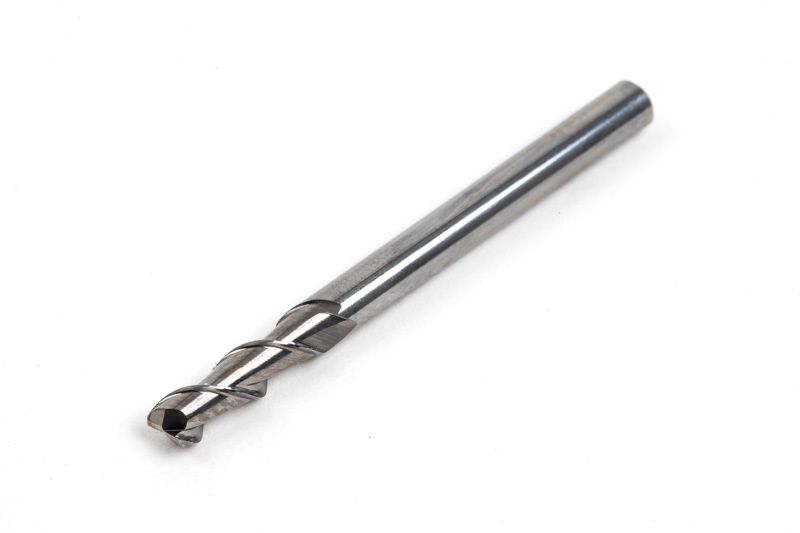

1/8" Ø Carbide End Mill, 2 Flute, Uncoated, 1/8" Shank x 3/8" LOC, 0.015" Radius, HSAM3
Part # 03-2955EM 2FL 1/8(R.015)x1/8x3/8x1-1/2"
Description
This HSAM3 2-flute carbide end mill has a 0.125 in \ 1/8" cutting diameter, with a 1/8" smooth shank, 3/8" length of cut (LOC), 0.015" radius and a 1-1/2" overall length. It is uncoated and is made to cut aluminum/non-ferrous materials. This end mill is designed to center-cut.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
N - Aluminum
Technical specifications
System of Measurement | Inch - ANSI |
Haas Milling Series | HSAM3 |
Material | Carbide |
Coating | Uncoated |
Corner Type | Radius |
Shank Type | Smooth |
Length Type | Standard |
[ØDC] Cutting Diameter | 0.125 in \ 1/8" |
[ØDMM] Shank Diameter | 0.125 in |
[LOC] Length Of Cut | 0.375 in |
[OAL] Overall Length | 1.5 in |
[NOF] Number of Flutes | 2 |
[CHW\RE] Chamfer \ Radius Size | 0.015 in |
[FHA°] Helix Angle | 45° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | No |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 0.1 lbs \ 0.1 kg |
Country of Origin | South Korea |
Technical Images
Enlarge Line Drawing & Specs
