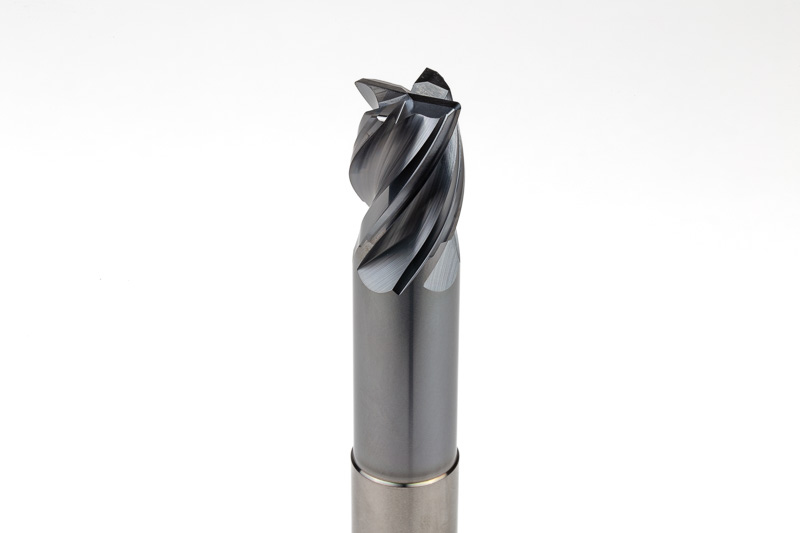

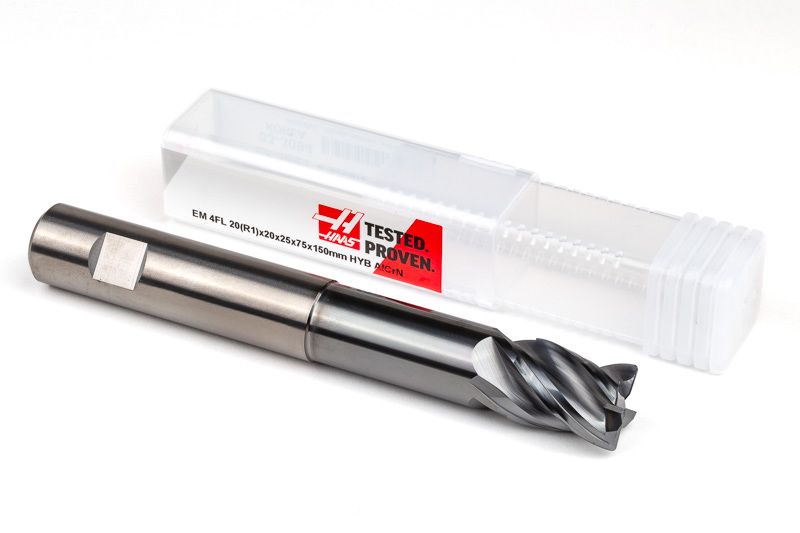

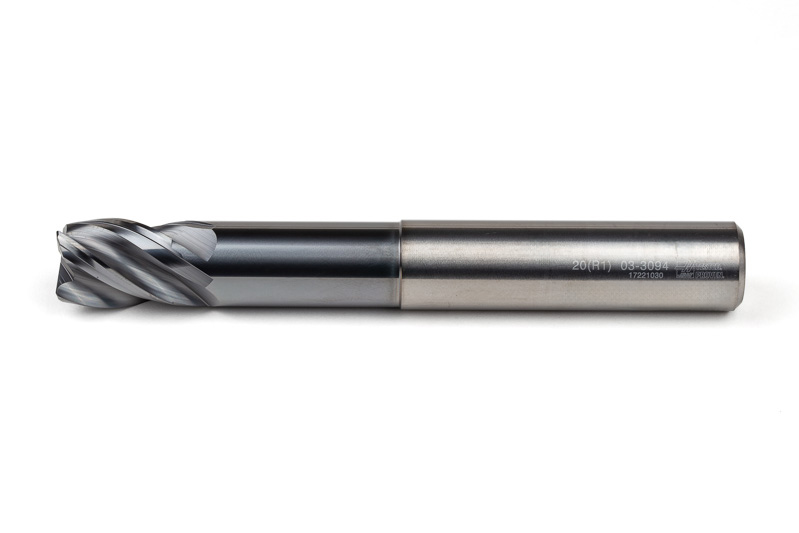

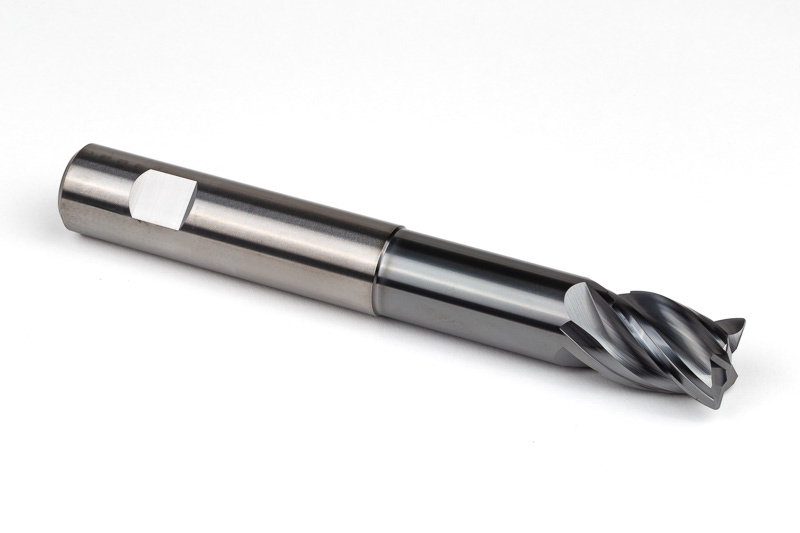

20mm Ø Long Carbide End Mill, 4 Flute, Hybrid AlCrN Coated, 20mm Shank x 25mm LOC x 75mm Neck Length, 1mm Radius, HSPM2
Part # 03-3094EM 4FL 20(R1)x20x25x75x150mm HYB AlCrN
Description
This HSPM2 4-flute long carbide end mill has a 20mm cutting diameter, with a 20mm weldon shank, 25mm length of cut (LOC), 1mm radius and a 150mm overall length. The extended shank tapers down to a 19mm neck diameter, with a 75mm neck length. It is hybrid AlCrN coated and is made to cut steel, stainless steel, and cast iron, but is capable of cutting some grades of high-temp. alloys. This end mill is designed to center-cut, and the unique, variable pitch configuration helps to reduce unwanted harmonics and vibrations.HOW TO USE THIS PRODUCT?
Download documents
Iso Material Chart
Primary Workpiece Material
P - Steel
M - Stainless Steel
K - Cast Iron
Secondary Workpiece Material
S - High Temp Alloys
Technical specifications
System of Measurement | Metric - ISO |
Haas Milling Series | HSPM2 |
Material | Carbide |
Coating | Hybrid AlCrN |
Corner Type | Radius |
Shank Type | Weldon |
Length Type | Long |
[ØDC] Cutting Diameter | 20.0 mm |
[ØDMM] Shank Diameter | 20.0 mm |
[ØN] Neck Diameter | 19.0 mm |
[LN] Neck Length | 75.0 mm |
[LOC] Length Of Cut | 25.0 mm |
[OAL] Overall Length | 150.0 mm |
[NOF] Number of Flutes | 4 |
[CHW\RE] Chamfer \ Radius Size | 1.0 mm |
[FHA°] Helix Angle | 35° / 37° |
Cutting Direction | Right |
Center Cutting | Yes |
Variable Pitch | Yes |
Chip Splitter | No |
Through Spindle Coolant | No |
Weight | 1.3 lbs \ 0.6 kg |
Country of Origin | South Korea |
Technical Images

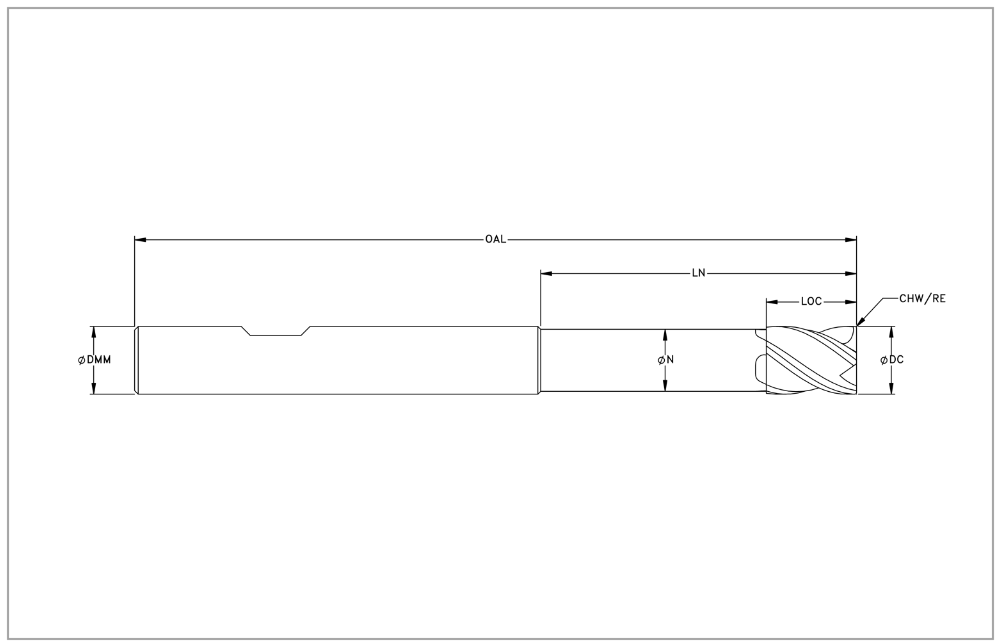

Enlarge Line Drawing & Specs
