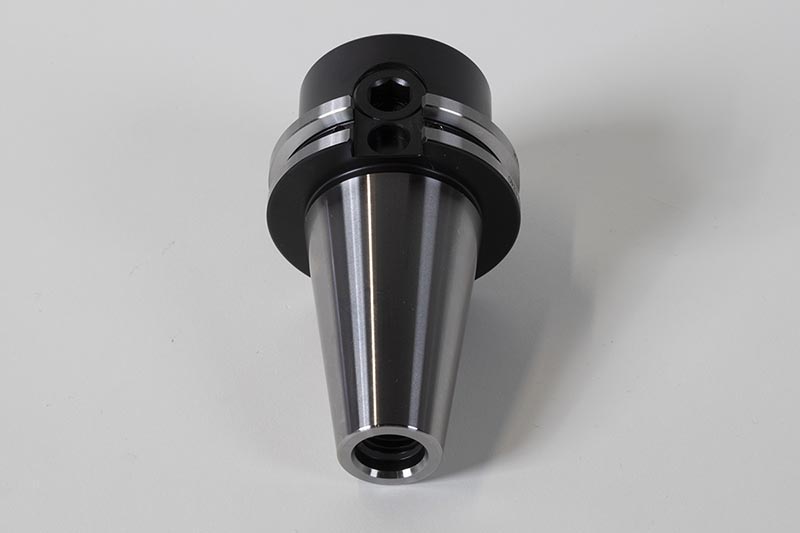

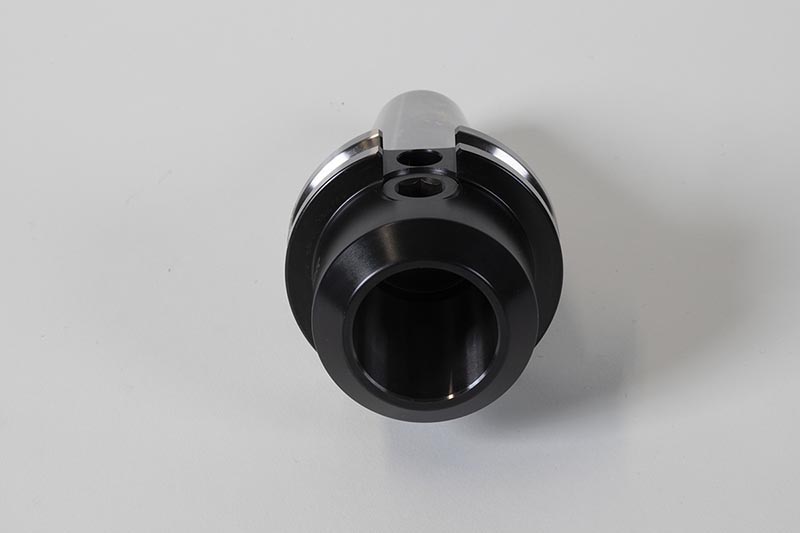

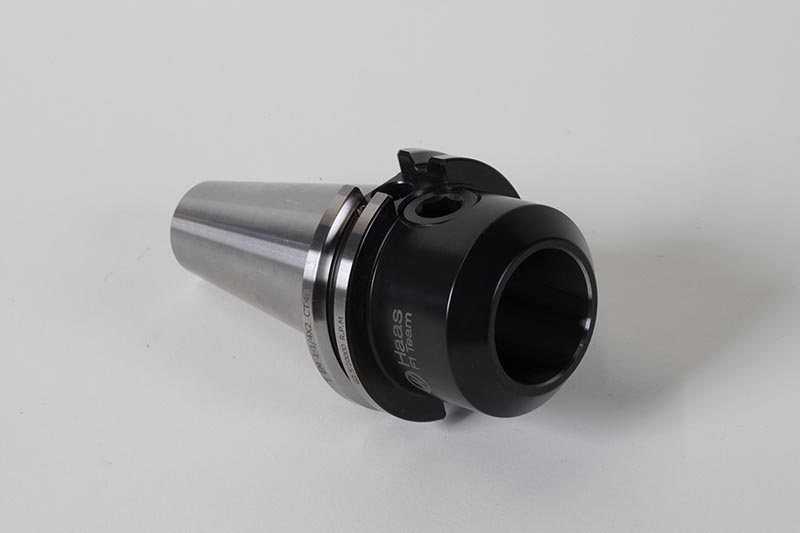

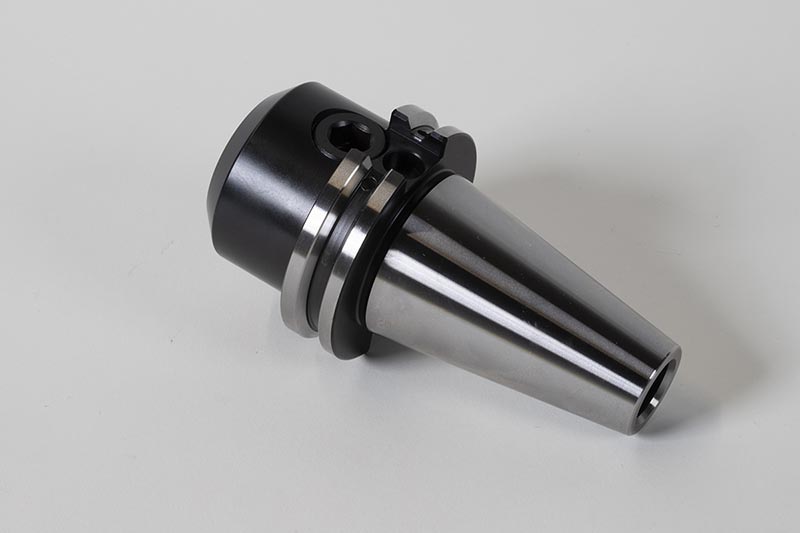

CT40 1-1/4" End Mill Holder x 2" Gage Length, TSC
Part # 04-0002CT40-EM-1.25-2.0
Description
This CAT40 end mill holder has a 1.25 in \ 1-1/4" bore diameter and a 2" gage length. It uses the Weldon flat standard with side-lock clamping for secure clamping of cutting tools. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT40 |
[ØD] Bore Diameter | 1.25 in \ 1-1/4" |
[ØBD] Body Diameter | 2.25 in |
[ØBD2] Minimum Body Diameter | 1.91 in |
[GL] Gage Length | 2.0 in |
[BL] Body Length | 1.25 in |
[TP1_L] Thread Location | 1.125 in |
[TP1] Thread | 3/4"-16 |
Concentricity | 0.0002 in |
Balanced to RPM | 20000 |
Bore Tolerance | H5 |
Retention Knob Thread Size | 5/8"-11 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 2.2 lbs \ 1.0 kg |
Country of Origin | China |
Technical Images

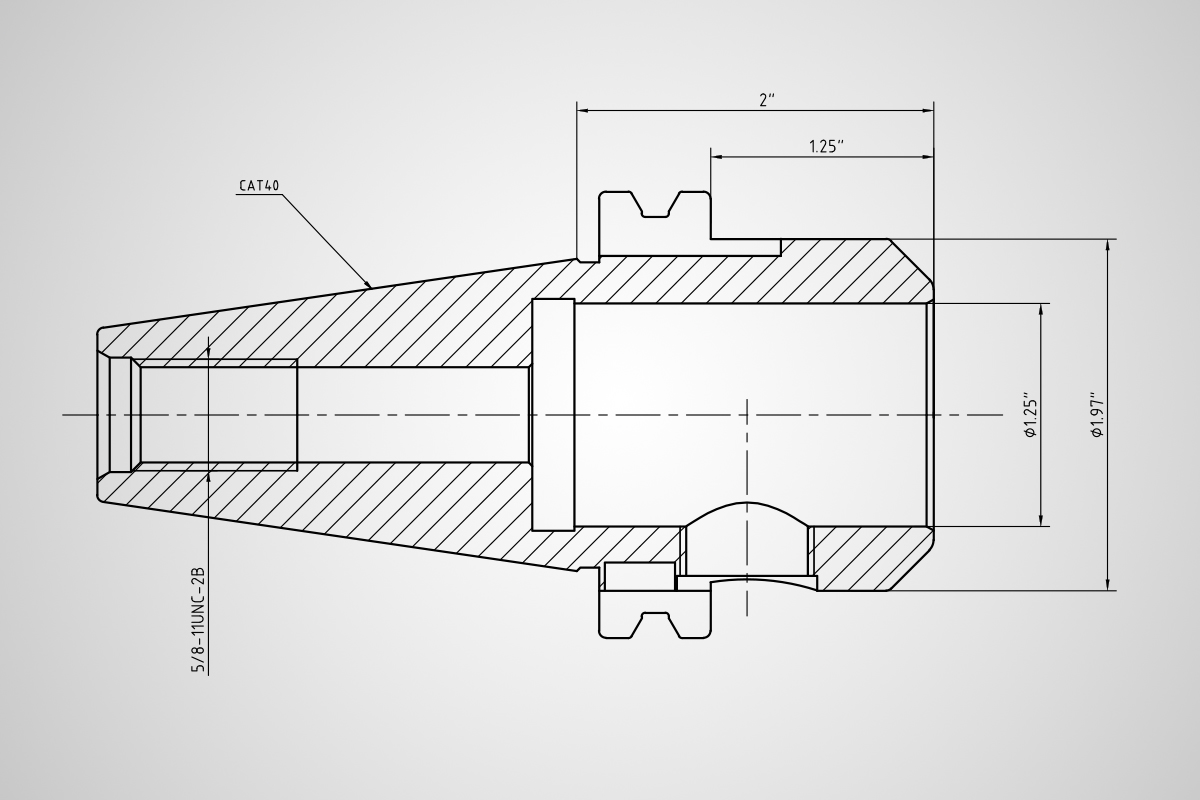

Enlarge Line Drawing & Specs
