CT40 ER16 Collet Chuck x 2-1/2" Gage Length, TSC
Part # 04-0006C40-ER16-2.5
Description
This CAT40 ER16 collet chuck accepts a variety of ER16 collet styles, and has a 2-1/2" gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread.Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT40 |
Collet Series | ER-16 |
[ØBD] Body Diameter | 1.1 in |
[GL] Gage Length | 2.5 in |
[BL] Body Length | 1.12 in |
Concentricity | 0.0003 in |
Balanced to RPM | 20000 |
Retention Knob Thread Size | 5/8"-11 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 2.4 lbs \ 1.1 kg |
Country of Origin | China |
Technical Images

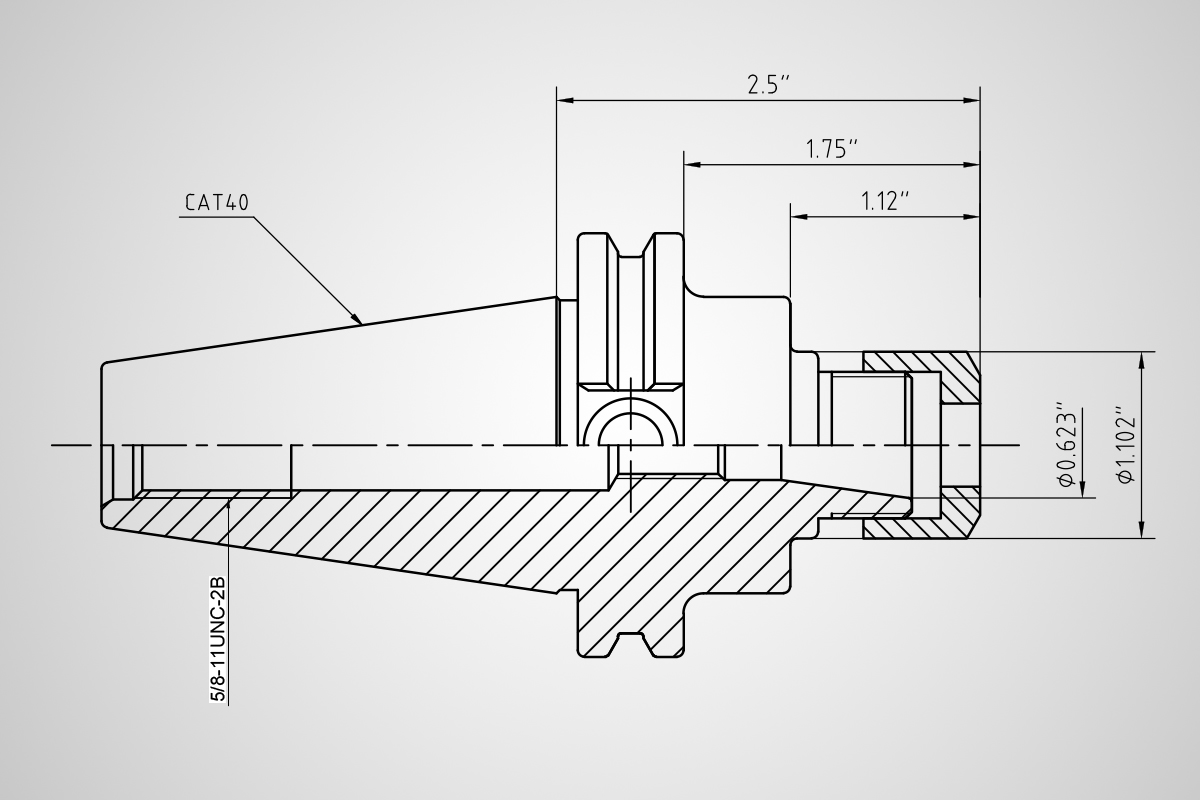

Enlarge Line Drawing & Specs
