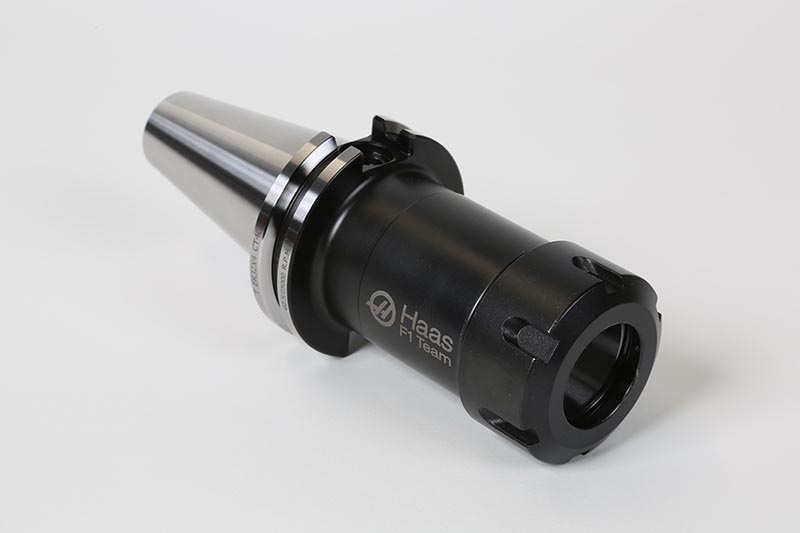

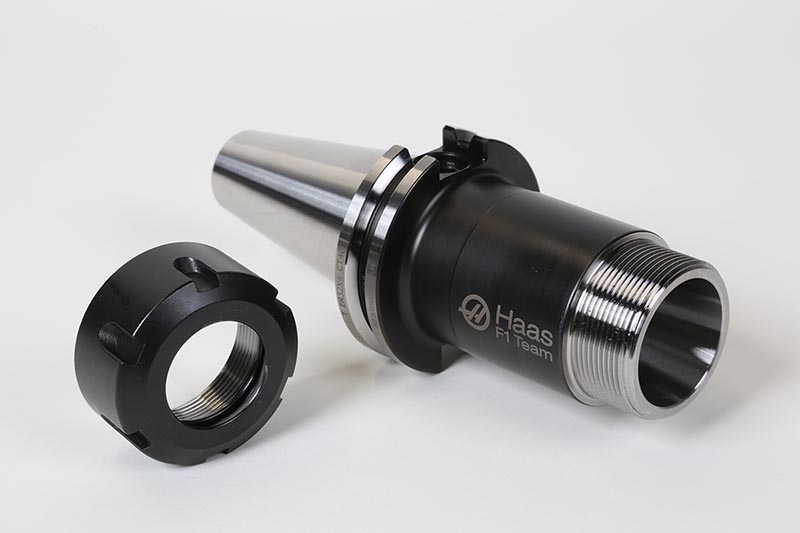

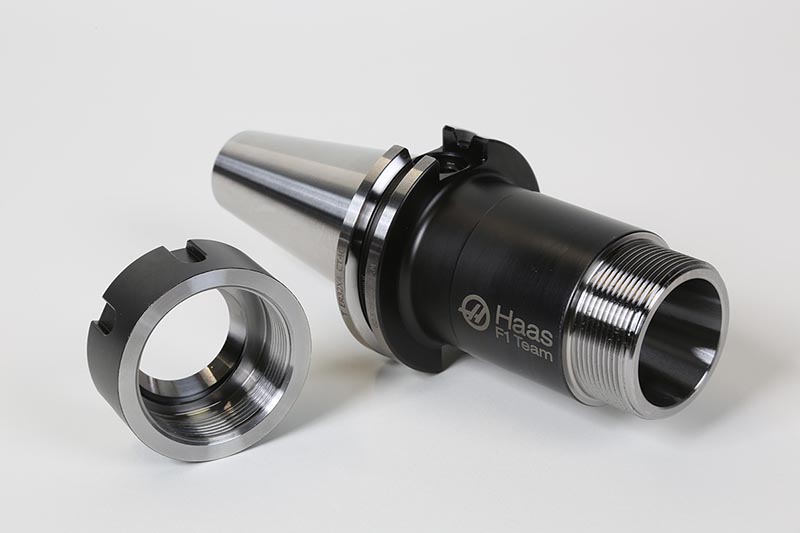

CT40 ER32 Collet Chuck x 4" Gage Length, TSC
Part # 04-0011C40-ER32-4
Description
This CAT40 ER32 collet chuck accepts a variety of ER32 collet styles, and has a 4" gage length. The double-taper collet design provides high clamping force for round, smooth shank tools, and offers a wide gripping range with excellent TIR and balance. It is through-tool coolant (TSC) capable, with a 5/8"-11 pull stud/retention knob thread.Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT40 |
Collet Series | ER-32 |
[ØBD] Body Diameter | 1.97 in |
[GL] Gage Length | 4.0 in |
[BL] Body Length | 3.25 in |
Concentricity | 0.0003 in |
Balanced to RPM | 20000 |
Retention Knob Thread Size | 5/8"-11 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 3.4 lbs \ 1.5 kg |
Country of Origin | China |
Technical Images

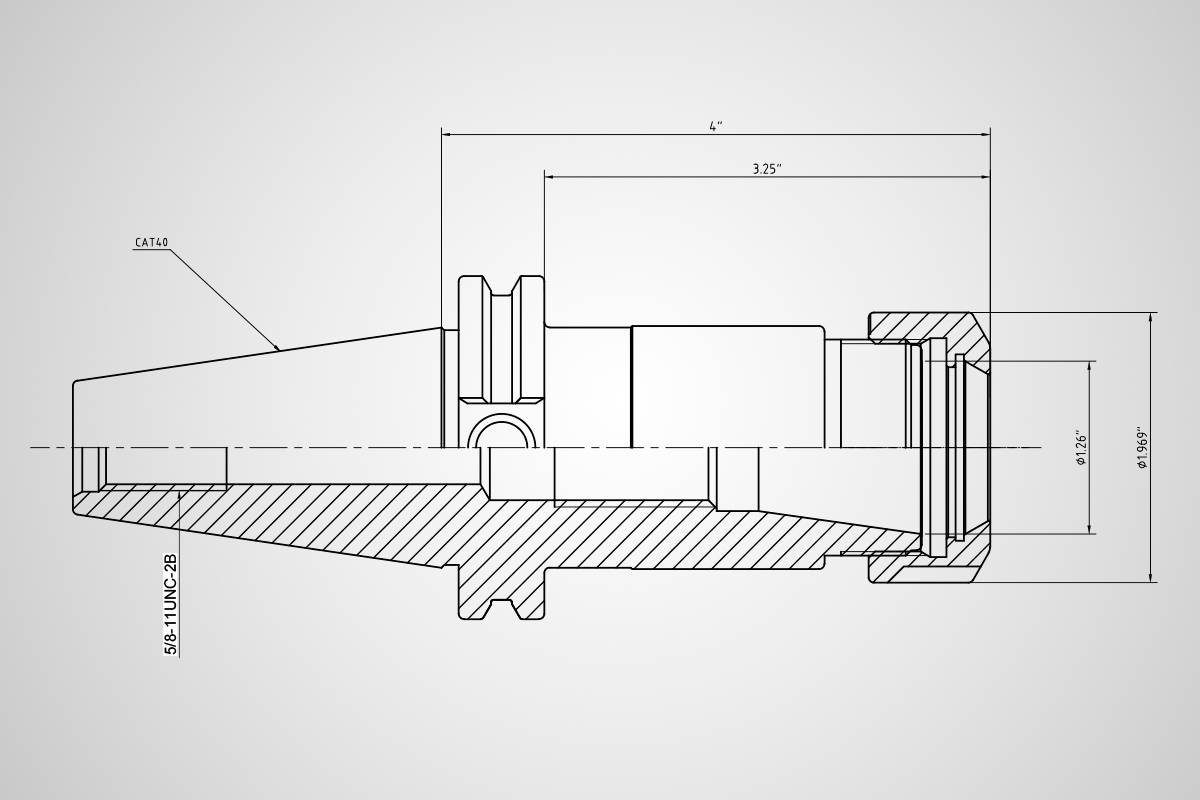

Enlarge Line Drawing & Specs
