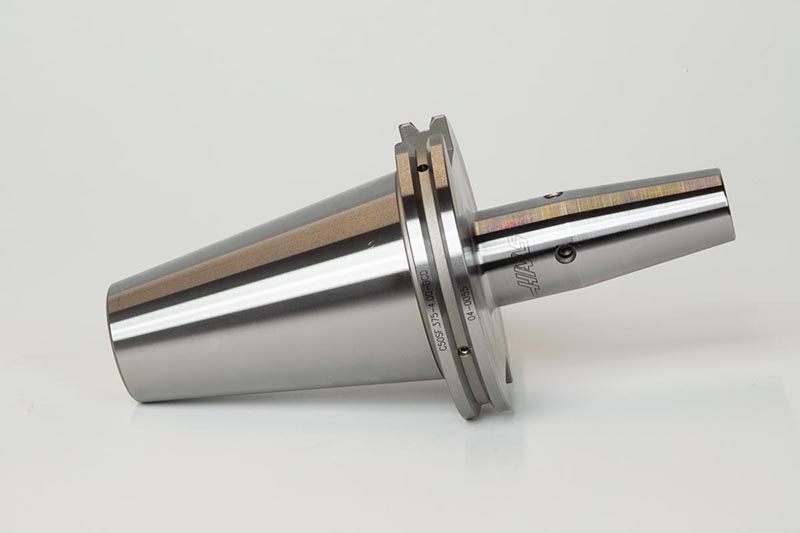

CT50 3/8" Shrink Fit Holder x 4" Gage Length, TSC
Part # 04-0055C50SF.375-4.00-BCD
Description
This CAT50 shrink fit holder has a 0.375 in \ 3/8" bore diameter, and a 4" gage length. It offers very low runout (0.0001" TIR), very high grip force, and quick tool changeovers when used in conjuction with Haas shrink fit machines. It is through-tool coolant (TSC) capable, with a 1"-8 pull stud/retention knob thread.Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | CT50 |
[ØD] Bore Diameter | 0.375 in \ 3/8" |
[ØBD2] Minimum Body Diameter | 0.945 in |
[ØBD] Maximum Body Diameter | 1.26 in |
[GL] Gage Length | 4.0 in |
[OAL] Overall Length | 8.0 in |
[LSCN] Minimum Clamping Length | 1.201 in |
[LSCX] Maximum Clamping Length | 1.673 in |
[SIG°] Angle | 4.5 ° |
Concentricity | 0.00012 in |
Balanced to RPM | 25000 |
Retention Knob Thread Size | 1"-8 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 6.7 lbs \ 3.0 kg |
Country of Origin | South Korea |
