10-Piece, ER16 Straight Bore Collet Set, 1mm - 10mm
Part # 04-0100
ER16 COLLET KIT 10 PIECE
Description

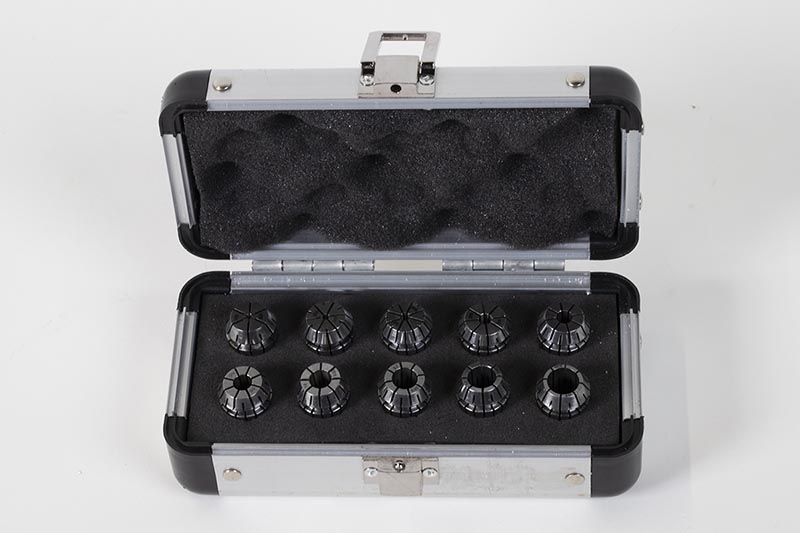

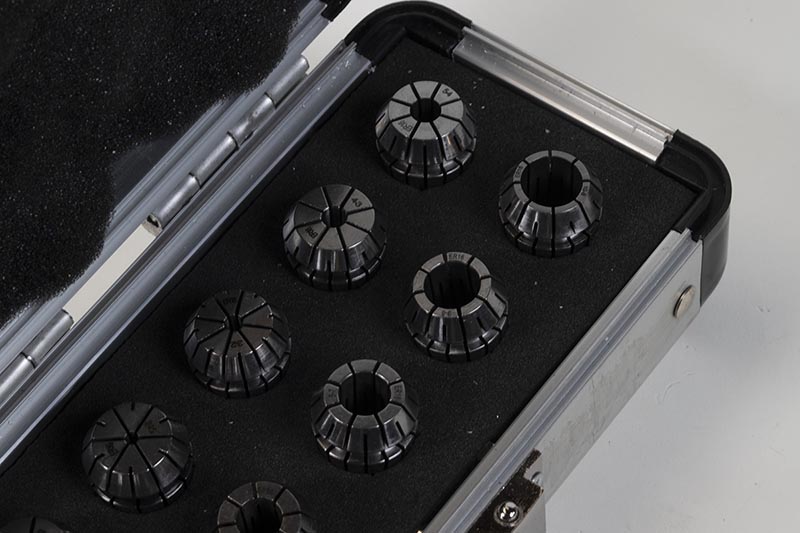

This 10-piece, ER16 metric straight-bore collet set includes sizes from 1mm to 10mm, in 1mm increments, allowing you to securely clamp round shank tools from 0.5mm to 10mm. The collets have a 0.008mm TIR, and are defined by collet class 1, per DIN ISO 15488. Included sizes: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm.
Technical specifications
System of Measurement | Metric - ISO |
Type | Single Kit |
Collet Type | Straight Bore |
Collet Series | ER-16 |
Collet Class | Class 1 |
Total Indicator Runout (TIR) | 0.008 mm |
Number of Pieces | 10 |
Proposition 65 Warnings
