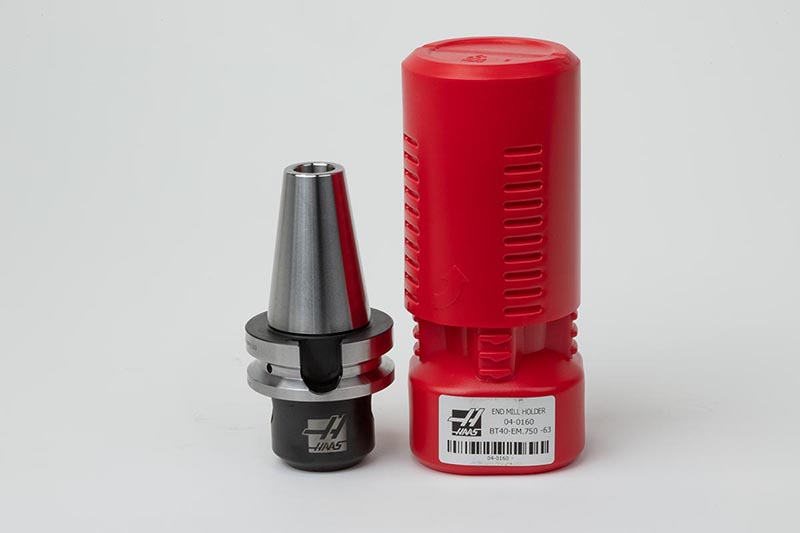

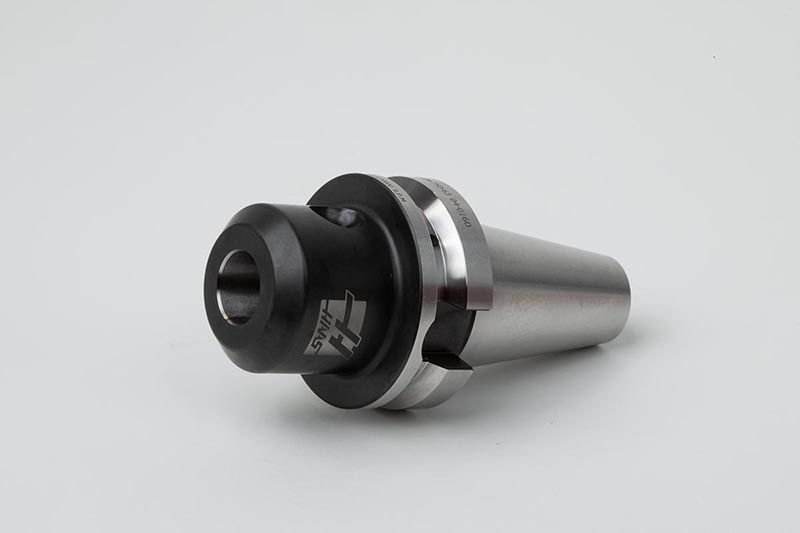

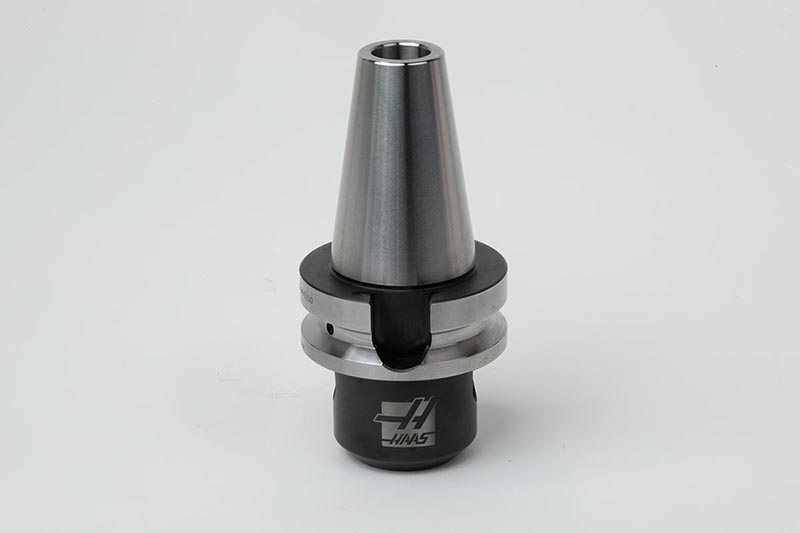

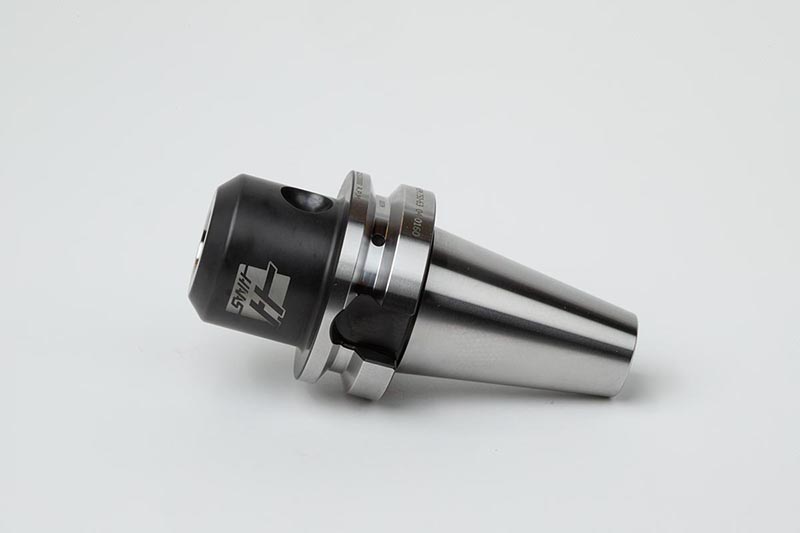

BT40 3/4" End Mill Holder x 63mm Gage Length, TSC
Part # 04-0160
BT40-EM-0.75-2.48
Description

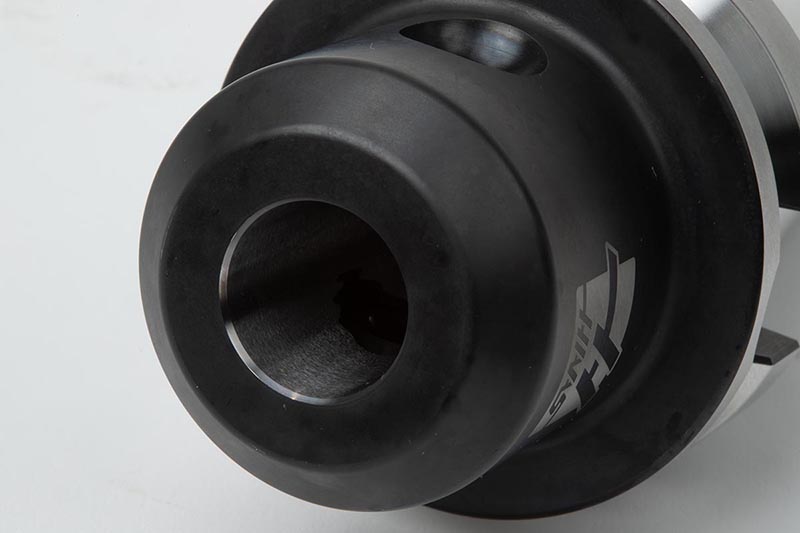

This BT40 end mill holder has a 0.75 in \ 3/4" bore diameter and a 63mm gage length. It uses the Weldon flat standard with side-lock clamping for secure clamping of cutting tools. It is through-tool coolant (TSC) capable, with a M16x2.0 pull stud/retention knob thread.
Download documents
Technical specifications
System of Measurement | Inch - ANSI |
Taper | BT40 |
[ØD] Bore Diameter | 0.75 in \ 3/4" |
[ØBD] Body Diameter | 1.75 in |
[ØBD2] Minimum Body Diameter | 1.25 in |
[GL] Gage Length | 2.48 in |
[BL] Body Length | 1.417 in |
[TP1_L] Thread Location | 1.0 in |
[TP1] Thread | 5/8"-18 |
Concentricity | 0.0002 in |
Balanced to RPM | 20000 |
Bore Tolerance | H5 |
Retention Knob Thread Size | M16X2.0 |
Through Tool Coolant | Yes |
Spindle Drive Slots | Yes |
Weight | 2.7 lbs \ 1.2 kg |
Country of Origin | China |

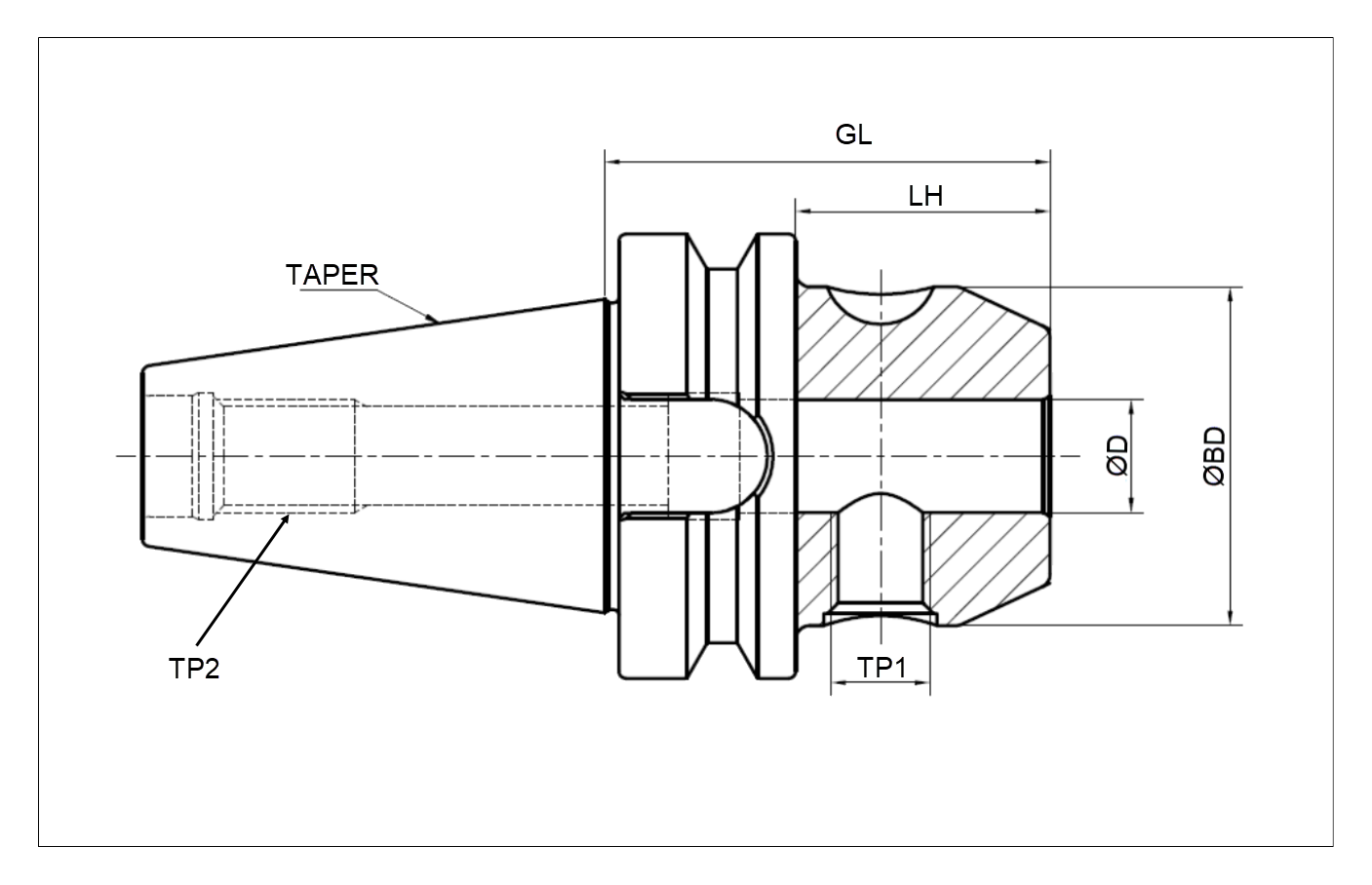

Technical Images
